Hydrostatic Pressure Testing Machine
Designed to ensure pressure resistance testing of cylinders, pipes, and hydraulic components
Applications
The JINHAIHU XGY series hydrostatic pressure testing apparatus is a robust, high-efficiency instrument dedicated to determining the hydrostatic resistance and burst strength of plastic pipes and composite piping products, including PP-R, PP-B, PP-A, PVC, PE, PE-X and other commonly used piping materials. This specialized pressure testing unit serves as an indispensable testing solution for pipe manufacturers, quality inspection authorities, scientific research institutes, product distributors and construction enterprises engaged in plastic piping systems.
This building pipe hydrostatic pressure tester delivers a maximum testing rating of 10MPa, equivalent to 100bar or 14500psi, with a measurement precision controlled within ±0.1% of the full-scale value, which guarantees dependable and repeatable test outcomes for pipe strength evaluation. Produced in Beijing, China, the entire pressure testing system conforms to ISO9001 quality management system certification, representing consistent and high-grade manufacturing standards.
Product Description
This hydrostatic pressure testing apparatus is fitted with a water tank whose dimensions are precisely matched to the specification of the pipe under test, which effectively secures the fidelity and precision of the entire pipe testing procedure. With an operating temperature window spanning 10℃ to 95℃, the unit is particularly well-suited for performance verification of pipes manufactured to endure extreme temperature conditions.
This testing system is capable of generating two core analytical graphs: the pressure-time characteristic curve and the pressure-temperature variation curve. These graphical records contribute to the acquisition of precise, repeatable test findings and verify that tested pipes satisfy corresponding normative requirements. In terms of standard conformance, this equipment fully adheres to a comprehensive set of global and industrial specifications, including ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108 and ASTMF1335.
Irrespective of whether you operate a small or medium-sized enterprise or a large-scale manufacturing group, this hydrostatic pressure testing machine serves as an essential quality control instrument for all organizations engaged in the production of building pipes. Relying on its high-precision testing capability, stable data output and strict compliance with international benchmarks, you can consistently ensure that your piping products achieve top-tier quality and fulfill all regulatory requirements.
Integrate this hydrostatic pressure testing system into your workflow now to upgrade your quality management mechanism and advance your pipe manufacturing process to a higher standard of performance and reliability.
Features
- Product Name: Hydrostatic Pressure and Burst Testing Machine
- Test Temperature Range: 10℃ to 95℃
- Pressure Testing Range: 0-200Bar (equivalent to 0-20MPa)
- Customization Service: OEM support available
- Matching End Caps: Φ8mm to Φ1800mm
- Measurement Accuracy: ±1% to +2% of full scale
- Alternative Names: Hydraulic Pressure Strength Tester, Aquatic Pressure Testing Machine
Compliance Standards
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335
Technical Parameters
| Parameter |
Specification |
| Model |
XGY-20C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc (customizable) |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC storage |
| Print mode |
Color printer output |
| Test pressure range |
0.1-20MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| End caps models |
from Φ16 to 630mm |
| Water tank size |
According to pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or others |
Support and Services
We provide dedicated technical support solutions for hydrostatic pressure testing machines. Our highly experienced technical service team offers a complete suite of professional support covering the following areas:
- On-site equipment installation and commissioning
- Fault diagnosis, problem-solving and professional technical consulting
- Equipment repair and periodic maintenance services
- Genuine spare parts and dedicated consumables supply
- Software version updates and functional enhancement upgrades
We adhere to a high standard of customer-centric service and remain available to respond to all your equipment-related inquiries. Feel free to reach out to us whenever you have questions or require further assistance.
Frequently Asked Questions
Q1: Under which brand is your Plastic Pipe Hydrostatic Pressure Testing Machine sold?
A1: The equipment is marketed under the brand JHH, with full production completed in Beijing, China.
Q2: What is the core function of this Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: It is specifically engineered to evaluate the hydrostatic resistance and burst strength of plastic pipes.
Q3: Which components and materials are compatible with this Hydrostatic Pressure Testing Machine?
A3: It is suitable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, PE-X and other similar piping materials.
Q4: What level of measurement accuracy does the Hydrostatic Pressure Testing Machine offer?
A4: The machine's measurement accuracy is maintained within ±0.1% of the full-scale reading, ensuring reliable test data.
Q5: What is the maximum pressure capacity of this Hydrostatic Pressure Testing Machine?
A5: It can achieve a maximum test pressure of 10MPa (equivalent to 100bar or 1450psi) for pipe testing.

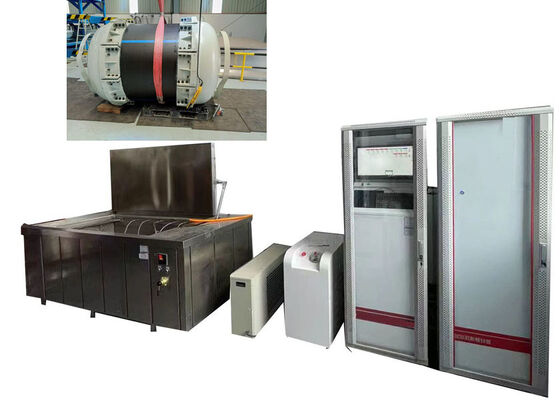

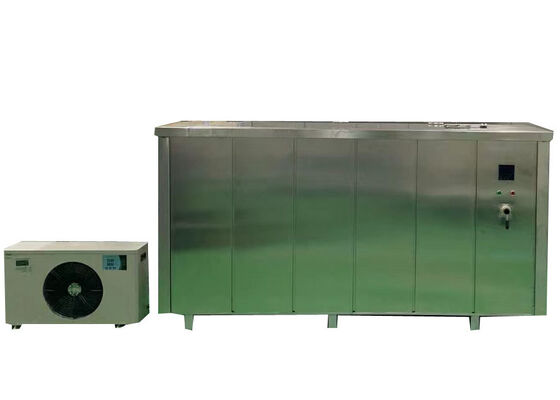

Product Images
