Servo Hydraulic Testing Machine combining microcomputer control and imported hydraulic components for pressure testing performance

Large Image : Servo Hydraulic Testing Machine combining microcomputer control and imported hydraulic components for pressure testing performance

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001 , CE
Model Number:	YAW-600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Servo Hydraulic Testing Machine Combining Microcomputer Control And Imported Hydraulic Components For Pressure Testing Performance	Model:	YAW-600
Max.load:	600KN	Test Machine Level:	0.5
Test Force Measurement Range:	2%～100%F·S	Relative Error Of The Test Force Indication Value:	<± 1% Of The Values Shown
Maximum Spacing Between Upper And Lower Plates:	650mm	Size Of Upper And Lower Pressing Plate:	370×370mm
Highlight:	Servo Hydraulic Testing Machine with microcomputer control , Servo Hydraulic Testing Machine with imported hydraulic components , Servo Hydraulic Testing Machine for pressure testing

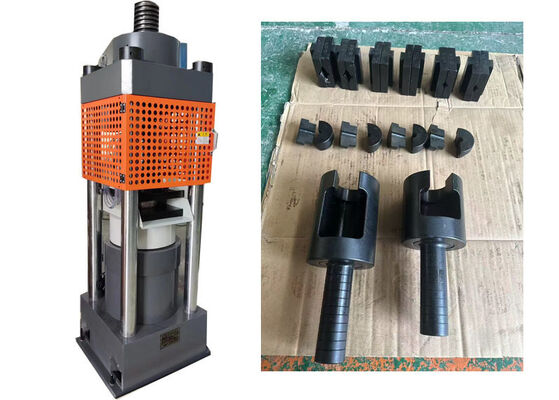

Servo Hydraulic Testing Machine

This advanced servo hydraulic testing machine combines microcomputer control with imported hydraulic components to deliver exceptional pressure testing performance. Independently designed and developed, it represents a sophisticated multifunctional automatic pressure testing system integrating cutting-edge mechanical, electrical, and hydraulic technologies.

Key Features

Premium imported oil pumps for swift response and exceptional control precision
User-adjustable loading rates with high-performance load sensors
Imported low-noise high-pressure hydraulic pumps for quiet operation
Extra-large capacity oil tank for sustained, uninterrupted long-term operation
High-precision signal amplifiers and analog-to-digital converters
PID closed-loop control for steady-rate loading
Automatic interval timing and continuous testing operations

Applications

Primarily designed for compressive strength testing of cement, concrete, and rock specimens. With dedicated fixtures and precision measuring attachments, the system can perform concrete splitting tensile tests, flexural tests, static elastic modulus tests, and is also competent for metal compression and upset forging tests.

Technical Specifications

Maximum test force	600 kN
Complete accuracy level	0.5
Size of upper and lower pressing plate	370×370mm
Maximum spacing between upper and lower plates	650mm
Test force measurement range	2%～100%F*S
Test machine resolution	600000 yards
Accuracy of test force value	±0.5%
Electrical source	Voltage: 380V ± 10%; Power: 2 (kw)

Compliance Standards

ASTM C349; ASTM C109; EN993-5; EN 196-1; ISO8895; ISO10059-1; ISO10059-2
