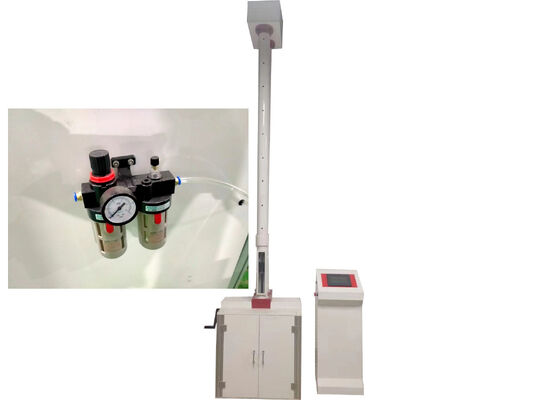

Versatile Drop Hammer Test Equipment Used for Dynamic Impact Testing of Concrete Asphalt and Other Construction Materials

Versatile Drop Hammer Test Equipment Used for Dynamic Impact Testing of Concrete Asphalt and Other Construction Materials
Versatile Drop Hammer Test Equipment Used for Dynamic Impact Testing of Concrete Asphalt and Other Construction Materials
video play

Large Image :  Versatile Drop Hammer Test Equipment Used for Dynamic Impact Testing of Concrete Asphalt and Other Construction Materials

Product Details:
Place of Origin: Beijing, China
Brand Name: JHH
Certification: ISO9001, CE
Model Number: XJL-300D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden case
Delivery Time: 7 -15 days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Versatile Drop Hammer Test Equipment Used For Dynamic Impact Testing Of Concrete Asphalt And Other Construction Materials Test Type: Drop Hammer Test
Test Range: 0-300J Drop Hammer Quality: 0.5kg-16kg
Control Mode: Automatic Max. Height: 2000mm
Min. Height: 10mm Power Supply: AC220V/50Hz
Highlight:

drop hammer test equipment for concrete

,

dynamic impact testing equipment for asphalt

,

versatile drop hammer for construction materials

Versatile Drop Hammer Test Equipment
Used for Dynamic Impact Testing of Concrete, Asphalt and Other Construction Materials
Product Overview
This Drop Hammer Impact Testing Machine features an exceptional drop hammer mass range adjustable from 0.5 kg to 16 kg, delivering flexible test configurations to meet varied requirements. With maximum impact energy of 300 J, it ensures precise, repeatable and dependable test data for every cycle.
The apparatus includes interchangeable hammer heads in diameters of D25 mm and D90 mm, plus other optional dimensions, ensuring broad compatibility with diverse materials and structural specimens. The maximum specimen lifting height of 2000 mm facilitates seamless impact testing on large-scale components and bulk materials.
Engineered with premium-grade components and superior operational performance, this equipment is ideally suited for drop impact testing and impact release hammer experimental assessments.
Applications
Specifically designed for impact testing on non-metallic materials including plastics, glass, ceramics and similar substances. It serves as an optimal instrument for quantitative determination of material impact resistance strength.
Enables impact testing on specimens of identical materials or consistent specifications, facilitating systematic quality comparison and performance differentiation among material batches. Compatible with both pass-fail testing and gradient testing methods.
Product Features
  • Designated Product Name: 0-300J Test Range Drop Hammer Test Equipment with D90mm Hammer Diameter for PVC-O
  • Available Hammer Head Diameters: D25mm, D90mm, and customizable specifications
  • Drop Hammer Mass Range: 0.5kg to 16kg
  • Maximum Drop Height: 2000mm
  • Compliant Test Standards: ISO 3127, ISO 6603, ISO 4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and other relevant standards
  • Product Classification: Drop Hammer Test Equipment
  • Key Marketing & Search Keywords: Drop Energy Tester for Hammer Test, Impact Drop Hammer Tester, Drop Hammer Testing Facility
Technical Specifications
Model XJL-300D
Ambient temperature 10℃-35℃
Drop hammer quality 0.5kg-16kg
Hammer diameter D25mm, D90mm, etc
Height of the fall 10mm-2000mm, error≤±2mm
Diameter of the sample Φ16mm-Φ630mm
Deviation of impact center from fixture center ≤2mm
V-type supporting 120°
Power source 220VAC±10%
Outline dimension 715mm×700mm×3900mm
Net weight 380kg
Support and Services
We provide full-spectrum technical support and dedicated after-sales service. Our specialized engineering professionals deliver expert guidance covering equipment installation, routine maintenance, fault diagnosis, troubleshooting, precision calibration, and supplementary technical services. We also develop tailored customized solutions for unique testing requirements.
Our professional service team maintains round-the-clock availability to address inquiries, technical issues or operational concerns.
Packing and Shipping
The equipment is securely packed in robust wooden crates for maximum protection during transit. Each crate contains the main unit, operation manual, and all supplementary parts and accessories. Crates are clearly labeled with equipment name, model number, and unique serial number.
Shipping includes complete documentation (commercial invoice, packing list, and required shipping documents). Shipping fees are calculated based on destination and selected method (sea freight, air freight), with transparent pricing provided prior to shipment.
Frequently Asked Questions
What is a Drop Hammer Test Equipment?
The Drop Hammer Test Equipment is a precision testing instrument produced by JHH, manufactured in Beijing, China. It is specifically designed to evaluate the impact resistance of test specimens.
What is the purpose of the Drop Hammer Test Equipment?
Its primary purpose is to assess the impact resistance of objects, providing data to verify and ensure product quality meets predefined standards.
Which products are compatible with the Drop Hammer Test Equipment?
Applicable for testing various pipes including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes. Also suitable for rigid plastic sheets.
What is the accuracy of the Drop Hammer Test Equipment?
The equipment boasts a measurement accuracy of up to ±0.5%.
What is the maximum testing force of the Drop Hammer Test Equipment?
The maximum test energy of the equipment is 300J.
Versatile Drop Hammer Test Equipment Used for Dynamic Impact Testing of Concrete Asphalt and Other Construction Materials 0 Versatile Drop Hammer Test Equipment Used for Dynamic Impact Testing of Concrete Asphalt and Other Construction Materials 1 Versatile Drop Hammer Test Equipment Used for Dynamic Impact Testing of Concrete Asphalt and Other Construction Materials 2
