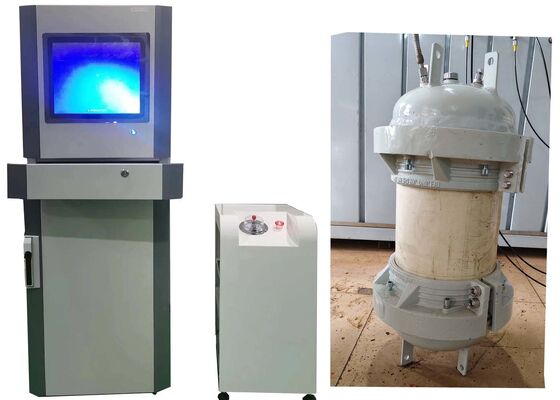

Hydrostatic Pressure Testing Machine Designed to Ensure Pressure Testing and Safety Compliance in Industrial Applications

Large Image : Hydrostatic Pressure Testing Machine Designed to Ensure Pressure Testing and Safety Compliance in Industrial Applications

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Designed To Ensure Pressure Testing And Safety Compliance In Industrial Applications	Testing Range:	0-10MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	industrial hydrostatic pressure tester , pressure testing machine for safety compliance , hydrostatic pressure testing equipment with warranty

Hydrostatic Pressure Testing Machine

Product Overview

Designed to ensure pressure testing and safety compliance in industrial applications, this ISO-certified hydrostatic pressure testing machine delivers precise, consistent, and dependable test outcomes for thermoplastic pipes, pipe fittings, and control valves.

Applications

This Water Test Medium Plastic Pipe Hydrostatic Pressure Testing Machine serves diverse industrial applications including:

Construction engineering
Municipal water supply systems
Gas transmission and distribution
Chemical processing industries

Ideal for manufacturers, material suppliers, and end-users requiring accurate quality assessment and durability verification of pipes and fittings.

Certification & Manufacturing

Holding ISO 9001 quality management system certification, this equipment is manufactured in Beijing, China. We accommodate orders from single units to bulk purchases with a monthly capacity of 20 units to meet global demand.

Technical Features

Precision Control: ±1% full-scale control accuracy ensures highly precise and trustworthy testing processes for credible quality assessment.

Automatic Testing Mode: Streamlines operations from parameter initialization to result output, reducing manual workload while ensuring consistent, repeatable outcomes.

Wide Compatibility: Supports Φ10-1600mm pipe diameter range, making it suitable for various thermoplastic pipes including PPR, PB, and PERT.

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Technical Parameters

Parameter	Specification
Model	XGY-10C
Diameter Range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Test Pressure Range	0.1-10MPa
Control Accuracy	±1%
Timer Range	0~10000h
Power	380V 50Hz three-phase four-wire 1.5KW
Temperature Range	15-95℃

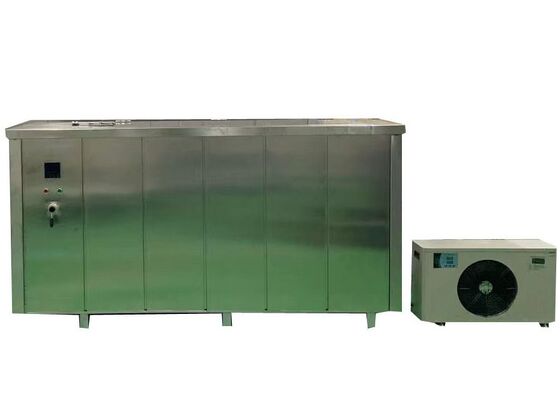

Product Images

Support & Services

Our comprehensive technical support and after-sales services include:

On-site installation and precision commissioning
Professional troubleshooting and technical consultation
Regular repair and preventive maintenance
Genuine spare parts and consumables supply
Software updates and functional upgrades

Frequently Asked Questions

What is the brand and manufacturing location of this testing machine?

This Plastic Pipe Hydrostatic Pressure Testing Machine is branded JHH, with production based in Beijing, China, adhering to strict quality control protocols.

What is the core function of this Hydrostatic Pressure Testing Machine?

Its primary purpose is to conduct hydrostatic pressure resistance and bursting strength tests on plastic pipes, delivering quantitative data for quality validation.

Which pipe materials are compatible with this machine?

It is applicable for testing plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X, and other similar thermoplastic pipe materials.

What is the measurement accuracy of this testing machine?

The machine boasts high measurement precision, with an accuracy tolerance within ±0.1% of the full-scale reading, ensuring reliable test results.

What is the maximum pressure this machine can handle?

It supports a maximum test pressure of 10 MPa (equivalent to 100 bar or 1,450 psi), meeting mainstream high-pressure testing demands for plastic pipes.
