HDT VICAT Testing Machine solution for measuring heat distortion temperature and softening point of polymer and plastic samples

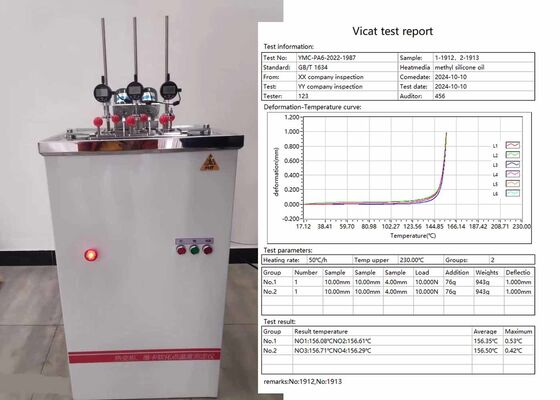

Large Image : HDT VICAT Testing Machine solution for measuring heat distortion temperature and softening point of polymer and plastic samples

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001 , CE
Model Number:	XRW-300F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	HDT VICAT Testing Machine Solution For Measuring Heat Distortion Temperature And Softening Point Of Polymer And Plastic Samples	Heating Rate B:	120℃/h
Current Source:	4.5KW, 220VAC, 50HZ	Maximum Temperature Error:	±0.5℃
Heating Medium:	Silicone Oils, Glycerine, Ethylene Glycol, Mineral Oil	Span Of Sample Supports:	64mm, 100mm
Product Category:	HDT VICAT Testing Machine	Loading:	10±0.2N, 50±1.0N
Highlight:	HDT VICAT Testing Machine for polymers , plastic heat distortion temperature tester , HDT VICAT softening point analyzer

HDT VICAT Testing Machine

The HDT VICAT Testing Machine, also functioning as a Vicat Plasticity Measurement System, is designed to quantify the penetration depth of a standard needle into a material under preset load and temperature conditions. This test protocol is pivotal for assessing the plasticity and stiffness of materials, yielding quantitative data to characterize their mechanical performance.

This equipment features a temperature control range from ambient temperature to 300℃, enabling comprehensive testing of a broad spectrum of materials under varying thermal environments. The temperature deviation is strictly controlled within ±0.5℃, which ensures the precision and reliability of test results across the entire operating temperature range.

Regarding deformation measurement, the HDT VICAT Testing Machine offers a range spanning from -1.00 mm to 10.00 mm, with a maximum measurement deviation of 0.001 mm. This high-precision capability allows for accurate quantification of material deformation under combined load and temperature effects, providing critical insights into the material's mechanical behaviors.

With overall dimensions of 900mm×580mm×1400mm, the machine boasts a compact footprint that facilitates seamless integration into any laboratory or testing facility. It is also engineered for user-friendliness, equipped with an intuitive operation interface and straightforward control logic to streamline testing workflows.

Key Features

Product Name: HDT VICAT Testing Machine
Product Category: HDT VICAT Testing Machine
Test Stations: 6
Heating Rate A: 50℃/h
Temperature Control Range: Ambient temperature ～ 300℃
Power Supply: 4.5KW, 220VAC, 50HZ

This specialized HDT VICAT Testing Apparatus is engineered exclusively for determining the Vicat Softening Point of plastics and thermoplastic resins. Outfitted with 6 independent test stations, it enables concurrent testing of multiple specimens, which effectively boosts the overall efficiency of laboratory testing workflows.

Technical Parameters

Parameter	Specification
Product Category	HDT VICAT Testing Machine
Product Name	Determination Of Vicat Softening Temperature Of Plastic Rate A 50℃/h Rate B 120℃/h
Temperature Control Range	Room temperature ～300℃
Heating Rate A	50℃/h
Heating Rate B	120℃/h
Current Source	4.5KW, 220VAC, 50HZ
Test Stations	6
Span Of Sample Supports	64mm, 100mm
Deformation Measurement Range	-1.00～10.00mm
Maximum Deformation Measurement Error	0.001mm
Test Standards	ISO75-1, ISO306, GB/T8802, GB/T1633, GB/T1634, ASTM D 1525-1991, ASTM D648-06

Applications

The HDT VICAT Testing Equipment stands as an indispensable tool for plastic manufacturers, research institutions, and quality control departments. It facilitates the precise determination of the temperature at which plastic materials soften and undergo deformation under a predefined load, serving as a core instrument for material performance evaluation.

This equipment is compatible with a wide range of plastic materials, including PVC, PE, PP, PS, ABS, and other thermoplastic resins. This Vicat Softening Point Tester is equipped with a temperature control system spanning from ambient temperature to 300℃, paired with a specimen holder featuring a thermal expansion coefficient of less than 0.005mm/100℃—ensuring minimal thermal interference to test accuracy.

As a highly sought-after model in the plastic industry, this tester supports dual heating rates (Rate A: 50℃/h; Rate B: 120℃/h) for Vicat Softening Temperature determination. It is widely applied across research and development, quality control processes, and is suitable for testing plastic products such as pipes, profiles, and sheets.

Frequently Asked Questions

What is the brand designation of this testing equipment?

The brand name of this product is JINHAIHU, a trusted name in the material testing instrument sector.

What is the specific model code assigned to this product?

The official model number of this HDT VICAT Testing Equipment is XRW-300F, engineered for high-precision thermal performance testing of plastic materials.

What quality certifications has this testing equipment obtained?

This product is certified under the ISO 9001 quality management system, validating its compliance with rigorous international production and quality control standards.

What is the minimum order quantity (MOQ) for this product?

The minimum order quantity for this testing equipment is set at 1 set, accommodating both small-scale laboratory purchases and bulk industrial orders.

What is the price bracket for this testing equipment?

The price range of this product falls between 2,400 and 6,000 US dollars, with variations depending on custom configuration requirements and additional service packages.

What is the monthly supply capacity of this product?

Our production line supports a stable supply capacity of 15 sets per month, ensuring timely delivery for both domestic and international orders.

What is the standard lead time for product delivery?

The delivery period ranges from 10 to 15 working days, calculated from the date of deposit receipt.

What packaging solution is adopted for this testing equipment during shipment?

All units are packaged in heavy-duty standard export wooden cases, which are reinforced to prevent damage during long-distance sea or air transportation.

What payment methods are acceptable for this product?

We accept a diverse range of payment terms, including T/T, L/C, D/A, D/P, Western Union, and MoneyGram, to facilitate seamless transactions for global clients.
