Electronic Universal Testing Machine for Tensile Compression and Bending Tests on Metal Wire Nylon Plastic Rubber and Textile Materials

Large Image : Electronic Universal Testing Machine for Tensile Compression and Bending Tests on Metal Wire Nylon Plastic Rubber and Textile Materials

Product Details:

Place of Origin:	China
Brand Name:	JINHAIHU
Certification:	ISO9001 , CE
Model Number:	XWW-50KN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard wooden case
Delivery Time:	10-15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Product Name:	Electronic Universal Testing Machine For Tensile Compression And Bending Tests On Metal Wire Nylon Plastic Rubber And Textile Materials	Control Mode:	Cumputer
Max. Force:	50KN	Standard:	ISO7500-1, ISO5893,ISO9969, ASTMD638\695\790
Accuracy Grade:	0.5%	Force-measuring Range:	0.4%~100%FS
Crossbeam Displacement Resolution:	0.001mm	Crossbeam Speed Range:	0.05-500mm/min
Type:	Floor Model With Double Test Space
Highlight:	Electronic Universal Testing Machine for metal wire , Universal Testing Machine for plastic rubber , Tensile compression bending testing machine

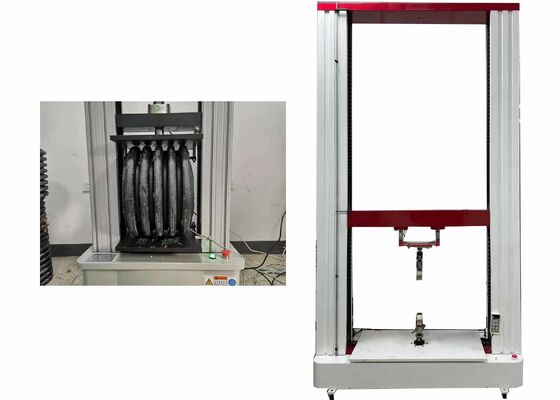

Electronic Universal Testing Machine for Tensile Compression and Bending Tests

Universal Testing Machines are engineered for quality assurance protocols across diverse industrial sectors, catering to the testing needs of metal wires, nylon filaments, plastics, rubbers, textiles, apparel, and packaging materials for tensile, compressive, flexural, peel, and tear performance evaluations.

This series of testing equipment features a dual-lead screw configuration and adopts an integrated design that unifies the mainframe, control system, measurement modules, and operational components with state-of-the-art technology. Boasting superior measurement precision, a broad speed adjustment range, a compact structural layout, user-friendly operation, and consistent performance stability, the machines comply with testing standards for plastic pipe materials and related substrates.

Technical Specifications

Model	XWW-50KN
Type	Floor model with double test space
Max. Load	50KN
Accuracy Grade	0.5%
Force-measuring Range	0.4%~100%FS
Force-measuring Accuracy	≤0.5%
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	0.5%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0.05-500mm/min
Displacement Speed Accuracy	≤ 0.5%
Test Width	380
Total Crossbeam Travel	700mm
Sample Size	Max.2521mm(widethick) - Can be customized
Clamps	Tensile jig, Compression jig, Bending jig, etc
PC System	Equipped with brand computer and color inkjet printer
Power Supply	AC220V; 1.5kw
Standards	ISO7500-1, ISO5893, ISO9969, ASTMD638/695/790

Software Features

Robust functionality for tensile, compressive, flexural, shear, and peel tests on metallic and non-metallic materials
Windows-based operating framework with intuitive operation
Multi-language support (Simplified Chinese, Traditional Chinese, English)
Role-based access management with up to ten user accounts
Customizable overload protection with user-defined threshold values
Real-time dynamic display of stress and strain variations
Multiple test curve options: Load-Displacement, Load-Time, Displacement-Time, Stress-Strain, Load-Elongation
Dual force value correction system with automatic calibration
Compliance with international standards: ISO, JIS, ASTM, DIN, GB
Curve overlay comparison for intuitive data analysis
Automatic calculation of mechanical properties including maximum force, yield strength, tensile strength, and elongation

System Configuration

Machine main unit with AC servo motor, driver, and speed reduction system
50KN load cell and precision ball screws (2 sets)
Control board and servo control system
PC with color inkjet printer

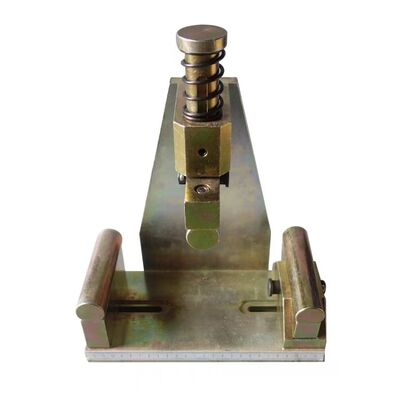

Complete set of test accessories: Tensile jig, Compression jig, Bending jig
Deformation measurement device
Software installation CD and technical documentation
Tool kit including Instruction Manual, Software Manual, and Certificate

Frequently Asked Questions

What is the maximum test force range and force measurement accuracy class?

Our electronic universal testing machine offers a maximum test force range from 1 kN to 1000 kN, with a force measurement accuracy of Class 0.5, fully compliant with ISO 7500-1 and GB/T 16825 standards.

What is the test speed adjustment range and speed control accuracy?

The machine features a wide test speed range of 0.001 mm/min to 500 mm/min, with a speed control accuracy of ±1% of the set speed.

What is the effective test stroke and available test space?

The effective tensile stroke is up to 1000 mm, with a lateral test space of 600 mm (width) × 800 mm (height), accommodating large specimens including full-length plastic pipes.

Does the machine support multi-channel force measurement?

Yes, the machine is equipped with a multi-channel force measurement system that can support up to 3 additional load sensors, allowing users to switch between different sensors for varying force requirements.

What are the environmental adaptability parameters?

The machine operates stably in temperatures from 5℃ to 35℃ and relative humidity of 20% to 80% (non-condensing), with anti-vibration isolation design for industrial environments.
