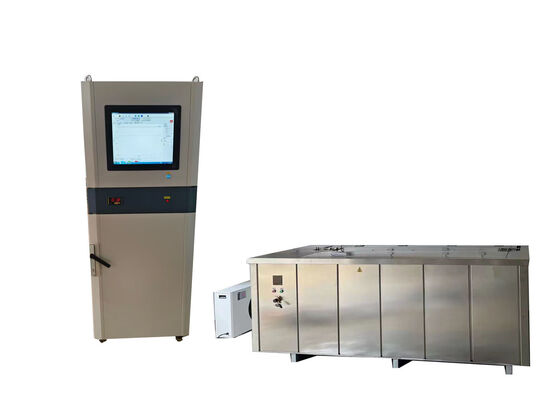

Hydrostatic Pressure Testing Machine for Pressure Vessels, Pipes and Hydraulic Systems
Boasting premium-grade build quality and consistent, dependable operational performance, the JINHAIHU XGY Hydrostatic Pressure Testing Machine serves as an ideal testing solution for enterprises and institutions tasked with evaluating the mechanical strength and long-term durability of plastic pipe products.
Applications
Manufactured in Beijing, China, this apparatus holds the ISO9001 quality management system certification, underscoring its adherence to stringent production and quality control benchmarks.
Featuring a broad test pressure range of 0.2-16 MPa, the JINHAIHU XGY Hydrostatic Pressure Testing Machine accommodates a diverse array of plastic pipe testing applications. It fully complies with the rigorous requirements of international and industry standards including ISO 1167, ISO 9080, EN 921, ASTM D1598, ASTM D1599, and ISO 13479.
Equipped with a user-friendly LCD display, the machine enables intuitive reading and real-time monitoring of test parameters and results throughout the testing cycle. In addition to ISO 9001 certification, it also holds CE certification, providing dual assurance of product quality, safety, and compliance.
Product Description
Equipped with a test pressure span of 0.2-16 MPa and a temperature control range of 15-95℃, this hydrostatic pressure testing machine is engineered to deliver precise, repeatable test results for plastic pipes of varying dimensions and material compositions.
Integrated with a high-precision temperature regulation system, it maintains stable thermal conditions throughout the entire testing cycle, thereby ensuring the accuracy and consistency of hydrostatic test data.
This ASTM D1598-aligned testing apparatus features a streamlined operational workflow with a user-centric control interface, enabling operators to configure test parameters and execute testing procedures efficiently with minimal training.
Tailored specifically for hydrostatic performance evaluation of PVC pipes, the machine is equally applicable to PPR, PB, and PERT pipe products—all widely utilized in plumbing, heating, and diverse industrial fluid conveyance systems.
Compliance Standards
- ISO1167-2006
- ASTMD1598-2004
- ASTMD1599
- ISO9080
- CJ/T108
- ASTMF1335
Technical Parameters
| Parameter |
Specification |
| Model |
XGY-16C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc (customizable) |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC storage |
| Print mode |
Color printer output |
| Test pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |

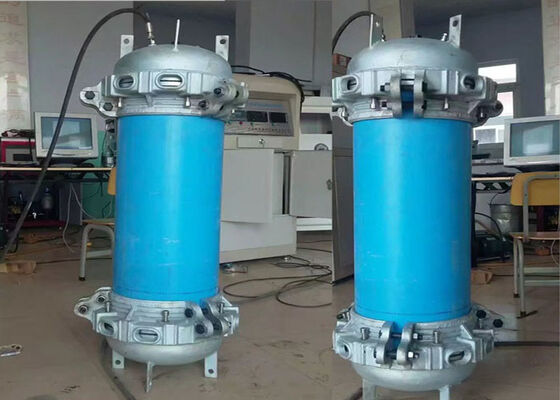

| End caps models |
from Φ16 to 630mm |
| Water tank size |
According to pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm) or others |
Support and Services
We provide full-spectrum technical support and dedicated after-sales service for Plastic Pipe Hydrostatic Pressure Testing Machines.
- On-site installation and commissioning support
- Efficient fault diagnosis and troubleshooting guidance
- Proactive maintenance programs and emergency repair services
- Supply of authentic spare parts and testing consumables
- Regular software updates and system upgrades
Frequently Asked Questions
Q1: What brand is this Plastic Pipe Hydrostatic Pressure Testing Machine affiliated with, and where is it manufactured?
A1: This Plastic Pipe Hydrostatic Pressure Testing Machine is branded as JHH, and it is professionally manufactured in Beijing, China, adhering to strict industrial quality control protocols.
Q2: What is the primary function of the Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The core function of this apparatus is to conduct precise evaluations of the hydrostatic pressure resistance and bursting strength of plastic pipe products, verifying their structural reliability under pressure loads.
Q3: Which types of pipes and materials are compatible with this Hydrostatic Pressure Testing Machine?
A3: This testing machine is applicable for hydrostatic performance testing of plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, and PE-X pipe series.
Q4: What level of measurement accuracy can this Hydrostatic Pressure Testing Machine achieve?
A4: This Hydrostatic Pressure Testing Machine delivers a high-precision performance with a full-scale reading accuracy tolerance of within 0.1%.
Q5: What is the maximum pressure range that this Hydrostatic Pressure Testing Machine can accommodate?
A5: This testing machine is capable of conducting pressure tests up to a maximum of 10 MPa, which is equivalent to 100 bar or 1450 psi.
