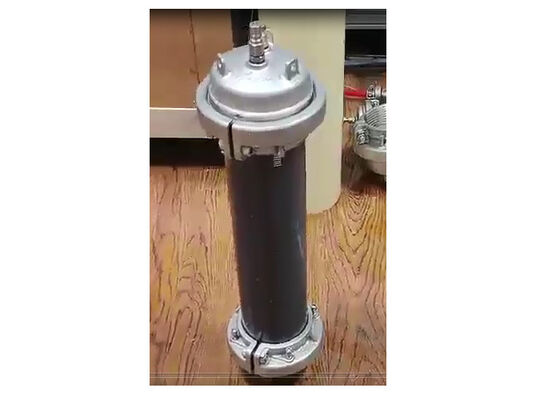

Hydrostatic Pressure Testing Machine Ensuring Pressure Testing Solutions for Pipes Valves and Cylinders in Manufacturing

Large Image : Hydrostatic Pressure Testing Machine Ensuring Pressure Testing Solutions for Pipes Valves and Cylinders in Manufacturing

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-20C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Ensuring Pressure Testing Solutions For Pipes Valves And Cylinders In Manufacturing	Testing Range:	0-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic pressure testing machine for pipes , Pressure testing machine for valves , Hydrostatic testing machine for cylinders

Hydrostatic Pressure Testing Machine for Pipes, Valves and Cylinders

Applications

The JINHAIHU XGY Hydrostatic Pressure & Burst Testing Machine features a test pressure range of 0.2-16 MPa (full-scale scope: 0-16 MPa), enabling precise quantification of pipe strength and long-term durability. This ensures verified operational safety and reliability of pipework in practical applications.

Integrated safety safeguards including overpressure and overtemperature protection mechanisms enhance operational safety throughout the testing cycle, mitigating potential risks during high-pressure testing.

The machine demonstrates broad applicability across multiple scenarios including performance testing of water supply pipelines, drainage systems, gas transmission pipelines, and other pipework categories. It serves as an indispensable tool for engineers and technical personnel in industries such as municipal engineering, petrochemicals, and construction.

Product Features

Exceptional measurement accuracy with tolerance range of -1% to +2%
Broad test temperature span of 15℃ to 95℃ for real-world operational environment replication
Fully automated operational mode minimizing manual intervention
Dual safety protection mechanisms: overpressure interlock and overtemperature interlock
LCD screen for clear, real-time visualization of test parameters
Wide applicable pipe diameter range from Φ8 mm to Φ1800 mm
Comprehensive OEM customization services available
Specifically engineered for plastic pipework including PPR, PE, PVC, PB, and PERT variants

Technical Parameters

Parameter	Specification
Model	XGY-16C
Diameter Range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 (customizable)
Control Mode	Micro-control, industrial PC control
Display Mode	Industrial PC LCD color display
Test Pressure Range	0.1-16MPa
Control Accuracy	±1%
Test Timer Range	0~10000h
Power	380V 50Hz three-phase four-wire 1.5KW
Temperature Range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or customized

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335

Product Images

Support and Services

We offer comprehensive technical support and after-sales services including:

On-site installation and commissioning
Professional troubleshooting and technical consultation
Routine maintenance and repair services
Supply of genuine spare parts and consumables
Software updates and upgrade services

Frequently Asked Questions

What is the brand designation of this Plastic Pipe Hydrostatic Pressure Testing Machine?

The brand of this Hydrostatic Pressure Testing Machine is JHH, and the equipment is manufactured in Beijing, China.

What is the primary application of this Plastic Pipe Hydrostatic Pressure Testing Machine?

This machine is specifically designed to assess the hydrostatic pressure resistance and burst strength of plastic pipes.

Which types of pipes and materials can this Hydrostatic Pressure Testing Machine evaluate?

It is suitable for testing plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X, and other analogous pipe variants.

What is the measurement accuracy of this Hydrostatic Pressure Testing Machine?

The machine achieves a measurement accuracy of ±0.1% relative to the full-scale reading.

What is the maximum test pressure capacity of this Hydrostatic Pressure Testing Machine?

It can handle test pressures up to 10 MPa, which is equivalent to 100 bar (1450 psi).
