Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe Glass Pottery and Other Non Metal Materials with Results

Large Image : Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe Glass Pottery and Other Non Metal Materials with Results

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001 , CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment For Conducting Impact Tests On Plastic Pipe Glass Pottery And Other Non Metal Materials With Results	Travel Of Working Table:	8-450mm
Specimen Diameter:	φ10~450mm	Hammer Diameter:	D25, D90, R5, R10, R30, R50 Can Optional
Hammer Weight:	0.5kg-6kg	Height Of The Fall:	40mm-2000mm，error≤±2mm
Outline Dimension:	740mm×710mm×3650mm	Net Weight:	310kg
Highlight:	drop hammer test equipment for plastic pipe , impact test equipment for non-metal materials , drop hammer tester for glass pottery

Drop Hammer Test Equipment for Conducting Impact Tests on Plastic Pipe, Glass, Pottery and Other Non-Metal Materials

This Plastic Pipe Falling Dropping Hammer Impact Testing Machine is specifically engineered for impact resistance testing of non-metallic substrates including plastics, glass, ceramics, and analogous materials. It serves as a critical, industry-standard testing instrument for evaluating the impact resistance strength of such materials and enables comparative quality assessment of specimens with identical material compositions or dimensional specifications via standardized impact testing.

Key Features

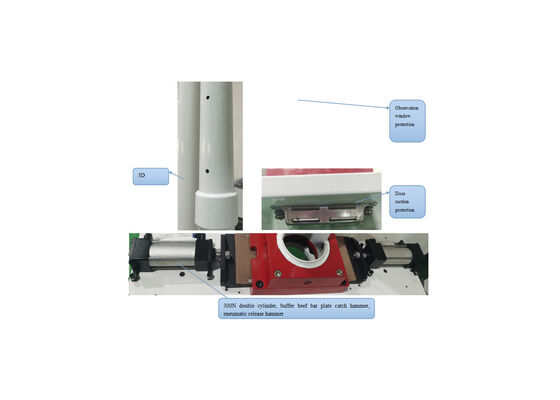

Three-Tier Safety Protection Mechanism

Primary Protection: Sample chamber door safety interlock
Secondary Protection: Observation window door safety interlock (currently not configured)
Tertiary Protection: Upper & lower limit position safety safeguards

High-Speed Lifting System

Equipped with a high-torque stepper motor achieving a maximum lifting speed of 250 mm/s, enabling a full 2-meter lift to be completed in as little as 8 seconds.

Intelligent Hammer Hover Control

Multi-stage speed control algorithm ensures smooth, stable hammer positioning with zero positional offset during operation.

Aerodynamically Optimized Hammer Tube Design

Engineered via 3D modeling with dedicated exhaust ports to minimize aerodynamic drag and reinforced tube retention structure to mitigate tube failure or deformation.

Pneumatic Hammer Handling System

300N long-stroke double cylinder with beef tendon rubber hammer face ensures stable, damage-free hammering while eliminating cable fatigue and electrical leakage issues.

Integrated Modular Construction

Standardized aluminum alloy profile framing with integrated 7-inch touchscreen and Delta PLC enables process standardization and lightweight, high-strength construction.

Premium Component Quality

Critical components include Adker cylinders, Delta touchscreens & PLCs, and Taiwan Mean Well power supplies with comprehensive safety safeguards.

High-Automation Capabilities

Supports fully automated workflows including automatic zero-point calibration, hammer lifting, hammer release, and test execution.

Compliance Standards

ASTM D2444, ISO4422, ISO3127, BSEN1411 and BSEN744

Technical Parameters

Parameter	Specification
Model	XJL-450M
Ambient temperature	10℃-35℃
Drop hammer quality	0.5kg-6kg
Hammer diameter	D25mm, D90mm (customizable)
Height of the fall	40mm-2000mm, error ≤±2mm
Diameter of the sample	Φ8mm-Φ450mm (customizable)
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
Power source	220VAC±10%
Outline dimension	740mm×710mm×3650mm
Net weight	310kg

Standard Configuration

Component	Quantity
Host	One set
Electric cabinet	One set
The hammer body	One set
Power line	One piece
V-type supporting	Two pieces
Operating tool (wrench)	One set

Frequently Asked Questions

What is the maximum lifting speed of the machine's drop hammer, and how long does it take to reach the typical 2-meter test height?

The machine is configured with a high-torque stepper motor, delivering a maximum lifting speed of 250 mm/s. For the common 2-meter test height, this speed allows the hammer to reach the target position in as little as 8 seconds, supporting efficient test cycle turnover.

What force specification does the pneumatic hammer system adopt, and what is the material of its hammer face?

The pneumatic hammer system uses a 300N long-stroke double cylinder. Its hammer face is made of beef tendon rubber, ensuring stable impact force output, avoiding damage to specimens/hammer components, and eliminating issues like cable fatigue or electrical leakage linked to traditional electromagnetic hammer designs.

What core components constitute the machine's electrical control system, and what automated functions do they enable?

The electrical control system integrates a 7-inch touchscreen, Delta PLC, and Mean Well power supply. These components support fully automated workflows including automatic zero-point calibration, automatic hammer lifting, automatic hammer release, and fully automated test execution, ensuring consistent operational accuracy and process efficiency.

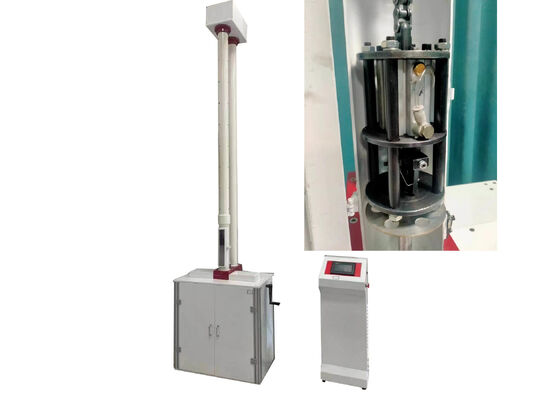

Product Images
