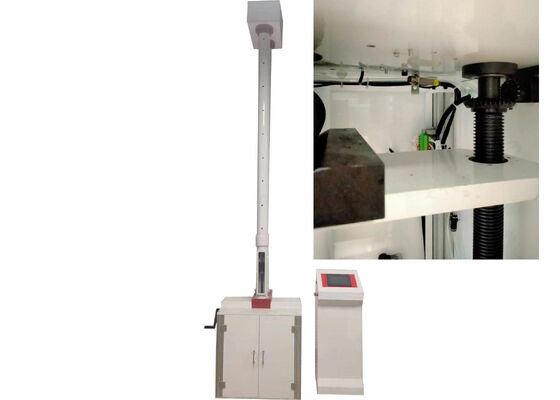

ASTM D2444 Drop Hammer Test Equipment for Impact Strength Measurement of Plastic Pipes Non Metallic Materials Ceramics and Glass

Large Image : ASTM D2444 Drop Hammer Test Equipment for Impact Strength Measurement of Plastic Pipes Non Metallic Materials Ceramics and Glass

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001 , CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	ASTM D2444 Drop Hammer Test Equipment For Impact Strength Measurement Of Plastic Pipes Non Metallic Materials Ceramics And Glass	Travel Of Working Table:	10-450mm
Specimen Diameter:	φ16~450mm	Hammer Diameter:	D25, D90, R5, R10, R30, R50 Can Optional
Hammer Weight:	0.5kg-6kg	Height Of The Fall:	30mm-2000mm，error≤±2mm
Outline Dimension:	750mm×720mm×3650mm	Net Weight:	320kg
Highlight:	ASTM D2444 drop hammer tester , impact strength test equipment for plastic pipes , drop hammer tester for non-metallic materials

ASTM D2444 Drop Hammer Test Equipment for Impact Strength Measurement of Plastic Pipes, Non-Metallic Materials, Ceramics and Glass

Product Overview

The ASTM D2444-compliant High-Precision Drop Hammer Impact Tester is engineered for impact performance evaluation of non-metallic materials, including plastics, glass, ceramics, and similar substrates. This premium precision instrument quantifies the impact strength of target materials, delivering reliable data to characterize material toughness and anti-impact capabilities.

The tester enables comparative impact testing on materials with identical composition or specifications, facilitating objective quality consistency assessment across batches or production runs. It is fully compatible with two industry-recognized testing methodologies: the transfer method and gradient method, catering to diverse technical requirements in non-metallic material impact analysis.

Compliance Standards

Meets ASTM D2444, ISO4422, ISO3127, BSEN1411 and BSEN744 standards.

Key Features

Three-Tier Safety Protection System: Primary sample chamber door safety interlock, secondary optional observation window safety guard, and tertiary upper/lower limit safety protection
High-Speed Lifting Performance: 250 mm/s lifting speed with high-torque stepper motor
Intelligent Precision Hovering: Multi-stage speed control algorithm for smooth hammerhead deceleration
Optimized Drop Pipe Design: 3D-modeled with exhaust ports and enhanced reinforcement structure
Pneumatic Hammer Mechanism: 300N long-stroke dual-cylinder with cowhide tendon plate hammer face

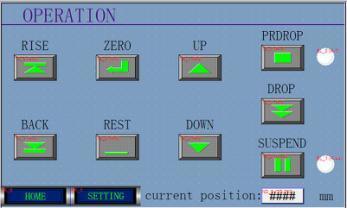

Integrated Modular Design: Standardized aluminum alloy profile assembly with 7-inch Delta touch screen
Premium Component Quality: Adker cylinders, Delta touch screens/PLCs, and Taiwan Mean Well power supplies
Advanced Automated Operation: Full-process automation including automatic calibration and impact execution

Technical Specifications

Model	XJL-450M
Ambient Temperature	10℃-35℃
Drop Hammer Quality	0.5kg-6kg
Hammer Diameter	D25mm, D90mm (customizable)
Height of the Fall	30mm-2000mm, error≤±2mm
Sample Diameter	Φ16mm-Φ450mm (customizable)
Impact Center Deviation	≤2mm
V-Type Supporting	120°
Power Source	220VAC±10%
Dimensions	750mm×720mm×3650mm
Net Weight	320kg

Standard Configuration

Name	Quantity
Host	One set
Electric Cabinet	One set
Hammer Body	One set
Power Line	One piece
V-Type Supporting	Two pieces
Operating Tool (Wrench)	One set

Frequently Asked Questions

What safety protection mechanisms does the drop hammer impact tester adopt to ensure operational security?

The tester features a three-tier safety protection system: primary sample chamber door safety interlock, secondary optional observation window safety guard, and tertiary upper/lower limit safety protection. Additional safeguards include leakage protection, anti-short circuit, and misoperation avoidance across electrical, mechanical, and software layers.

What is the lifting speed of the tester, and how does it improve testing efficiency?

Powered by a high-torque stepper motor, the tester achieves a maximum lifting speed of 250 mm/s, completing a 0-to-2-meter elevation in just 8 seconds. This rapid performance significantly reduces test cycle time for high-volume material impact testing workflows.

What automated functions does the instrument offer to ensure testing accuracy and consistency?

The tester features full-process automation including automatic zero-point calibration, pneumatic automatic hammer release, automatic impact execution, and integrated test cycle completion. The multi-stage speed control algorithm ensures precise hammerhead positioning without deviation.

How is the drop pipe designed to optimize testing performance and durability?

The drop pipe is engineered with dedicated exhaust ports to minimize wind resistance during hammer free-fall. It incorporates enhanced reinforcement to prevent damage and deformation, while the pneumatic hammer mechanism eliminates cable fatigue and leakage issues common in traditional designs.

Product Images
