LCD Display Pipe Tube Drop Hammer Test Equipment for Precise Impact Resistance Testing of Supply Sewage and Core Foam Pipes

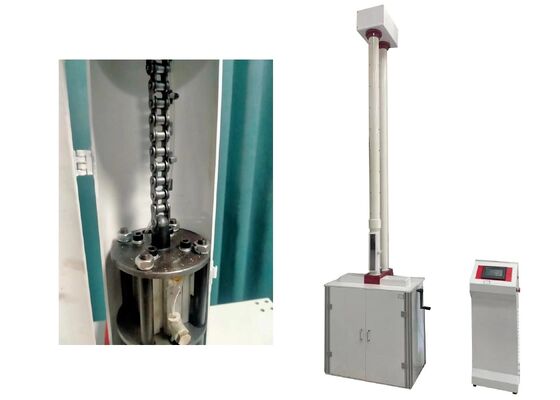

The LCD Display Pipe Drop Hammer Test Machine (Falling Weight Impact Tester) is specifically engineered for determining the external impact resistance of a diverse range of pipes including water supply pipes, sewage pipes, low-pressure water pipes, core-layer foam pipes, double-wall corrugated pipes, and other related configurations.

ASTM D2444, ISO4422, ISO3127, BSEN1411, BSEN744, JB/T9389, GB/T14152, GB/T14153, GB/T6112, GB/T5836, GB/T10002.1, GB/T10002.3, GB/T13664, GB/T16800, GB/T1847.

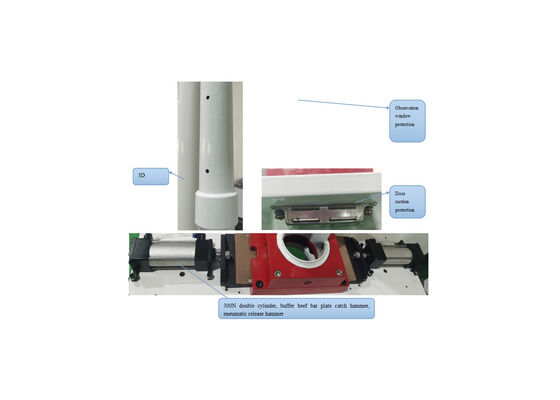

• Tri-Level Safety Protection: Sample chamber door safety guard, secondary observation window protection, and tertiary upper & lower travel limit protection
• High-Speed Lifting Performance: 250 mm/s lifting speed with high-torque stepper motor
• Intelligent Hammer Hover & Positioning: Multi-stage speed regulation with zero deviation control
• Exhaust-Optimized Drop Hammer Pipe: 3D-optimized design with integrated exhaust apertures
• Pneumatic Hammer Gripping & Release: 300N long-stroke dual-cylinder system with automatic locking
• Integrated & Modular Assembly: Aluminum alloy profile construction with standardized components
• Premium Build Quality: International brand components including Adker cylinders and Delta PLC systems
• Advanced Automation: Full automation including zero-point calibration, hammering, and detection

A1: The tester offers a test energy range of 0-300J (customizable for higher ranges upon request) with a measurement accuracy of ±0.5%, ensuring precise and reliable data for material impact resistance evaluation.

A2: It is specifically engineered for external impact resistance testing of non-metallic materials and products, including PVC, PE, PP-R, ABS pipes (water supply pipes, sewage pipes, double-wall corrugated pipes, etc.), rigid plastic sheets, and composite pipe samples.

A3: It adopts a tri-level safety protection system: Level 1 (sample chamber door safety guard), Level 2 (observation window & door protection), and Level 3 (upper & lower travel limit protection). Additional safeguards include anti-leakage, anti-short circuit, and anti-misoperation designs to comply with global industrial safety standards.

A4: Equipped with a high-torque stepper motor, the tester achieves a lifting speed of 250 mm/s (0-2 meters in 8 seconds). It employs a multi-stage speed regulation algorithm for intelligent hammer hovering, ensuring smooth deceleration and zero-deviation position control.

A5: The instrument features full automation, including automatic zero-point calibration, automatic hammer gripping/release, automated hammering, and real-time test data recording. It minimizes human intervention, reduces operational errors, and supports high-volume industrial quality control workflows.
