Versatile Drop Hammer Test Equipment for Assessing Impact Resistance of Metals Plastics Ceramics and Composite Materials

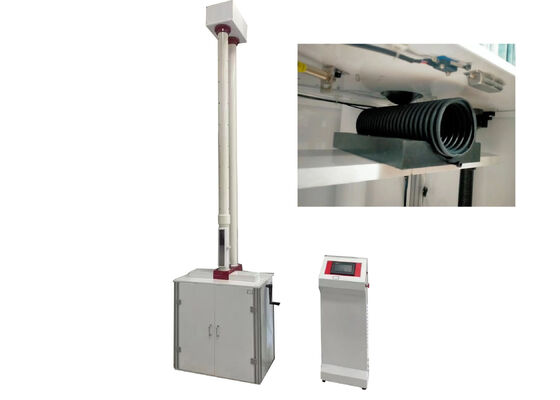

Large Image : Versatile Drop Hammer Test Equipment for Assessing Impact Resistance of Metals Plastics Ceramics and Composite Materials

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Versatile Drop Hammer Test Equipment For Assessing Impact Resistance Of Metals Plastics Ceramics And Composite Materials	Test Type:	Drop Hammer Test
Test Range:	0-300J	Display:	LCD
Control Mode:	Manual/Automatic	Max. Height:	2000mm
Min. Height:	50mm	Power Supply:	AC220V/50Hz
Highlight:	drop hammer test equipment for metals , impact resistance tester for plastics , versatile drop hammer for composite materials

Versatile Drop Hammer Test Equipment for Assessing Impact Resistance

The High-Performance Drop Hammer Test Equipment for Industrial Applications is engineered specifically for impact testing of non-metallic materials, including plastics, glass, ceramics, and other similar substrates. This specialized testing instrument provides precise data to determine anti-impact strength and enables comparative testing on materials of the same type or specification for objective quality assessment. The equipment supports both pass/fail and step gradient methods to accommodate diverse industrial quality control requirements.

Applications

The JHH Drop Hammer Testing Equipment is a reliable, high-precision instrument engineered to evaluate the external impact resistance of objects. Manufactured in Beijing, China, it features a test energy range of 0-300J with ±0.5% measurement accuracy and a minimum drop height of 50mm.

Key Features

Tri-Level Safety Safeguards

Level 1: Sample Door Safety Shield
Level 2: Observation Window Enclosure
Level 3: Upper & Lower Stroke Limits

Rapid Lifting Capability

Equipped with a high-torque stepper motor achieving 250 mm/s lifting speed, enabling travel from 0 to 2 meters in just 8 seconds for enhanced testing throughput.

Smart Hammer Stopping & Positioning

Multi-step speed control ensures stable hammerhead deceleration and precise positioning with no deviation, eliminating impact-induced errors.

Exhaust-Optimized Drop Hammer Tube

3D-engineered design with built-in exhaust apertures minimizes air resistance and features reinforced pipe collar structure for durability.

Pneumatic Gripper & Hammer Release System

300N long-stroke dual cylinder for robust operation
Cow tendon sheet hammer face for uniform impact transmission
Pneumatic release and automatic locking mechanisms
Safe performance with zero electromagnetic interference

Integrated & Modular Assembly

Mechanical Segment: Standard aluminum alloy assembly
Electronic Control: 7-inch touch screen with Delta PLC
Easy maintenance and future upgrades

Superior Construction & Safety

Core components from global brands including Adker cylinders, Delta touch screen and PLC, and Taiwan Mingwei power supply. Comprehensive safety features include leakage prevention, short-circuit protection, anti-static measures, and power outage backup.

Advanced Automation

Fully automated test cycle including automatic zero-point calibration, hammer clamping and release, test execution, and real-time data logging.

Technical Parameters

Property	Value
Display	LCD
Test Range	0-300J
Max. Drop Weight	15kg
Test Type	Drop Hammer Test
Max. Height	2000mm±2mm
Accuracy	±0.5%
Dimension	720×710×3650mm
Test Method	Method-A: Passage Method; Method-B: Gradient Method
Power Supply	AC220V/50Hz

Support and Services

We provide comprehensive technical assistance and after-sales support including equipment installation, maintenance, troubleshooting, and precision calibration. Our team offers tailored solutions and 24/7 support for all inquiries and technical issues.

Packing and Shipping

The equipment is securely packed in export-grade wooden crates with operation manual and all necessary accessories. Complete shipping documentation included with transparent pricing based on destination and shipping method.

Frequently Asked Questions

What is Drop Hammer Test Equipment?

A specialized testing instrument engineered by JHH in Beijing, China, designed to evaluate the impact resistance of objects.

What is the purpose of the Drop Hammer Test Equipment?

To assess the impact resistance of materials and products, ensuring quality and reliability in industrial applications.

Which products is the Drop Hammer Test Equipment applicable for?

Suitable for PVC-U water supply pipes, sewage pipes, low-pressure pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.

What is the measurement accuracy?

±0.5% measurement accuracy.

What is the maximum testing energy?

300 Joules (J) maximum test energy.

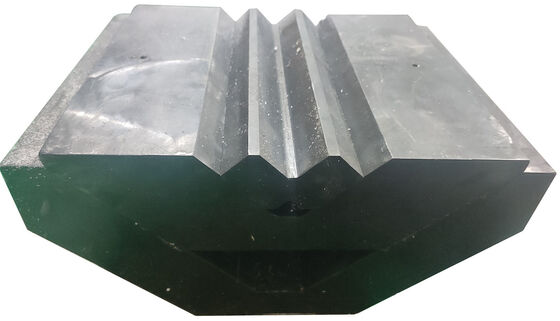

Product Images
