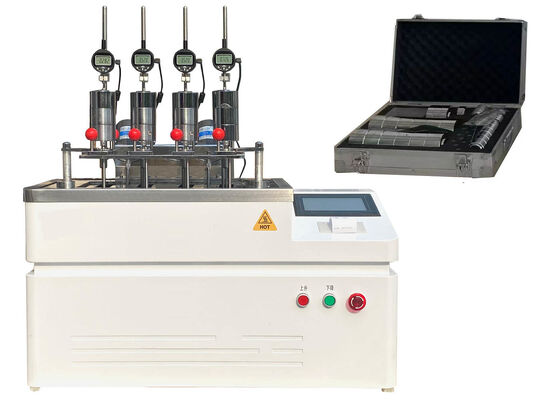

HDT VICAT Testing Machine
This four-column frame HDT/VICAT Softening Point Tester, designed in strict compliance with ISO 75-1 and ISO 306 international standards, is specifically engineered for thermoplastic materials. Its core function is to accurately determine the thermal deformation temperature (HDT) and other critical thermal properties of such materials.
The instrument is widely utilized in the production of plastic raw materials and finished products, as well as in scientific research institutions and academic teaching environments.
This series of testers features a compact structural design, sleek appearance, and reliable performance. It is equipped with integrated fume and odor removal functionality, along with an efficient cooling system to address pollution concerns during testing.
Adopting an advanced MCU (Microcontroller Unit) control system, the instrument enables fully automated temperature and deformation measurement/control, automatic calculation of test results, and can store up to 10 sets of test data for easy retrieval.
The tester is furnished with an English-language color touch screen, supporting intuitive automatic measurement operations. It also offers expandable connectivity to computers and printers for PC-based control.
Test Standards
ISO75-1, ISO306, GB/T1633-2000, GB/T1634-2001, GB/T8802, ASTM D 1525, ASTM D648-06
Technical Parameters
| Parameter |
Specification |
| Model |
XRW-300BT-Ⅳ |
| Temperature control range |
Room temperature ~300℃ |
| Maximum temperature error |
±0.5℃ |
| Heating rate |
50℃/h, 120℃/h, or set between 50-120℃/h |
| Temperature measurement point |
1 |
| Test frame number |
4 |
| Test frame lifting mode |
Auto |
| Range of deformation measurement |
-0.1~10mm |
| Maximum deformation error |
±0.005mm |
| Deformation resolution |
0.001mm |
| Sample supports span |
64mm, 100mm |
| Load bar and press (needle) weight |
74g |
| Voltage and power |
220V, 4KW |
| Thermal expansion coefficient of sample itself |
<0.005/100℃ |
| Working medium |
Methylsilicone oil or transformer oil |
| Cooling-down method |
Natural cooling above 150℃, water cooling below 150℃ or natural cooling |
Instrument Characteristics
1. Advanced Control System
Boasts ultra-high operational stability, featuring streamlined installation, testing, and data analysis processes for enhanced usability.
2. User-Centric Software Control System

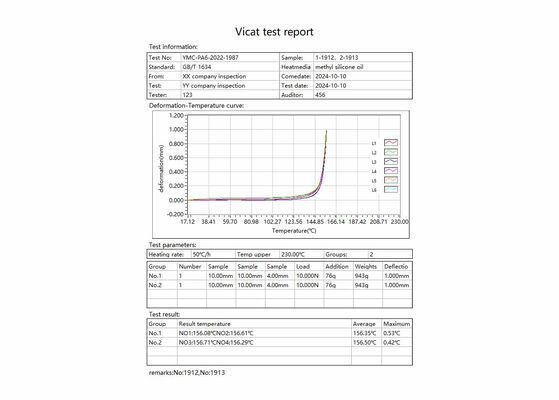

The touch screen displays real-time temperature and displacement data, enabling centralized data management and test report printing. It also supports seamless computer connectivity for extended data processing capabilities.
3. Four-Layer Safety Protection Mechanism
Integrated hardware and software safety designs ensure comprehensive protection, including a mechanical temperature upper-limit protection switch, software-based temperature upper-limit protection, automatic stop upon test completion, and administrator operation authorization.
4. High-Precision Measurement & Control System
Adopts high-performance temperature sensors and advanced capacitor grid meters to accurately detect micro-deformations of test specimens. Equipped with an advanced PID control algorithm and full photoelectric isolation phase-shift modulation module for heating control, ensuring the heating rate error is within ±0.5℃.
5. Electric Sample Frame Lifting Function
Equipped with an electric sample frame lifting mechanism, eliminating potential damage risks associated with manual lifting of the test frame and improving operational safety.
Support and Services
Our comprehensive technical support and after-sales services include:
- On-site installation and commissioning support
- Professional training on standardized operation and maintenance protocols
- Regular precision calibration services
- Timely repair and preventive maintenance services
- Round-the-clock technical support via phone, email, or online consultation
Packing and Shipping
The HDT VICAT Testing Machine is packaged in a robust export-grade wooden crate to ensure safe transportation. Inside the crate, the machine is securely fastened with high-density foam padding, effectively preventing impact or vibration-induced damage during transit.
Shipping Arrangements
Shipping is orchestrated by our dedicated logistics team to guarantee timely and reliable delivery. We collaborate with reputable carriers to ensure safe, efficient, and damage-free delivery.
Frequently Asked Questions
What is the brand name of the VICAT Testing Machine?
The brand is JINHAIHU.
What is the model number of the VICAT Testing Machine?
The model number is XRW-300F.
What certification does the VICAT Testing Machine have?
It is certified to ISO 9001.
Where is the VICAT Testing Machine manufactured?
It is manufactured in Beijing, China.
What is the minimum order quantity (MOQ) of the VICAT Testing Machine?
The minimum order quantity (MOQ) is 1 set.
What is the price range of the VICAT Testing Machine?
The price range is 2,400 ~ 6,000 USD.
What is the supply capacity of the VICAT Testing Machine?
The supply capacity is 15 sets per month.
What is the delivery time for the VICAT Testing Machine?
The delivery time is 10 ~ 15 working days.
How is the VICAT Testing Machine packaged?
It is packaged in standard export-grade wooden cases.
What are the payment terms for the VICAT Testing Machine?
The payment terms include T/T, L/C, D/A, D/P, Western Union, and MoneyGram.
