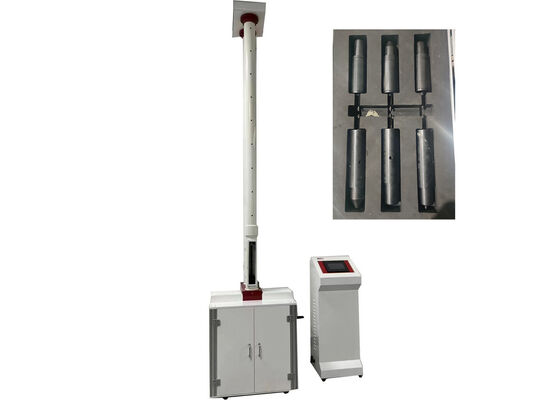

Drop Hammer Test Equipment Offering Versatility in Testing Various Sample Sizes and Shapes Under Controlled Conditions
The Drop Hammer Impact Tester / Drop Weight Tear Tester is specifically engineered to conduct impact testing on plastic pipes, sheet metals, and their finished products. Its core purpose is to accurately evaluate and determine the impact resistance properties of these materials, providing reliable data support for material quality control and product performance validation.

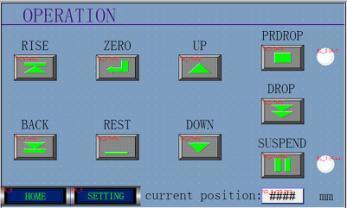

The control system of the tester adopts advanced digital control technology, enabling precise parameter setting, automatic zero adjustment, and automated hammer lifting and dropping. Notably, it is equipped with a built-in anti-secondary impact mechanism, which effectively prevents unintended secondary impacts during the test process—ensuring the accuracy of test results and enhancing operational safety.
Product Structure and Working Principle
Core Component Composition
- Workbench
- Secondary impact prevention mechanism
- Support tube
- Guide tube
- Hammer body
- V-block assembly
- Automatic drop hammer mechanism
- Reducer
- Electric control box
- Support bracket
Operating Principle
A hammer holder is mounted inside the guide tube. Driven by a motor and reducer, the holder hoists the hammer body to the preset test height. Activating the drop trigger switch releases the hammer body to fall freely within the guide tube and strike the test specimen, thereby fulfilling the impact test objectives.
Impact Energy Calculation & Secondary Impact Prevention
The impact energy is precisely calculable based on the hammer body's weight and preset drop height. Upon striking the test specimen, the device prevents the hammer body from rebounding and causing secondary impact. Equipped with photoelectric sensing control technology, the system detects the rebounding hammer body in real time and triggers the secondary impact prevention mechanism to rapidly clamp the hammer. This design effectively eliminates the risk of secondary impact, ensuring the accuracy and reliability of test results.
V-block Assembly Adjustment Mechanism
The V-block assembly is mounted beneath the workbench, with two guide rods installed on its both sides. Rotation of the handwheel drives the vertical elevation of the V-block assembly, enabling precise positioning of test specimens of different sizes and shapes.
Technical Parameters
| Parameter |
Specification |
| Model |
XJL-300D |
| Ambient temperature |
10℃-35℃ |
| Drop hammer quality |
0.5kg-15kg |
| Hammer diameter |
D25mm, D90mm |
| Height of the fall |
50mm-2000mm, error≤±2mm |
| Diameter of the sample |
Φ10mm-Φ450mm |
| Deviation of impact center from fixture center |
≤2mm |
| V-type supporting |
120° |
| Power source |
220VAC±10% |
| Outline dimension |
730mm×700mm×3650mm |
| Net weight |
300kg |
Support and Services
We provide end-to-end technical support and professional after-sales services for our Drop Hammer Test Equipment. Our team of certified engineers and technicians delivers specialized expertise covering on-site installation, scheduled preventive maintenance, rapid troubleshooting, precision calibration, and other value-added services. We also offer customized solutions engineered to address your unique testing requirements and application scenarios.
We are dedicated to delivering industry-leading customer service and technical support. Our professional support team is available 24/7 to promptly address your inquiries, resolve technical issues, and ensure uninterrupted operation of your equipment.
For further details or personalized consultation, please feel free to contact us at your earliest convenience.
Packing and Shipping
The Drop Hammer Test Equipment will be packed in robust export-grade wooden crates to ensure maximum protection during transit. Each crate is configured to include the main unit, detailed operation and maintenance manuals, as well as all relevant spare parts and accessories required for on-site setup and initial operation.
Clear shipping labels will be prominently affixed to the exterior of each crate, specifying the equipment name, model number, and unique serial number—facilitating easy identification, inventory management, and customs clearance procedures.
A complete set of shipping documentation will be prepared to accompany the shipment, including commercial invoices, detailed packing lists, and all supplementary paperwork mandated for international freight forwarding (e.g., customs declaration forms).
The shipping cost is calculated based on the final delivery destination and the selected shipping mode (e.g., sea freight, air freight), with transparent pricing provided prior to order confirmation.
Frequently Asked Questions
Q1: What is Drop Hammer Test Equipment?
Drop Hammer Test Equipment is a precision impact testing instrument manufactured by JHH, with its production base located in Beijing, China. It is specifically engineered to determine the impact resistance of materials and finished products.
Q2: What is the purpose of Drop Hammer Test Equipment?
The core purpose of this Drop Hammer Test Equipment is to accurately assess the impact resistance of target materials and products. This critical testing process verifies compliance with industry quality standards, ensuring the structural integrity and operational reliability of the tested items in real-world service scenarios.
Q3: What products can Drop Hammer Test Equipment be used for?
This equipment is primarily designed for impact resistance testing of a broad range of pipe products, including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes, and PE water supply pipes. It is also suitable for performance evaluation of rigid plastic sheets.
Q4: What is the accuracy of Drop Hammer Test Equipment?
The Drop Hammer Test Equipment boasts a high measurement accuracy of up to 0.5%, ensuring precise and repeatable test data for quality control and R&D applications.
Q5: What is the maximum testing force of Drop Hammer Test Equipment?
The Drop Hammer Test Equipment features a maximum test energy rating of 300 joules (300J).
