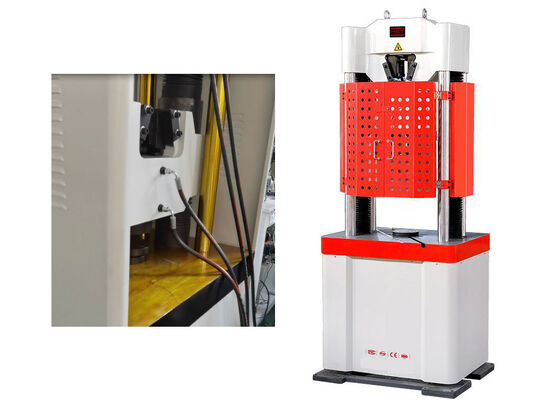

WAW-2000D Electro-Hydraulic Servo Universal Testing Machine
The WAW-2000D Electro-Hydraulic Servo Universal Testing Machine integrates a high-stiffness mainframe, electro-hydraulic servo power unit, electronic measurement system, and microcomputer-based control system—delivering a sophisticated, integrated solution for material and component testing.
Core Component Advantages
High-Stiffness Mainframe
Adopts a four-column, double-beam high-stiffness structure. All load-bearing components are designed via finite element analysis (FEA), precision-machined, and optimized for structural integrity, ensuring exceptional rigidity and load-bearing stability during high-force testing.
Advanced Measurement & Control System
Equipped with a next-generation high-performance, intelligent full-digital controller. The control software integrates advanced measurement and control algorithms, enabling precise regulation of the entire test cycle (from load application to data acquisition). It fully complies with domestic and international material testing standards, guaranteeing test result validity and comparability.
Patented Electro-Hydraulic Servo Power Unit
Features a patented load-adaptive adjustment and control system. Based on real-time test requirements (system load, test speed), the unit dynamically adjusts oil pump output flow and system pressure—minimizing hydraulic system heat generation, reducing energy consumption, and extending the service life of hydraulic components.
Product Core Values
The testing machine boasts high measurement accuracy, powerful functional versatility, user-friendly operation, and long-term stability and reliability. It serves as a critical instrument for evaluating the physical properties, mechanical performance, processability, structural seismic strength, and internal/external defects of various materials, components, and products under diverse environmental and simulated working conditions.
Test Capabilities & Application Scope
It can perform a comprehensive range of tests, including tension, compression, bending, shear, and more. Widely adopted in universities, research institutes, testing laboratories, aerospace, military, metallurgy, machinery manufacturing, transportation infrastructure, construction materials, and other industries, it supports precision material research, material analysis, new material development, and quality control processes—catering to both R&D and industrial production testing needs.
Price Advantage
We continuously strengthen our independent research and development (R&D) capabilities and have established an in-house processing center to manufacture core components independently. This vertical integration allows us to reduce intermediate costs while maintaining uncompromised product quality—delivering superior cost-performance that low-cost, inferior alternatives cannot match.
Our high-quality testing equipment generates far greater long-term value for customers: by minimizing equipment failure rates, we not only lower your maintenance expenses but also enhance operational efficiency. With a competitive price point paired with reliable performance, our products provide tangible, sustainable benefits—avoiding the hidden costs (e.g., frequent downtime, repair fees, productivity losses) associated with low-quality equipment.
Compliance Standards
ISO 6892, ISO 6934 BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
Main Technical Parameters
| Parameter |
Specification |
| Model |
WAW-2000D |
| Structure |
6 Column (Four Columns Two Ball Screws) |
| Control Way |
Constant Stress, Constant Deformation, Constant Displacement Three Closed Loop Control and Program Control |
| Max. Load |
2000 KN (200 TONS) |
| Load Accuracy |
≤±1% (Optional: ≤± 0.5%) |
| Load Range |
2%~100%FS (40KN~2000KN) (Optional: 0.4%-100%FS (8KN~2000KN)) |
| Load Resolution |
1/300000 |
| Deformation Measurement Range |
2%~100%FS |
| Deformation Accuracy |
≤±1% (Optional: ≤± 0.5%) |
| Displacement Resolution |
0.01mm |
| Displacement Error |
≤±0.5% |
| Max. Piston Stroke |
250mm |
| Max. Piston Moving Speed |
0-50mm/min Stepless Speed Adjusting |
| Crossbeams Lifting Speed |
200mm/min |
| Max. Tension Test Space |
1000mm (Can Be Customized) |
| Max. Compression Test Space |
750mm (Can Be Customized) |
| Center Spacing Between Columns |
910mm |
| Column Effective Spacing |
780mm |

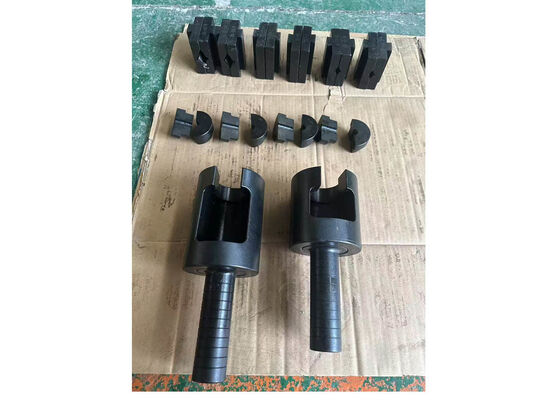

| Clamping Method |
Hydraulic Automatic Clamp |
| Round Specimen Clamping Range |
Φ12-Φ30mm, Φ30-Φ50mm, Φ50-Φ70mm |
| Flat Specimen Clamping Range |
0-35mm (Optional: 35-70mm) |
| Flat Specimen Clamping Width |
115mm |
| Flat Specimen Clamping Length |
160mm |
| Compression Plate Size |
Φ160mm |
| Bending Roller Distance |
450mm |
| Width Of Bending Rollers |
120mm |
Packing and Shipping
Frequently Asked Questions
Q1: Is your company a trading firm or a manufacturing factory?
We are a factory-integrated trading enterprise with 18 years of focused experience in the testing instruments industry and 14 years of export expertise. We operate our own production facility, enabling vertical integration from R&D to manufacturing.
Q2: How can I select the most suitable testing equipment?
Our professional technical team will provide optimal recommendations once you share your specific testing requirements, including test type (e.g., tension, compression, thermal analysis), material specifications, and technical parameters (e.g., load range, temperature range). We tailor solutions to align with your application scenarios and industry standards.
Q3: What are your delivery terms?
In most cases, we maintain ready stock for standard models. For non-stock or customized orders, the typical delivery time is 15-20 working days upon receipt of the deposit. For urgent requests, we can arrange priority production to shorten lead times—please inform us of your timeline requirements.
Q4: Do you offer customization services?
Absolutely. We provide both standard testing machines and tailored solutions to meet your unique needs, including non-standard specifications, functional upgrades, system integration, and compatibility adaptations with third-party equipment. Please share your detailed requirements, and our R&D and engineering teams will strive to fulfill your customization needs.
Q5: Can we visit your factory before placing an order?
We warmly welcome and sincerely invite you or your team to visit our factory. We will assist with hotel reservations and provide airport pickup services. During the visit, you can witness our production process, R&D capabilities, quality control system, and in-house processing center for core components—helping you gain full confidence in our manufacturing strength.
Q6: What is your product warranty policy?
Generally, we offer a 1-year warranty covering manufacturing defects under normal operating conditions. Within the warranty period, we provide free technical support (via phone, email, or remote access) and free replacement of defective parts. When necessary, we can dispatch our certified engineers to your site for on-site maintenance and troubleshooting.
Q7: How is the equipment packaged, and is it protected during transportation?
All testing machines are packaged in standard export-grade wooden crates with internal shock-absorbing materials, providing robust protection against transit damage (e.g., impact, vibration, moisture). Our extensive overseas shipping experience (via sea and air) has proven a zero-damage record for our packaged equipment—we ensure the safe delivery of your order.
