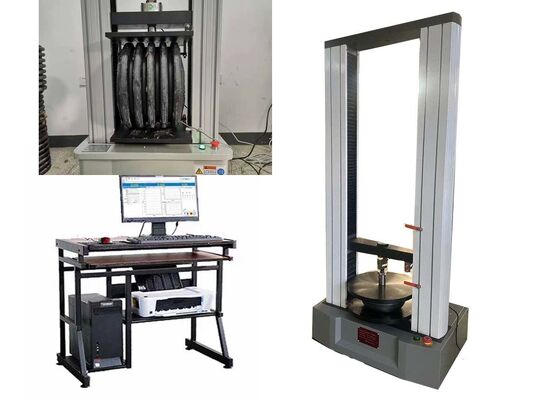

Compact Electronic Universal Testing Machine for Material Testing and Tensile Strength Measurement in Laboratory Settings

Large Image : Compact Electronic Universal Testing Machine for Material Testing and Tensile Strength Measurement in Laboratory Settings

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001 CE
Model Number:	XWW-10KN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Compact Electronic Universal Testing Machine For Material Testing And Tensile Strength Measurement In Laboratory Settings	Keyword:	Machine To Test Tensile Strength
Customized Support:	OEM, ODM, OBM	Capacity:	5KN, 10KN, 20KN, 30KN, 50KN
Model:	XWW-5KN, 10KN, 20KN, 30KN, 50KN	Application:	PVC, PE, ABS, PP, PMMA, PC, RAHECO, Etc
Accuracy Range:	±0.5%	Certificate:	ISO, CE
Power:	220V, 50HZ(can Customized)	Warranty:	12 Months
Highlight:	compact electronic testing machine , universal testing machine for tensile strength , laboratory material testing machine

Compact Electronic Universal Testing Machine

A high-precision, multi-functional material testing solution designed for evaluating mechanical properties of diverse materials in laboratory settings. This computerized system comprehensively tests metallic materials, non-metallic materials, composite materials, and polymer materials under multiple mechanical loading conditions.

Key Applications

Performs tension, compression, bending, shear, peeling, tearing, and other relevant mechanical stress tests to determine material performance characteristics.

Advanced Features

Computer + Professional Software Integrated Control: Real-time display of 6 types of test curves including Force-Displacement, Force-Deformation, Stress-Displacement, Stress-Deformation, Force-Time, and Displacement-Time
Optional Extensometer Configuration: Supports precise deformation measurement for rubber, metallic materials, and other test specimens
High-Temperature Testing Compatibility: Equipped for reliable high-temperature tensile, compression, or bending tests
Versatile Fixture Adaptability: Compatible with manual, hydraulic, and pneumatic test fixtures
Customizable Dimensions & Standard Compliance: Tailorable height and width dimensions to meet international standards
Clear Data Presentation: Intuitive data output and test result visualization with standardized formatting

Compliance Standards

GB/T 2611, GB/T 16491, GB/T 13634, ASTM D638-14, ASTM E8 - 16, ASTM A370-05, ISO 527/1, ISO 178, ISO 604, ISO 6892-1

Software Capabilities

Automatic Zero Setting functionality with comprehensive calculation of key mechanical properties including:

Maximum Force
Upper Yield Strength
Lower Yield Strength
Tensile Strength
Compressive Strength
Elastic Modulus
Percentage Elongation
Other critical mechanical performance indicators

Technical Specifications

Parameter	Specification
Model	XWW-5KN/10KN/30KN/50KN
Type	Double column model
Accuracy Grade	Class 1 (Class 0.5 optional)
Force-measuring Range	1%~100%FS(0.4%~100%FS optional)
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	±1%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0.05~500mm/min
Displacement Speed Accuracy	≤ ±0.5%
Metal Extensometer Accuracy Grade	±0.5%
Test width	380mm (can up to 1200mm)
Tensile Space	700mm
Compression Space	1000mm

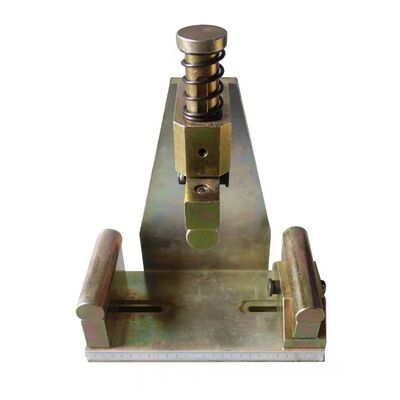

Clamps	Tensile, compression, bending fixture
PC System	Equipped with brand computer
Power Supply	AC 220V±10%, 50Hz (customizable)
Size of the host	7004002000mm
Packing size & Weight	8005002100mm, about 350kg

Frequently Asked Questions

Q1: What is the maximum test force range and load accuracy?

A1: Standard range of 0.5 kN to 600 kN (customizable for higher ranges) with load accuracy of ±0.5% of the indicated value (ISO 7500-1 Class 0.5).

Q2: What types of sensors are used and their advantages?

A2: High-precision strain gauge load cells with excellent long-term stability, low drift, and wide measurement range. Optional non-contact video extensometers or contact extensometers provide accurate strain measurement with resolution up to 0.1 μm.

Q3: What is the adjustable test speed range and compatibility?

A3: Test speed range from 0.001 mm/min to 500 mm/min with stepless speed regulation, covering requirements from brittle materials to ductile materials.

Q4: Which international/national standards is the machine compliant with?

A4: Fully compliant with ISO 6892, ASTM D638, GB/T 1040, GB/T 228.1 and other major standards, with customizable configurations available.
