Drop Hammer Test Equipment Supporting Comprehensive Impact Testing Protocols to Ensure Material and Product Safety Compliance

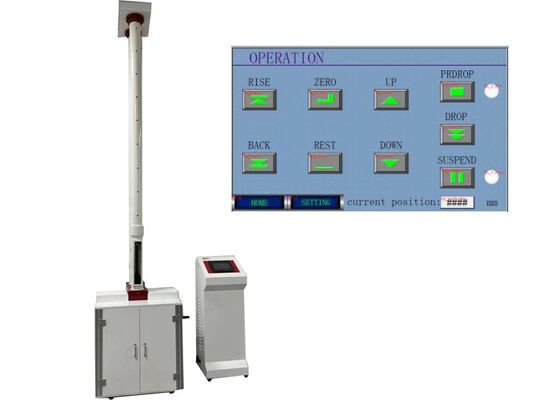

Large Image : Drop Hammer Test Equipment Supporting Comprehensive Impact Testing Protocols to Ensure Material and Product Safety Compliance

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XJL-300D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Drop Hammer Test Equipment Supporting Comprehensive Impact Testing Protocols To Ensure Material And Product Safety Compliance	Test Type:	Drop Hammer Test
Test Range:	0-300J	Drop Hammer Quality:	0.5kg-15kg
Control Mode:	Automatic	Max. Height:	2000mm
Min. Height:	20mm	Power Supply:	AC220V/50Hz
Highlight:	drop hammer test equipment with warranty , impact testing protocols for material safety , drop hammer equipment for product compliance

Drop Hammer Test Equipment Supporting Comprehensive Impact Testing Protocols to Ensure Material and Product Safety Compliance

Product Overview

The XJL series pipeline drop hammer impact testing machine is specifically engineered for determining the impact toughness of thermoplastic pipelines, including PVC-U, PVC-C, PP, PE, and underground communication pipes. This essential testing instrument evaluates the impact resistance performance of pipeline materials for manufacturing enterprises, building materials sectors, and scientific research organizations.

Product Structure & Features

This testing machine integrates a secondary impact prevention mechanism and utilizes an AC servo system as its core drive unit. It delivers exceptional performance with high hammerhead speed, excellent positioning accuracy, and superior testing efficiency.

Minimal air resistance and automatic height measurement capability
Stepless adjustable drop hammer height with real-time automatic calibration
Modular hammer weight assembly for flexible configuration
100% secondary impact prevention capture rate
Adjustable V-shaped iron for specimens with varying diameters

Compliance Standards

Compliance with standards ZB N72 026 ISO 3127 GB / T 18477 ISO4422.

Technical Specifications

Model	XJL-300D
Ambient temperature	10℃-35℃
Drop hammer quality	0.5kg-6.5kg
Hammer diameter	D25mm, D90mm and other
Height of the fall	0mm-2000mm, error≤±2mm
Diameter of the sample	Φ10mm-Φ450mm
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
Power source	220VAC±10%
Outline dimension	715mm×700mm×3700mm
Net weight	310kg

Technical Support & Services

We provide end-to-end technical support and comprehensive after-sales services throughout the entire equipment lifecycle. Our specialized engineering team offers professional guidance for installation, commissioning, routine maintenance, technical troubleshooting, and precision calibration.

24/7 dedicated support team availability
Tailored technical solutions for unique application requirements
Minimal downtime and optimal operational efficiency

Packing & Shipping

The equipment is securely packaged in export-grade wooden crates engineered for international transit durability. Each crate includes the test equipment, comprehensive operation manual, and all accompanying spare parts.

Shipping Arrangements:

Complete shipping documentation for logistics and customs clearance
Transparent pricing based on destination and shipment method

Frequently Asked Questions

What is the Drop Hammer Test Equipment?

The Drop Hammer Test Equipment is a specialized testing instrument designed and manufactured by JHH, Beijing, China. It evaluates the impact resistance performance of materials and products through standardized drop hammer impact tests.

What is the core purpose of the Drop Hammer Test Equipment?

The primary purpose is to assess the impact resistance of target materials or finished products, verifying quality compliance, ensuring structural reliability, and supporting quality control throughout production.

Which products/materials is the equipment applicable to?

It is widely suitable for various pipes including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, transmission pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.

What is the measurement accuracy of the equipment?

The equipment delivers high-precision testing with measurement accuracy of up to ±0.5%, ensuring reliable and repeatable test results.

What is the maximum testing energy of the equipment?

The maximum testing energy is 300 Joules (J), capable of covering the impact testing requirements of most industrial pipes and rigid plastic materials.
