Servo Hydraulic Testing Machine Designed to Meet ISO 6935 Standards for Hot Rolled Ribbed Bars and Other Metal Materials

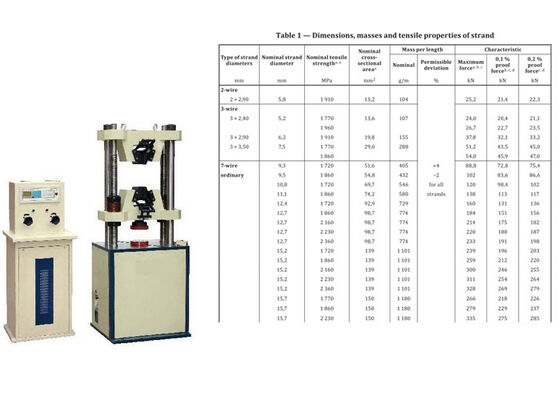

Large Image : Servo Hydraulic Testing Machine Designed to Meet ISO 6935 Standards for Hot Rolled Ribbed Bars and Other Metal Materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	WAW-300B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	7~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Servo Hydraulic Testing Machine Designed To Meet ISO 6935 Standards For Hot Rolled Ribbed Bars And Other Metal Materials	Model:	WAW-300B
Structure:	4 Columns	Control Way:	Manual And Electro-hydraulic Servo
Max.load:	300KN	Max. Tension Test Space:	750(can Customize)
Max.Compression Test Space:	650mm (can Customize)	Load Range:	0.5%-100%FS
Highlight:	Servo Hydraulic Testing Machine for ISO 6935 , Hydraulic Testing Machine for metal materials , Servo Testing Machine for ribbed bars

Servo Hydraulic Testing Machine Designed to Meet ISO 6935 Standards

This WAW-series microcomputer-controlled electro-hydraulic servo universal testing machine is engineered for tensile, compressive, bending, and shear performance tests on metallic and non-metallic materials, delivering precise data for material characterization and quality validation.

Applications

Widely applicable across diverse industrial, academic, and research fields including:

Metallurgy and construction engineering
Light industry, aviation, and aerospace
Advanced materials manufacturing
Colleges, universities, and research institutions

All test operations comply with GB228-2010 metallic material tensile testing standards, ensuring accuracy and compliance with industry norms.

Key Features

Robust Framework: Dual-column, dual-lead-screw design ensures high rigidity and stable load-bearing capacity
Versatile Configuration: Lower-mounted cylinder with separate tensile and compression/bending test spaces
Precise Control: Automatic closed-loop control for uniform loading/unloading speeds
Secure Gripping: Hydraulic wedge-type clamping mechanism prevents specimen slippage
Comprehensive Reporting: Automated data archiving and report generation with test curves and compliance analysis

Price Advantage

Our vertical integration through in-house R&D and dedicated machining centers allows us to eliminate third-party markups while maintaining uncompromised quality. This approach delivers:

Lower total cost of ownership (TCO)
Reduced maintenance expenditures
Enhanced testing operational efficiency
Long-term reliability and consistent test data

Compliance Standards

ISO 6892, ISO 6934, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

Safety Protection Systems

Overload Protection: Automatically triggers when test force exceeds 2%-5% of maximum range

Stroke Limit Protection: Activates when hydraulic piston reaches upper mechanical limit

Technical Specifications

Parameter	Specification
Model	WAW-300B
Max. Test Force	300 kN
Structure	Two columns two ball screws, oil cylinder down-setting type
Load Range	1%-100%
Middle Beam Elevating Speed	200 mm/min
Max. Tensile Space	750 mm
Max. Compression Space	650 mm
Piston Stroke	250 mm
Round Sample Grip Diameter Range	Φ4-30 mm
Plat Sample Grip Thickness Range	0-15 mm
Power Total	3.2 KW
Compression Plate Size	Φ160 mm
Bending Support Roller Distance	350 mm

Frequently Asked Questions

Q1: Is your company a trading firm or a manufacturing factory?

We operate as an integrated factory and trading entity with 18 years in testing instruments and 14 years in international export, combining manufacturing capabilities with professional global trade services.

Q2: How can I select the most suitable testing equipment for my needs?

Our technical specialists provide tailored recommendations based on your test type requirements and technical specifications.

Q3: What are your delivery terms and lead times?

Standard instruments are typically available from stock, while custom equipment requires 15-20 working days from deposit receipt.

Q4: Do you provide customization services for testing equipment?

Yes, we offer comprehensive customization services to design and manufacture testing machines tailored to your unique technical requirements and workflow demands.
