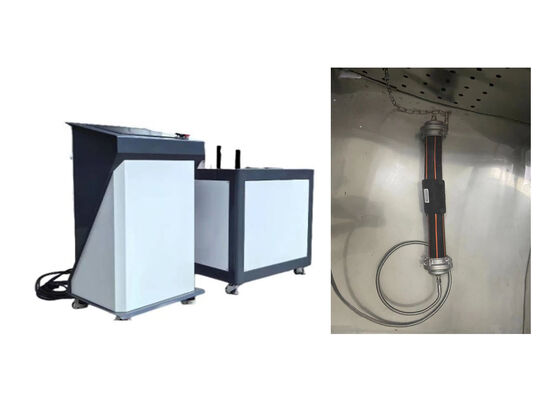

Hydrostatic Pressure Testing Machine built to deliver precise pressure control and detailed test data for control teams

Large Image : Hydrostatic Pressure Testing Machine built to deliver precise pressure control and detailed test data for control teams

Product Details:

Place of Origin:	Beijing, China
Brand Name:	JHH
Certification:	ISO9001, CE
Model Number:	XGY-16C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Hydrostatic Pressure Testing Machine Built To Deliver Precise Pressure Control And Detailed Test Data For Control Teams	Testing Range:	0-16MPA
Accuracy:	-1%~+2%	Test Temperature Range:	15~95℃
End Caps:	Φ8-1800mm	Display:	LCD
Test Curve:	Pressure-time And Pressure-temperature	Safety Protection:	Over Pressure/Over Temperature
Test Mode:	Automatic	Test Medium:	Water
Customized Support:	OEM	Certificate:	CE, ISO
Highlight:	Hydrostatic Pressure Testing Machine with precise control , Hydrostatic Pressure Testing Machine for test data , Hydrostatic Pressure Testing Machine with warranty

Hydrostatic Pressure Testing Machine

Built to deliver precise pressure control and detailed test data for control teams, this hydrostatic pressure testing machine ensures operational excellence in quality assurance processes.

Applications

This hydrostatic pressure testing machine boasts broad applicability across diverse product testing scenarios, primarily engineered for evaluating thermoplastic pipes utilized in water supply and drainage systems, heating systems, and other industrial settings.

It is particularly valuable in the construction sector, serving as a critical quality assurance tool to uphold the quality, safety, and reliability of pipes integrated into buildings and critical infrastructure projects.

Product Description

This Hydrostatic Pressure Testing Machine is equipped with overpressure and overtemperature safety protection systems, which guarantee operational safety during the entire testing process. The overpressure protection automatically and promptly cuts off the water inlet supply when the pressure exceeds the preset threshold, while the overtemperature protection shuts down the heating power supply immediately once the temperature surpasses the set value—effectively mitigating operational risks.

Holding CE and ISO certifications, the machine validates its superior quality, reliability, and full compliance with international industry standards. With a test accuracy of -1% to +2%, it delivers precise, repeatable test data for consistent quality evaluation. Boasting a wide testing pressure range of 0-16 MPa, it covers diverse plastic pipe specifications to meet multi-scenario testing needs.

Whether you operate in plastic pipe manufacturing, quality inspection, or third-party testing sectors, this Plastic Pipe Hydrostatic Pressure Testing Machine serves as a premium solution for hydrostatic pressure testing of plastic pipes. Its robust safety protection, international certifications, high accuracy, and broad pressure range make it an indispensable asset for any facility handling PPR, PB, PERT, and other thermoplastic pipes across various specifications.

Key Features

Parameter	Details
Product Name	Hydrostatic Pressure & Burst Testing Machine
Test Accuracy	-1% to +2%
Displayed Test Curves	Pressure-Time & Pressure-Temperature
Test Temperature Range	15-95 °C
Test Pressure Range	0-16 MPa
Application Scope	Applicable to hydrostatic pressure and burst testing of PE, PVC, PPR, PB, PERT, and other thermoplastic pipes and fittings across various specifications

Compliance Standards

ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.

Technical Parameters

Parameter	Specification
Model	XGY-16C
Diameter range	Φ8-1800mm
Stations	3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc (customizable)
Control mode	Micro-control, industrial PC control
Display mode	Industrial PC LCD color display
Storage mode	PC storage
Print mode	Color printer output
Test pressure range	0.1-16MPa
Control accuracy	±1%
Display resolution	0.01MPa
Working range	5%~100%FS
Indication error	±1%
Timer range	0~10000h
Timer accuracy	±0.1%
Timer resolution	1s
Power	380V 50Hz three-phase four-wire 1.5KW
End caps models	from Φ8 to 1800mm

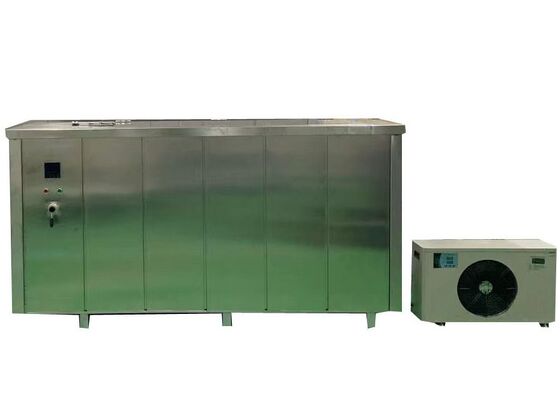

Water tank size	according to the pipe size
Temperature range	15-95℃
Dimensions (three stations)	715×625×1700(mm) or others

Frequently Asked Questions

Q1: What is the brand and manufacturing location of the Plastic Pipe Hydrostatic Pressure Testing Machine?

A1: The machine is branded JHH and manufactured in Beijing, China—backed by years of expertise in testing instrument engineering.

Q2: What is the core purpose of this Hydrostatic Pressure Testing Machine?

A2: It is specifically designed to evaluate the hydrostatic pressure resistance and burst strength of plastic pipes, ensuring compliance with quality and safety standards.

Q3: Which types of pipes can this machine test?

A3: It is applicable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, PE-X, and other thermoplastic/composite pipe variants.

Q4: What is the accuracy specification of the Hydrostatic Pressure Testing Machine?

A4: The machine features a full-scale accuracy of ±0.1%—guaranteeing precise and reliable test data for quality evaluation.

Q5: What is the maximum test pressure capacity of the machine?

A5: It can achieve a maximum test pressure of 10 MPa, equivalent to 100 bar or 1450 psi—covering most industrial and construction pipe testing requirements.
