Drop Hammer Test Equipment Offering Durable Construction and Performance for Continuous in Material Testing Laboratories
Product Description

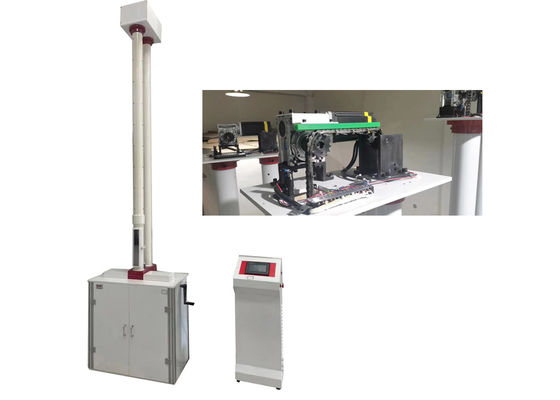

The Falling Weight Impact Tester is specifically engineered for impact performance testing of plastic pipes, sheet metals, and related products. Its core purpose is to accurately evaluate the impact resistance properties of these materials, providing critical data for quality control and material qualification.
The control system incorporates advanced digital control technology, enabling precise parameter setting, automatic zero calibration, and automated hammer lifting and release. This intelligent design not only streamlines operational workflows but also effectively eliminates secondary impacts--ensuring consistent test conditions and reliable, repeatable results.
Instrument Features
Three-Level Safety Protection System
The tester is equipped with a multi-layer interlock protection mechanism to ensure operational safety:
- 1st Level: Sample Door Interlock Protection
- 2nd Level: Observation Window Interlock Protection
- 3rd Level: Upper & Lower Limit Position Protection
High-Speed Lifting Performance
Powered by a high-torque stepping motor, the tester achieves a lifting speed of up to 250 mm/sec--enabling the hammer to reach 2 meters from 0 in just 8 seconds. This significantly shortens test cycles and improves efficiency for high-throughput testing scenarios.
Intelligent Hover Function
Incorporates a multi-stage speed control algorithm to ensure smooth hammer deceleration and precise positioning with zero deviation. The advanced control logic eliminates inertial displacement, guaranteeing consistent test conditions and reliable data repeatability.
3D-Modeled Drop Hammer Guide Pipe
The drop hammer guide pipe is optimized via 3D modeling, integrating exhaust holes to minimize wind resistance during hammer descent--ensuring stable impact force transmission. Additionally, a hoop reinforcement structure is added to prevent structural failure and deformation, enhancing long-term operational reliability in rigorous testing environments.

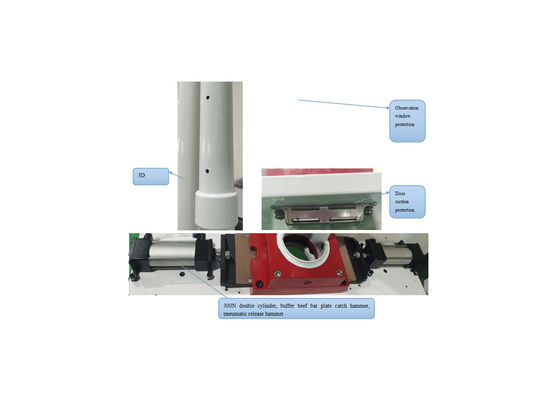

Pneumatic Hammer Lifting & Release Mechanism
Abandoning traditional electromagnetic hammer mechanisms, the tester adopts a high-force pneumatic configuration for superior performance:
- Equipped with a 300N long-stroke dual air cylinder for powerful, consistent operation
- Features a rubber tendon plate hammer surface to ensure stable, non-damaging impact on specimens
- Pneumatic lifting/release design fundamentally eliminates issues such as cable bending, wire breakage, and electrical leakage common in electromagnetic systems
- Integrates a pneumatic automatic locking system, delivering enhanced safety and operational reliability
Integrated & Modular Assembly Design
- Mechanical Structure: Utilizes standardized aluminum alloy profile assembly, achieving process standardization, modular installation, and a lightweight yet high-strength design
- Electrical System: Configured with a 7-inch touchscreen and Delta PLC, ensuring intuitive operation, stable performance, and convenient maintenance
Technical Parameters
| Model |
XJL-300D |
| Ambient temperature |
10℃-35℃ |
| Drop hammer quality |
0.25kg-10kg, 0.125Kg/per increase |
| Hammer diameter |
D25mm,D90mm |
| Height of the fall |
40mm-2000mm,error≤±2mm |
| Diameter of the sample |
Φ10mm-Φ450mm |
| Deviation of impact center from fixture center |
≤2mm |
| V-type supporting |
120° |
| source |
220VAC±10% |
| Outline dimension |
730mm×700mm×3650mm |
| Net weight |
300kg |
Main functions
The Dropping Hammer Impact Tester serves as a widely recognized precision testing instrument specifically engineered for evaluating the external impact strength of plastic pipes, plastic sheets, and non-metallic materials. It is a critical tool for performance assessment, quality control, and material qualification in the plastics, construction, and manufacturing industries.
For plastic pipes, the tester provides comprehensive impact testing coverage for a diverse range of products, including but not limited to: PVC-U water supply pipes, low-pressure water supply pipes, core-layer foam pipes, double-wall corrugated pipes, Carat pipes, steel belt-reinforced pipes, PE water supply pipes, MPP power pipes, hollow wall winding pipes, and CPVC power pipes.
Principle
For batch or continuous extrusion production processes, the tester enables the determination of the product's True Impact Rate (TIR) by impacting the specified area of test specimens with a drop hammer of predefined mass and dimensions from a designated height.
This test method offers exceptional flexibility to meet the technical requirements of diverse products--achieved by adjusting the drop hammer mass, impact height, or both parameters.
Per standard testing protocols, the maximum allowable TIR value is specified as 10%.
Support and Services
To address your unique application requirements, we also offer customized technical solutions aligned with your specific testing scenarios, material types, and operational objectives. Whether you need parameter optimization, accessory upgrades, or process adaptation, our team leverages industry expertise to deliver targeted support.
We are dedicated to delivering industry-leading customer service and technical support. Our responsive support team is available 24/7 to promptly address any technical inquiries, operational concerns, or emergency service requirements--minimizing downtime and maximizing your equipment's productivity.
We invite you to reach out to our team at your earliest convenience for further details, personalized consultations, or to discuss your specific support needs.
FAQ
Q1: What is the Drop Hammer Test Equipment?
A1: The Drop Hammer Test Equipment is a precision impact testing instrument manufactured by JHH with its production base in Beijing, China. It is specifically engineered to evaluate the impact resistance of materials and products--an essential performance indicator for structural integrity assessment.
Q2: What is the core purpose of the Drop Hammer Test Equipment?
A2: The primary purpose of the Drop Hammer Test Equipment is to accurately measure the impact resistance of target objects, providing critical data to support product qualification verification, quality control, and reliability assurance in manufacturing and industrial applications.
Q3: Which products/materials are compatible with the Drop Hammer Test Equipment?
A3: The equipment is applicable for a wide range of pipes (including but not limited to PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes, and PE water supply pipes) and is also fully compatible with rigid plastic sheets.
Q4: What is the measurement accuracy of the Drop Hammer Test Equipment?
A4: The Drop Hammer Test Equipment features a high measurement accuracy of ±0.5%, ensuring reliable, repeatable test results that meet international testing standard requirements.
Q5: What is the maximum testing energy of the Drop Hammer Test Equipment?
A5: The equipment offers a maximum testing energy of 300 J, covering the impact testing requirements of most industrial pipes and rigid plastic products.
