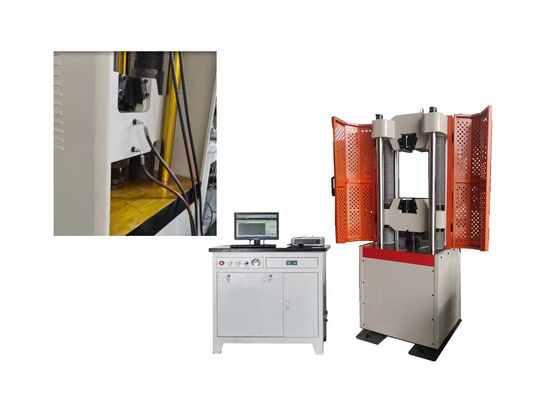

ISO Standard Servo Hydraulic Testing Machine
This universal testing machine is equipped with a computer-controlled hydraulic loading system and large-format LCD display, enabling user-friendly, intuitive operation with streamlined workflows.
Application
- Engineered for mechanical property testing of metal materials, supporting core test modes including tension, compression, bending, shear, and customized mechanical tests
- Flexibly adapted for testing non-metallic materials (wood, concrete, cement, rubber) with optional accessories
- Ideal for testing high-toughness and high-hardness materials under extreme high-load conditions
- Delivers stable performance and reliable test data for rigorous material evaluation
Price Advantage
Our vertical integration through in-house R&D and manufacturing enables superior cost-performance without compromising reliability. The machine's low failure rate minimizes maintenance costs while enhancing operational efficiency.
This exceptional cost-performance ratio delivers tangible benefits, balancing premium quality with competitive pricing to maximize your investment returns.
Standards Compliance
ISO 6934 BS4449, ASTM C39, ASTM A370, ASTM E4, ASTM E8, ASTME9, ASTMA615, ISO6892, ISO7438, ISO7500-1, ISO 15630 EN10002-4, GB/T228-2002, GB 16491-2008, HGT3844-2008 QBT 11130-1991, HGT 3849-2008, GB6349-1986, ASTM C165, EN826, EN1606, EN1607, EN12430, etc.
Host Features

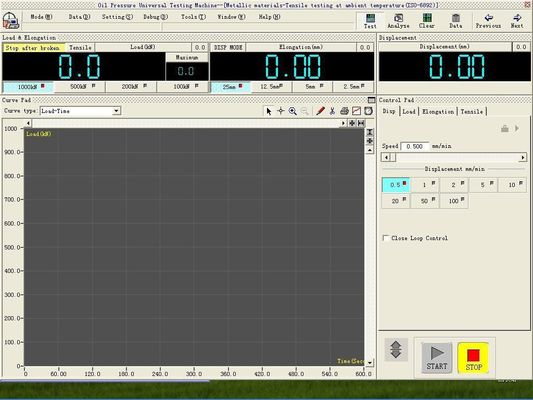

- Integrated system with automated control, measurement, data acquisition, display, and result processing
- Cylinder-under-main-engine configuration with high-precision oil pump and PC-based servo controller
- Multi-channel closed-loop control for full automation with exceptional stability
- Superior professionalism, high reliability, and easy upgradability
- Continuous enhancement capability to match evolving industry standards
Main Technical Parameters
| Model |
WAW-1000D |
| Max. test force (kN) |
1000KN |
| Structure |
Four columns two ball screws, oil cylinder down-setting type |
| Load range |
2%-100% |
| Middle Beam elevating speed (mm/min) |
200 mm/min |
| Max. Tensile space (mm) |
700mm |
| Max. Compression space (mm) |
600mm |
| Piston stroke (mm) |
200mm |
| Stranded wire clamping range |
Φ13-40mm |
| Flat sample clamping range |
0-30mm |
| Power total |
3.2KW |
| Compression plate size |
Φ160mm |
| Bending support roller distance |
300mm |
Frequently Asked Questions
Q1: Is your company a trading firm or a manufacturing factory?
A1: We are a factory-integrated trading entity with 18 years of specialization in test instruments and 14 years of export experience, enabling direct quality control with flexible trade services.
Q2: How can I select the most suitable product for my needs?
A2: Our technical team provides optimal recommendations based on your testing applications and required specifications (test type, material, load capacity, compliance standards).
Q3: What are your delivery terms?
A3: Standard models are typically in stock. Non-stock items have a 15-20 working day lead time after deposit. Urgent requirements can be accommodated with priority production.
Q4: Do you offer customization services?
A4: Yes, we provide tailored solutions beyond standard equipment. Share your specific needs and we'll strive to fulfill your customization requirements.
Q5: Can we visit your factory before placing an order?
A5: Absolutely. We welcome visits and will assist with hotel reservations and airport pickup for your convenience.
Q6: How is the machine packaged for transportation?
A6: All instruments are packaged in export-grade wooden crates compliant with international shipping standards, with a proven track record of zero transit damage incidents.
