Servo Hydraulic Testing Machine for Fracture Toughness Testing with High Precision Data Measurement and Control System
Main Machine Structure

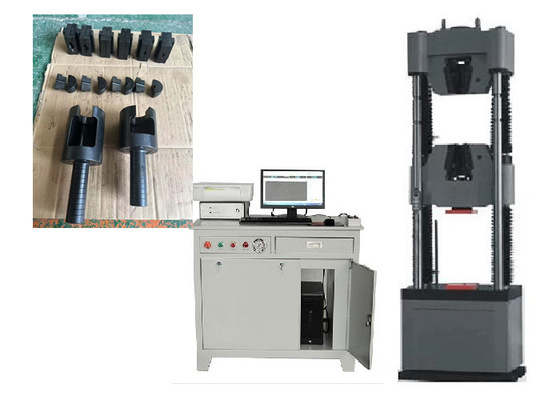

The load frame of the Fracture Toughness Tester (Hydraulic Universal Testing Machine, UTM) consists of two columns, two guide rails, and an integrated hydraulic cylinder. The tension testing space is located at the upper section of the main machine, while the compression and bending testing spaces are positioned between the lower crosshead and the worktable--ensuring rational space allocation for diverse test scenarios.
Data Measurement & Control System

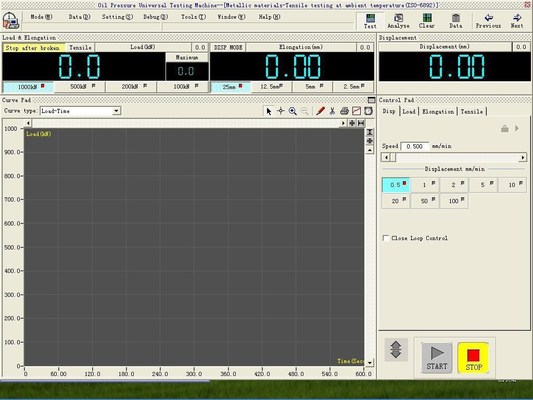

Equipped with a high-precision A/D converter module, the system performs real-time acquisition of force, displacement, and deformation data. It boasts exceptional measurement accuracy and reliable operational performance, fully complying with GB, ISO, ASTM, and other international/national standards for tensile, compression, bending, and shear tests of metal materials.
Transmission System
The lower crosshead is driven by a motor via a reducer, chain transmission mechanism, and lead screw assembly--enabling precise and smooth position adjustment of the testing space. This design ensures stable load transmission and accurate control of test processes, adapting to the size requirements of different test samples.
Standards
ISO 6934 BS4449, ASTM C39, ASTM A370, ASTM E4, ASTM E8, ASTME9, ASTMA615, ISO6892, ISO7438, ISO7500-1, ISO 15630 EN10002-4, GB/T228-2002, GB 16491-2008, HGT3844-2008 QBT 11130-1991, HGT 3849- 2008,GB6349-1986, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Principle
Hydraulic oil stored in the oil tank is delivered into the hydraulic circuit by a motor-driven high-pressure pump. It subsequently passes through the high-pressure filter, differential valve group, and servo valve before entering the hydraulic cylinder.
The computer transmits precise control signals to the servo valve, regulating its opening degree and flow direction. This controls the oil flow rate entering the hydraulic cylinder, thereby realizing accurate control of test modes such as constant test force rate and constant displacement rate.
Main Technical Parameters
| Model |
WAW-300D |
| Max. test force(kN) |
300KN |
| Structure |
Two columns two ball screws, oil cylinder down-setting type |
| Load range |
2%-100% |
| Middle Beam elevating speed (mm/min) |
170 mm/min |
| Max. Tensile space (mm) |
700mm |
| Max. Compression space (mm) |
600mm |
| Piston stroke(mm) |
250mm |
| Stranded wire clamping range |
Φ6-30mm |
| Flat sample clamping range |
0-15mm |
| Power total |
2.2KW |
| Compression plate size |
Φ120mm |
| Bending support roller distance |
300mm |
Packing and Shipping
Frequently Asked Questions
Q1: Is your company a trading firm or a manufacturing factory?
A1: We are a factory-integrated trading company--with 18 years of dedicated expertise in the testing instrument industry and 14 years of international export experience. We integrate in-house manufacturing capabilities with global trade services to deliver end-to-end product and service solutions.
Q2: How can I select the most suitable product?
A2: Our professional technical team will provide optimal tailored recommendations once you share your specific test requirements (e.g., test type, material to be tested) and technical specifications. We base suggestions on your actual application scenarios to ensure the product fully matches your needs.
Q3: What are your delivery terms?
A3: In most cases, we maintain inventory of standard models for immediate shipment. For non-stock items, the standard lead time is 15-20 working days upon receipt of the advance payment. If you have urgent demands, we can arrange priority production to shorten the delivery cycle as much as possible.
Q4: Do you offer customization services?
A4: Yes, we provide comprehensive customization services. In addition to standard testing machines, we can develop customized solutions tailored to your specific requirements--such as modified technical parameters, specialized fixtures, or custom software functions. Please feel free to share your detailed needs, and our R&D and engineering teams will strive to deliver solutions that align with your operational demands.
