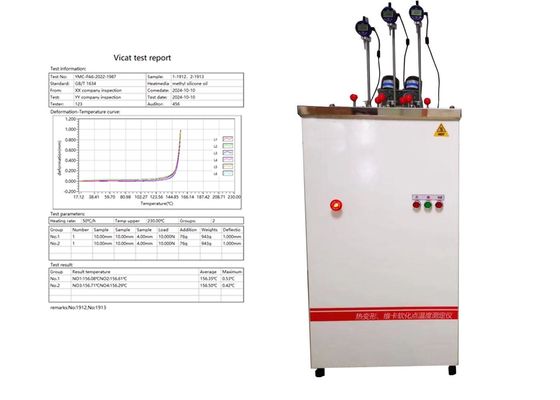

Innovative Computer Controlled Heat Deflection Temperature Plastic HDT and VST Test Machine for Advanced Material Research

Large Image : Innovative Computer Controlled Heat Deflection Temperature Plastic HDT and VST Test Machine for Advanced Material Research

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	XRW-300E

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~15 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	15 sets per month

Contact Now

Detailed Product Description

Product Name:	Innovative Computer Controlled Heat Deflection Temperature Plastic HDT And VST Test Machine For Advanced Material Research	Controll:	By Computer
Test Station Moving Method:	Automatic	Mainframe Type:	Floor Type
Vicat Load:	10N ± 0.2 N , 50N ± 1N	Max. Deformation Deviation:	0.001mm
Deformation Measuring Rage:	0 ~ 2.5mm	Sample Frame Number:	3-6 Stations Can Be Selected
Highlight:	computer controlled HDT test machine , plastic heat deflection temperature tester , HDT VICAT testing machine for materials

Innovative Computer Controlled Heat Deflection Temperature Plastic HDT and VST Test Machine for Advanced Material Research

Overview

The Computer Controlled Heat Deflection Temperature Plastic HDT and VST Test Machine is engineered to determine the heat deflection temperature (HDT) and Vicat softening temperature (VST) of materials such as plastics and rubber. These two parameters are critical for evaluating the thermal stability and high-temperature performance of polymeric materials.

This machine serves as an essential testing instrument for research and development (R&D) institutions, universities, and quality assurance (QA) departments of enterprises—supporting material formulation optimization, product performance validation, and quality control in the polymer industry.

Additionally, the machine's sample holders are equipped with an up-and-down adjustment function, enabling flexible and precise positioning of test samples to meet diverse testing requirements.

Product Introduction

The Computer Controlled Heat Deflection Temperature Plastic HDT and VST Test Machine is engineered to align with the rapid advancement of the plastic industry and elevate the standards of material research and testing.

These machines are designed in strict compliance with the latest international and national standards, including:

ISO 75-1:1993 (Plastics — Determination of temperature of deflection under load)
ISO 306:1994 (Plastics — Thermoplastic materials — Determination of Vicat softening temperature (VST))
GB/T 1633—2000 (Thermoplastic materials — Determination of Vicat softening temperature (VST))
GB/T 1634—2001 (Plastics — Determination of temperature of deflection under load)

Computer-controlled, these machines boast stable performance, user-friendly operation, and a high degree of automation. As such, they stand as the most advanced testing instruments for measuring the heat deflection temperature and Vicat softening temperature of non-metallic materials.

Test Standards

IS075(E), IS0306(E), GB/T8802, GB/T1633, GB/T1634

Model	XRW-300E
Technical data	Equipped with 6 stations (Ability to test 6 samples simultaneously) Automatic performance: A left for moving the samples Air above 150°C, 150°C the following water or natural cooling Deformation measurement: High precision digital display dial gauge Heating Rate: 50°C/h, 120°C/h Max. Temperature Deviation: ±0.5°C Deformation deviation: 0.01mm Vicat load: 10N ± 0.2 N, 50N ± 1N Fiber stress: 0.455 Mpa and 1.82 Mpa Temperature-control Range: room temperature ~ 300°C Deformation Measuring Range: 0 ~ 10mm Sample Frame Number: 3~6 Test Span: 60~120mm Heating Power: 6KW Power Supply: 220V 50Hz Display: Color touch screen
Type and display	Desk type Using PC control system
Standards	GB/T1633, GB/T1634, ISO75, ISO306, ASTM D648, ASTM D1525, ISO 2507
Usage	Used to measure heat deformation and Vicat softening temperature of thermoplastics material of plastic and rubber in the manufacturer, scientific research and colleges.
Configuration	Main frame 1 set Electric cabinet 1 set Specimen holder 3 sets (or 3 sets) Vicat indenter 3 sets Heat deflection indenter 3 sets Displacement sensor 3 sets Power line 2 sets Connecting line 2 sets Operation manual 1 set Certificate 1 set Packing list 1 set
