Series Electronic Universal Testing Machine Designed and Manufactured to International Standards UTM

Large Image : Series Electronic Universal Testing Machine Designed and Manufactured to International Standards UTM

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	XWW-

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~20 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Series Electronic Universal Testing Machine Designed And Manufactured To International Standards UTM	Range Of Speed:	0.05~500mm/min
Capacity:	5KN, 10KN, 20KN	Accuracy:	±0.5%
Screw:	High Precise Ball Screw	Sensor:	Celtron Load Cell
Resolution:	1/300,000	Standard:	ISO 7500-1 ISO 572 ISO 5893 ASTM D638/695/790, Etc
Highlight:	Electronic Universal Testing Machine with warranty , Series Universal Testing Machine international standards , UTM machine electronic testing

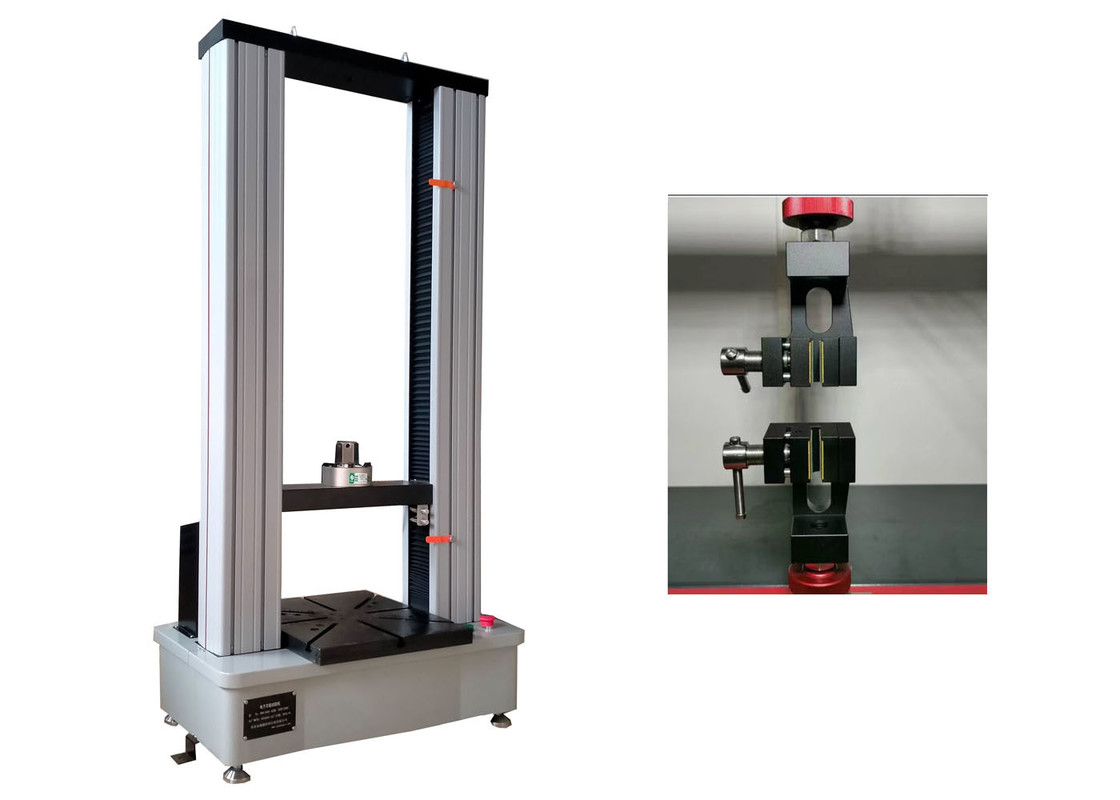

Series Electronic Universal Testing Machine Designed and Manufactured to International Standards UTM

The XWW Series Computerized Electronic Universal Testing Machines are designed and manufactured in strict compliance with international and national standards, including ASTM, ISO, DIN, and GB.

This series is applicable to a broad spectrum of materials, supporting key mechanical tests such as tensile testing, compression testing, bending testing, shear testing, and low-cycle fatigue testing. It is suitable for testing metals, rubber, plastics, springs, textiles, and various industrial components.

Widely utilized across its target industries, the XWW Series also serves as an essential testing tool in research and development (R&D) institutions, professional testing laboratories, and technical training centers.

Main Technical Parameters

Model	XWW-5, 10, 20KN
Type	Door model
Max. Load	5KN, 10KN, 20KN
Unit Switchover	Tone,Kg,g,Kn,Lb; mm,cm,inch
Accuracy Grade	0.5%
Force-measuring Range	0.4%~100%FS
Force-measuring Accuracy	≤0.5%
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	1%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0.01~500mm/min
Displacement Speed Accuracy	≤ 0.5%
Test Width	400mm (or according to order)
Tensile Space	600mm
Compression Space	900mm (or according to order)

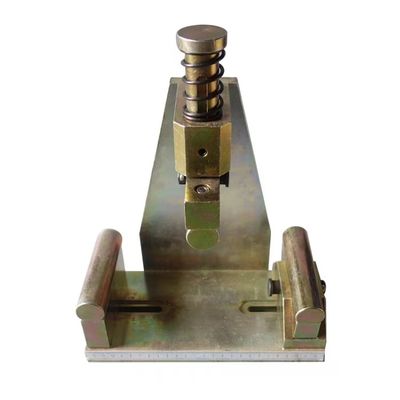

Clamps	Wedge Grip, Compressing Attachment, Bend accessorises
PC System	Equiped with brand computer
Flat-specimen thickness	0~7mm
Power Supply	AC220V
Standards	ISO 7500-1 ISO 572 ISO 5893 ASTMD638695790
Size of the host	8605602000mm
Weight	400Kg

Universal Testing Machine Software (Key Features)

This software boasts robust functionality, encompassing dedicated test programs for tensile testing, compression testing, bending testing, shear testing, and peel testing on metallic, non-metallic, and various other materials.

User-Friendly Platform: Windows-based, featuring intuitive operation and easy-to-learn functionality for streamlined user adoption.
Multilingual Support: Supports seamless language switching between Simplified Chinese, Traditional Chinese, and English.
User Management: Accommodates up to ten user accounts with password protection for secure access control.
Overload Protection: Integrates an overload protection function with user-configurable overload thresholds.
Unit Flexibility & Real-Time Monitoring: Enables effortless switching of force and displacement units, with real-time display of stress and strain variations.
Curve Versatility: Supports on-demand switching between multiple test curves, including load-displacement, load-time, displacement-time, stress-strain, and load-tensile length curves.
Force Calibration System: Equipped with a dual-channel force value calibration system, featuring automatic zero-setting and automatic identification/import of calibration data.
Standard Compliance: Compatible with numerous international and national testing standards, such as ISO, JIS, ASTM, DIN, and GB.
Curve Comparison: Facilitates comparative analysis of test curves within the same group via overlay display.
Automatic Calculation: Includes automatic zero-setting, with automatic computation of key parameters: maximum force, upper yield strength, lower yield strength, tensile strength, compressive strength, elastic modulus, and elongation percentage.
