Maximize Your Pressure Testing Efficiency with Our Top-Notch Hydrostatic Pressure Testing Machine
Product Description

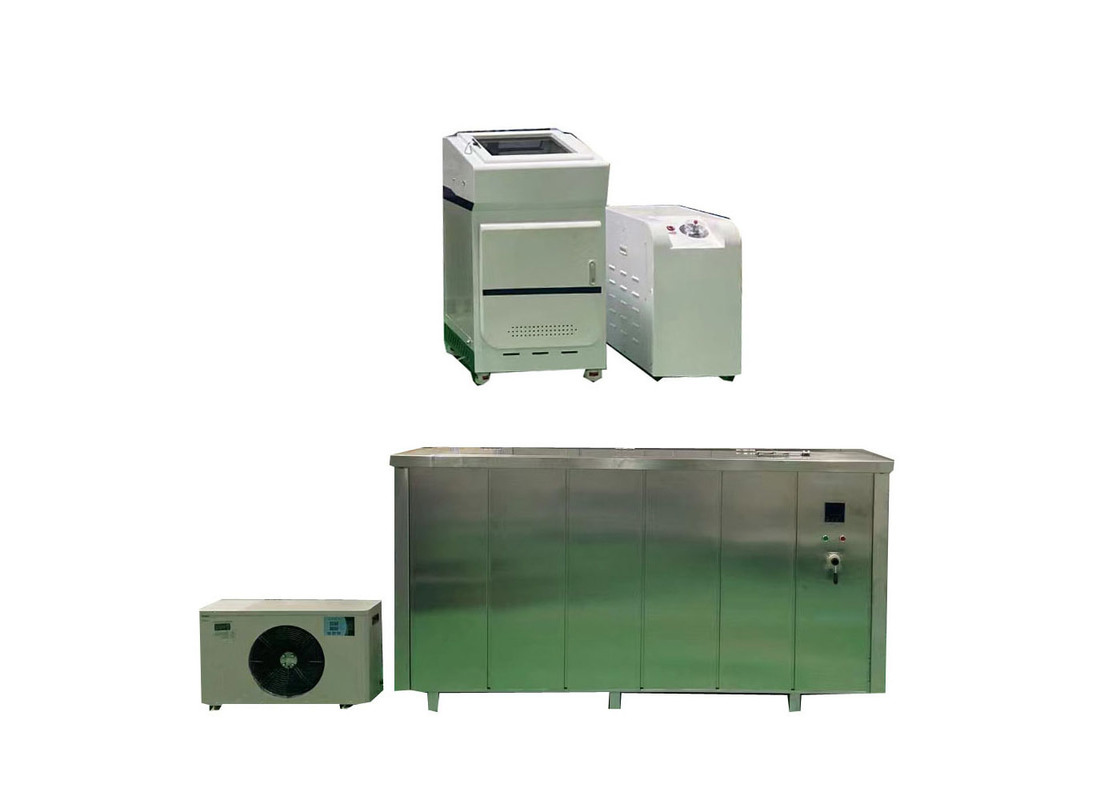

The Hydrostatic Pressure & Bursting Testing Machine is engineered to conduct instant burst testing and long-duration pressure testing on plastic pipes for fluid transport--specifically including measuring the failure time of thermoplastic pipes under constant pressure. This instrument comprises a pressure control main unit, a constant-temperature tank, and end caps. Featuring high precision, an elegant design, a streamlined structure, excellent stability, and user-friendly operation, it serves as an essential testing device for research institutions, quality inspection departments, and pipe manufacturers.
The Hydrostatic Pressure Testing Machine is configured with both micro-control and industrial PC control systems, providing users with the flexibility to select their preferred control mode. It offers a test pressure range of 0-200 Bar (0-20 MPa), delivering high versatility to accommodate a broad spectrum of testing scenarios across industries.
Safety is a top priority in the machine's design, and the Hydrostatic Pressure Testing Machine is engineered with integrated safety features. It is equipped with over-pressure and over-temperature safety protection mechanisms, ensuring testing operations are conducted in a safe and controlled environment.
With its advanced functionalities and state-of-the-art design, the Hydrostatic Pressure Testing Machine stands as the ideal solution for any industrial application requiring precise and reliable testing.
Features
- Product Name: Hydrostatic Pressure Testing Machine
- Temperature Range: 15-95℃
- Temperature Control Accuracy: ±1% of the set value
- Operating Principle: Users input pipe parameters (including ring stress, wall thickness, and average outer diameter) into the PC. The system automatically calculates the required test pressure, and the computed data is then transmitted to the lower computer (MCU embedded system) via the RS232 serial port.
- Certifications: CE, ISO
- Test Pressure Range: 0-160 Bar, 0-16 MPa
- Product Attributes: Fluid Pressure Endurance Equipment, Hydrostatic Pressure Tester
Meet Standards
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters
| Model | XGY-16C |
|---|
| Diameter range | Φ16-630mm |
|---|
| Stations | 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
|---|
| Control mode | Micro-control, industrial PC control |
|---|
| Display mode | Industrial PC LCD color display |
|---|
| Storage mode | PC strorage |
|---|
| Print mode | Color printer output |
|---|
| Test pressure | Pressure range | 0.1-16MPa
Control accuracy | ±1%
Display resolution | 0.001MPa
Working range | 5%~100%FS
Indication error | ±1% |
|---|
| Test Timer | Timer range | 0~10000h
Timer accuracy | ±0.1%
Timer resolution | 1s |
|---|
| Power | 380V 50Hz three-phase four-wire 1.5KW |
|---|

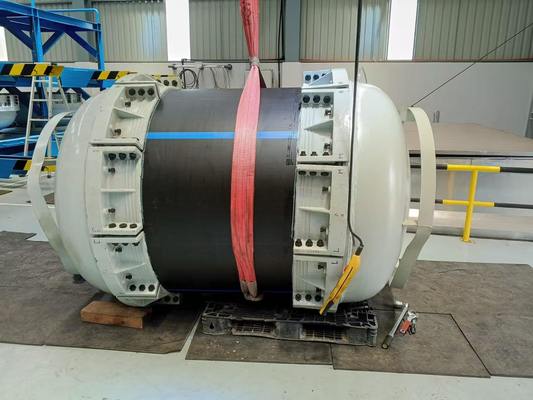

| end caps models | from Φ16 to 630mm |
|---|
| Water tank size | accoard to the pipe size |
|---|
| Temperature range | 15-95℃ |
|---|
| Dimensions (three stations) | 715×625×1700(mm)or others |
|---|
Support and Services
We offer comprehensive professional technical support for Hydrostatic Pressure Testing Machines. Our team of seasoned technical specialists--with in-depth industry experience in testing equipment operation and maintenance--provides the following dedicated services:
- On-site machine installation and commissioning: Professional on-site setup, precision calibration, and initial operational verification to ensure the machine meets standard testing requirements from the outset, avoiding issues caused by improper assembly.
- Professional troubleshooting and targeted technical consultation: Prompt diagnosis and solutions for equipment malfunctions (e.g., pressure control anomalies, temperature system errors) and customized guidance on operational optimization, standard compliance, and daily maintenance best practices.
- Timely repair services and proactive preventive maintenance: Rapid corrective repairs for faulty components (using compatible, high-quality parts) and tailored preventive maintenance plans (including routine sensor calibration, seal inspection, and pipeline cleaning) to extend equipment lifespan and maintain stable performance.
- Genuine spare parts and high-quality consumables supply: Provision of 100% original spare parts (to ensure compatibility and testing accuracy) and reliable consumables (e.g., pressure hoses, sealing gaskets), with efficient delivery to minimize equipment downtime.
- Regular software updates and functional upgrades: Periodic software updates to fix bugs and align with the latest industry standards (e.g., ISO 1167, ASTM D1598), plus functional upgrades (e.g., enhanced data analysis modules) to adapt to evolving testing needs.
We are fully dedicated to delivering premium customer service and ensuring customer satisfaction. Our team remains readily available to address any inquiries or concerns regarding your Hydrostatic Pressure Testing Machine.
FAQ
Q1: What is the brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A1: The official brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is JHH, with its manufacturing base located in Beijing, China.
Q2: What is the purpose of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A2: The Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is specifically designed to assess the hydrostatic strength and bursting strength of plastic pipes--critical performance indicators for validating the safety, pressure resistance, and durability of plastic pipes in fluid transport scenarios (e.g., plumbing, industrial fluid conveyance).
Q3: What types of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine is applicable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, and PE-X variants. This coverage meets the testing demands of diverse plastic pipe types used in residential, commercial, and industrial applications.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine boasts a measurement accuracy of within 0.1% of the full-scale reading. This high precision ensures test data is reliable, traceable, and compliant with international industry standards (e.g., ISO 1167, ASTM D1598) for plastic pipe testing.
Q5: What is the maximum pressure that the Hydrostatic Pressure Testing Machine can test?
A5: The Hydrostatic Pressure Testing Machine supports a maximum test pressure of up to 10 MPa (equivalent to 100 bar or 1,450 psi), which fully covers the pressure requirements of most standard hydrostatic and bursting tests for plastic pipes in industrial and civil applications.
