High-Performance Hydrostatic Pressure Testing Machine for Accurate and Consistent Results
Product Description

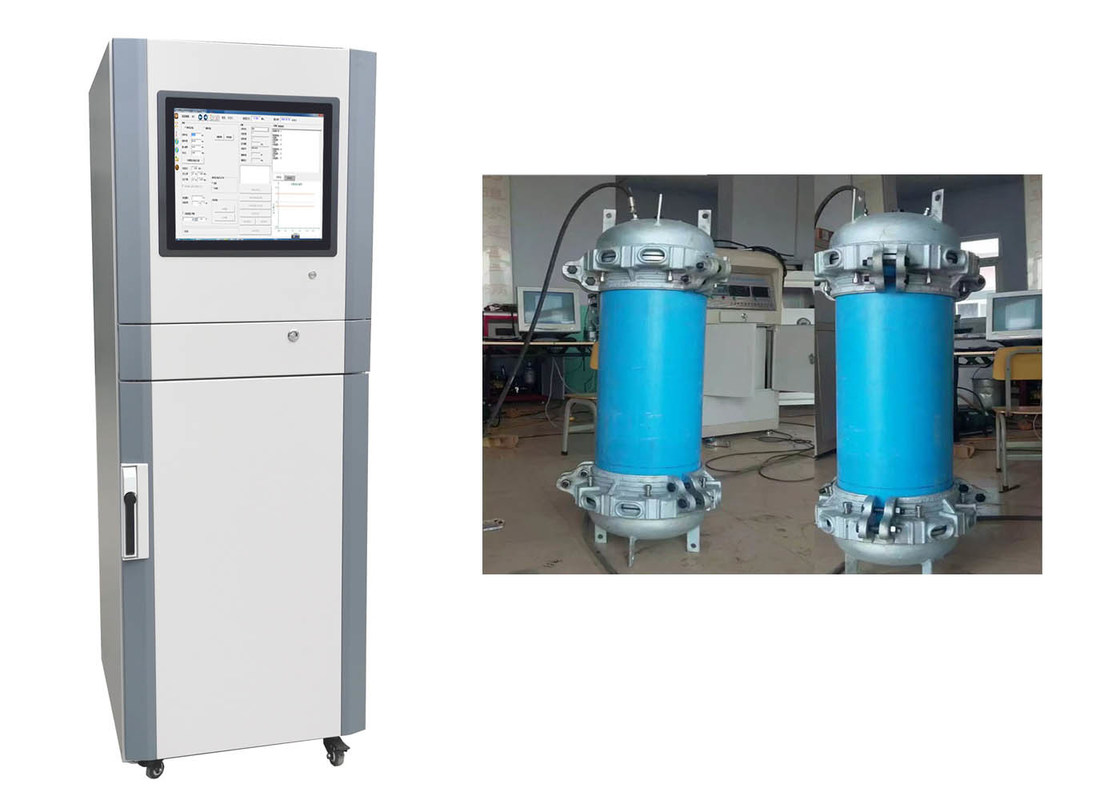

The Hydrostatic Pressure Testing Machine is equipped with end caps compatible with products featuring a diameter range of Φ8-1800 mm. It also provides dedicated customization support, making it highly suitable for OEM (Original Equipment Manufacturer) applications. With a pressure range of 0-100 Bar, this machine adapts to diverse testing scenarios across industries.
The High Pressure Hydrostatic Testing Machine is designed to generate two core types of test curves: pressure-time curves and pressure-temperature curves. Specifically, the pressure-time curve is used to assess the endurance performance of products under constant pressure, while the pressure-temperature curve is employed to evaluate the impact of temperature variations on product endurance. These curves facilitate the accurate evaluation of a product's strength and endurance under different environmental and load conditions, ensuring reliable test data for performance validation.
Features
- Product Name: Hydrostatic Pressure Testing Machine
- Test Curves: Pressure-Time and Pressure-Temperature
- Operating Principle: Users input pipe parameters (including ring stress, wall thickness, and average outer diameter) into the PC, which triggers the system to automatically calculate the required test pressure. The computed data is then transmitted to the lower computer (MCU embedded system) via the RS232 serial port.
- Temperature Range: 15-95℃
- Test Medium: Water
- Test Pressure Range: 0.01-100 Bar, 0.1-10 MPa
Meet Standards
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters
| Model |
XGY-10C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range | 0.1-10MPa |
| Control accuracy |
±1% |
| Display resolution |
0.001MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range | 0~10000h
Timer accuracy | ±0.1%
Timer resolution | 1s |
| Power |
380V 50Hz three-phase four-wire 1.2KW |

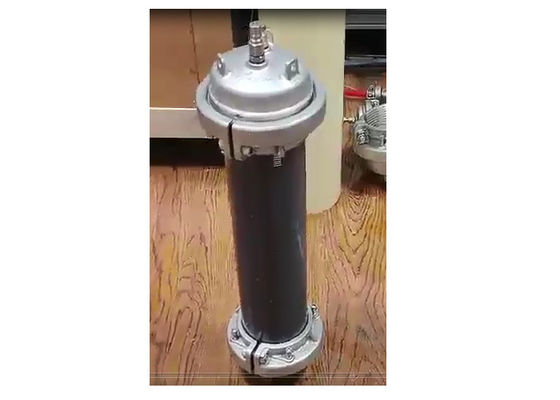

| end caps models |
from Φ16 to 1600mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
710×620×1710(mm)or others |
Support and Services
We offer comprehensive professional technical support for Hydrostatic Pressure Testing Machines. Our team of seasoned technical specialists, with extensive industry experience, is equipped to deliver the following services:
- On-site machine installation and commissioning: Professional on-site setup, precision calibration, and initial operational verification to ensure the machine meets standard testing requirements from the outset.
- Professional troubleshooting and targeted technical consultation: Expert diagnosis and solutions for equipment malfunctions, along with in-depth guidance on operational optimization, standard compliance, and technical queries.
- Timely repair services and proactive preventive maintenance: Prompt corrective repairs for faulty components and customized preventive maintenance plans (e.g., seal inspection, sensor calibration) to extend equipment lifespan and maintain stable performance.
- Supply of genuine spare parts and high-quality consumables: Provision of 100% original spare parts (ensuring compatibility and testing accuracy) and reliable consumables, with efficient delivery to minimize downtime.
- Regular software updates and functional upgrades: Periodic software updates to align with the latest industry standards and functional upgrades to enhance operational efficiency and adapt to evolving testing needs.
We are fully dedicated to delivering premium customer service and remain readily available to address any inquiries. Should you have any questions regarding the machine, please feel free to contact us at your convenience.
FAQ
Q1: What is the brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A1: The official brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is JHH, with its manufacturing base located in Beijing, China.
Q2: What is the purpose of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A2: The Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is specifically designed to assess the hydrostatic strength and bursting strength of plastic pipes--critical performance indicators for validating the safety, pressure resistance, and durability of plastic pipes in fluid transport scenarios.
Q3: What types of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine is applicable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, and PE-X variants. This covers the testing needs of different plastic pipe types used in plumbing, heating, and industrial fluid conveyance.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine boasts a measurement accuracy of within 0.1% of the full-scale reading. This high precision ensures test data is reliable, traceable, and compliant with international industry standards (e.g., ISO 1167, ASTM D1598).
Q5: What is the maximum pressure that the Hydrostatic Pressure Testing Machine can test?
A5: The Hydrostatic Pressure Testing Machine supports a maximum test pressure of up to 10 MPa (equivalent to 100 bar or 1,450 psi), which fully covers the pressure requirements of most standard hydrostatic and bursting tests for plastic pipes in industrial applications.
