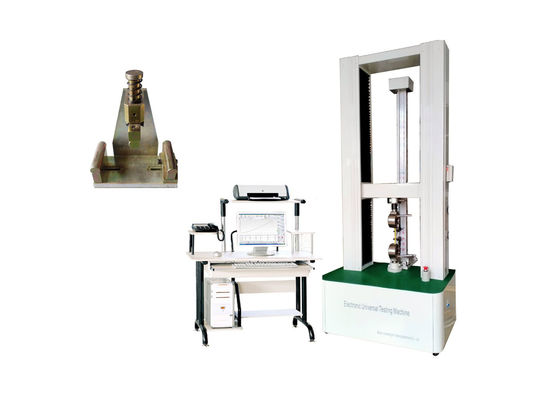

Professional and Accurate Electronic Universal Testing Machine for Metal Plastic Rubber Textile and More
Product Description
This machine, also known as a Materials Testing Machine, is applicable to evaluating the tensile stress, compressive stress, shear force, peel force, and elongation of materials, components, and finished products across diverse categories--including metals, plastics, rubber, textiles, synthetic chemicals, wires and cables, leather, and more.
Equipped with a computer, dedicated testing software, and a printer, the machine enables comprehensive test data management: it displays, records, processes, and prints test results, controls test procedures in accordance with preset programs, and automatically generates real-time test curves. In addition, the PC control system supports closed-loop control of key testing parameters, such as loading force, specimen deformation, and crosshead stroke. Furthermore, critical test parameters can be automatically calculated in strict compliance with international and national standards, including GB, JIS, ASTM, DIN, and ISO.
As a result, this machine serves as an essential testing instrument for quality inspection departments, universities and colleges, research institutions, and industrial and mining enterprises--catering to both routine quality control and advanced R&D testing needs.
Key Technical Specifications
| Parameter |
Value |
| Force capacity selection |
50kN |
| Force measurement accuracy |
0.5% |
| The displacement resolution |
0.005mm |
| Control mode |
Closed-loop |
| Force resolution |
1/300,000 |
| Test speed |
0.005~500mm / min can be formulated |
| Compression test trip |
900mm (can customized) |
| Deformation range |
0-800mm |
| Accuracy of deformation measure |
0.01mm |
| Test width |
520mm |
| External size |
760×500×2100mm |
| Instruments weight |
about 550kg |
Safety Features
| Feature |
Description |
| Stroke protection |
Machinery, computer double protection, prevent over preset |
| Force protection |
System setting |
| Emergency stop device |
Handling emergencies |
Frequently Asked Questions
Q: What is an Electronic Universal Testing Machine?
A: An Electronic Universal Testing Machine is a high-precision testing instrument specifically engineered to evaluate material mechanical properties and performance under varied loading conditions. It is primarily used to assess critical performance metrics such as tensile strength, compressive strength, modulus of elasticity, and ductility across a wide range of materials.
Q: What materials can be tested with the Electronic Universal Testing Machine?
A: The Electronic Universal Testing Machine supports testing of a broad and diverse range of materials, including metals, plastics, composites, and elastomers. This versatility makes it suitable for applications in multiple industries, catering to both industrial quality control and R&D testing scenarios.
Q: What are the features of the Electronic Universal Testing Machine?
A: The Electronic Universal Testing Machine integrates advanced features such as high measurement accuracy (typically within ±0.5% of full scale), precise real-time data processing and analysis, a wide adjustable testing speed range, and an intuitive, user-friendly interface for efficient operation. These attributes ensure reliable, repeatable test results and streamlined workflow.
Q: What types of tests can be performed with the Electronic Universal Testing Machine?
A: The Electronic Universal Testing Machine is capable of executing a comprehensive suite of test modalities, including tensile testing, compression testing, shear testing, flexure testing, and fatigue testing. This range of functions meets the mechanical property evaluation needs of various materials across industries.
