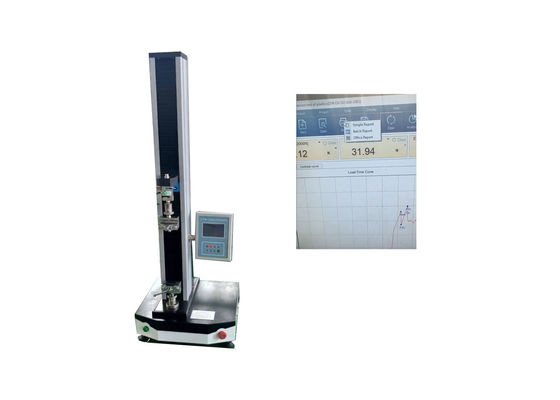

Computer Servo Control Universal Tensile Testing Machine for Metal and Non-Metal Materials Evaluation and Measurement
Synopsis:
The Computer Servo-Controlled Universal Tensile Testing Machine is primarily engineered for conducting mechanical property tests on metals, non-metals, and composite materials. It supports a comprehensive range of test types, including tensile, compression, bending, shear, tear, and peel tests—with the capability to evaluate key performance parameters such as tensile strength, yield strength, elongation, modulus of elasticity, as well as compression and bending properties.
Upon completion of each test, the software automatically analyzes and processes the test results in accordance with the initial test parameter conditions set prior to the test, and securely stores the data. Additionally, all test parameters and results can be retrieved for review and printed after the test is finished. The software is equipped with flexible control modes, and free upgrades for the test software are provided to ensure it remains aligned with evolving testing requirements and industry standards.
Parameter:
| Model |
XWW-1KN |
| Type |
single screw table modle |
| Max. Load |
1000N |
| Accuracy Grade |
0.5% |
| Force-measuring Range |
0.4%~100%FS |
| Force-measuring Accuracy |
≤±1% |
| Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.01-500mm/min |
| Displacement Speed Accuracy |
≤ 0.5% |
| Total Crossbeam Travel |
600mm |
| Clamps |

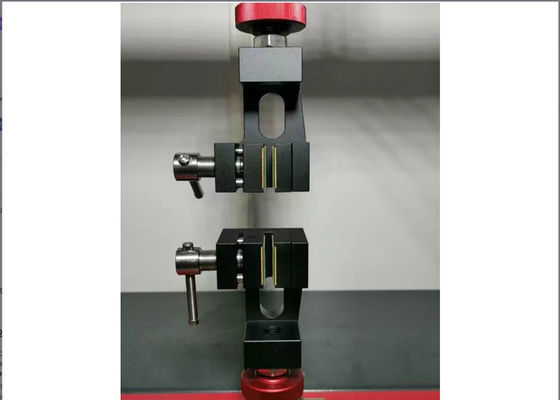

Tensile Jig |
| PC System |
Equipped with brand computer and color inkjet printer |
| Power Supply |
AC220V;400w |
| Standards |
ISO7500-1, ISO5893, ASTM D638695790, ASTM D 6614-2000, ASTM D3107-2007, ASTM D5344 |
| Weight |
100Kg |
| Packing size |
600mm*420mm*1700mm |
Introduction of the UTM software:
Universal Testing Machine Software (Key Features Include)
-
Boasts robust functionality, encompassing test programs for tensile, compression, bending, shear, and peel tests on metallic, non-metallic, and other materials.
-
Windows-based with an intuitive interface, ensuring simple operation and easy mastery.
-
Supports language switching between Simplified Chinese, Traditional Chinese, and English.
-
Allows creation of up to 10 user accounts with password protection.
-
Equipped with overload protection functionality, enabling users to preset overload thresholds.
-
Features seamless switching of force and displacement units, with real-time display of stress and strain variations.
-
Test curves (e.g., load-displacement, load-time, displacement-time, stress-strain, load-tensile length) can be switched instantaneously.
-
Incorporates a dual-channel force value calibration system, including automatic zero-setting and automatic identification/import of calibration data.
-
Compliant with multiple international and national testing standards, including ISO, JIS, ASTM, DIN, and GB.
-
Enables comparative analysis of test curves within the same group via overlay display.
-
Offers automatic zero-setting and automatic calculation of key parameters: maximum force, upper yield strength, lower yield strength, tensile strength, compressive strength, modulus of elasticity, elongation percentage, etc.
System configuration:
1 Machine main unit
1.1 AC servo motor, driver 1 set
1.2 Speed reduce system 1set
1.3 Load cell 1000N 1pc
1.4 Precision precision ball screw 1sets
1.5 Control board 1set
2 Servo control system 1set
3 Notebook Computer 1set
4 Inkjet color printer 1set
5 Tensile test accessories 1set
6 Software installation CD 1set
7Technical documents 1set
8 Tool kit 1 set
including : Instruction Manual
Manual of the Software
Certificate
FAQ:
Q1: What is an Electronic Universal Testing Machine?
A1: An Electronic Universal Testing Machine is a high-precision testing instrument specifically engineered to evaluate the core mechanical properties of materials, including tensile strength, compressive strength, modulus of elasticity, and elongation—critical metrics for material performance validation.
Q2: What materials can be tested with an Electronic Universal Testing Machine?
A2: An Electronic Universal Testing Machine supports the testing of a broad and diverse spectrum of materials, encompassing metals, plastics, elastomers, and composites, making it adaptable to multiple industrial material testing scenarios.
Q3: How accurate are Electronic Universal Testing Machines?
A3: Electronic Universal Testing Machines exhibit exceptional measurement precision, with their measurement error margin strictly controlled within ±0.5% relative to the actual value, ensuring reliable and traceable test data.
Q4: What types of tests can be performed with an Electronic Universal Testing Machine?
A4: An Electronic Universal Testing Machine is capable of executing a comprehensive array of test modalities, including tensile testing, compression testing, flexure testing, shear testing, and tear testing, meeting the diverse mechanical property testing needs of materials.
Q5: What are the benefits of using an Electronic Universal Testing Machine?
A5: The Electronic Universal Testing Machine delivers dual advantages of cost-effectiveness and high precision in evaluating material mechanical properties. Additionally, it features an intuitive operational interface and yields fast test results, significantly enhancing efficiency throughout material testing processes and supporting streamlined quality control workflows.
