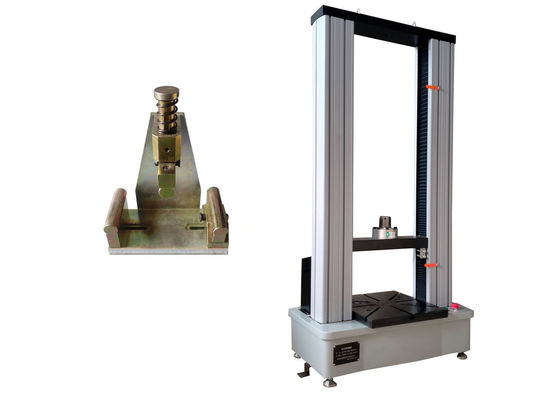

Versatile Computer Control Double-Armed Electronic Universal Testing Machine for Waterproof Materials and Film Industry
Description:
The XWW series Computer Control Double-Armed Electronic Universal Testing Machine is widely utilized across sectors including rubber, plastics, PVC pipes, boards, metal wires, cables, waterproof materials, and films. By integrating various accessories, it can perform a comprehensive range of mechanical tests such as tensile, compression, bending, shear, peel, and tear tests, among others.
This machine serves as a standard testing instrument for laboratories and quality control departments across industries, enabling precise material quality evaluation and mechanical property analysis.
Maintechnical parameter of Computer Control Double-Armed Electronic Universal Testing Machine:
| Model |
XWW |
| Maximum load |
50KN, 100 KN (optional) |
| Accurate |
1 grade /0.5 grade |
| Effective measuring range |
Force from 1% to 100% (1 grade) / from 0.4% to 100% (0.5 grade) |
| Measuring accuracy |
The value ±1% / the value±0.5% |
| Tester resolution |
Max load 1/200000, constant the resolution |
| Load sensor |
Basic configuration sensor max load: one |
| Effective testing width |
500mm (can be widened according to customers requirement ) |
| Effective tensile space |
700mm (can be increased the height according to customers requirement) |
| Testing speed |
From 0.001 to 500mm/min |
| Accruacy of displacement measurement |
Tolerance: ±0.5% / tolerance:±0.2% |
| Deformation of measured system according to the requirements |
Min span:10mm, Max range of deformation 800mm
Extended deformation span : 25mm, 50mm, 100mm, range of deformation 5mm, 10mm, 25mm
|
| Accuracy of measured deformation |
Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety |
Electronic-limit protection |
| Testing platform moving device |
Arbitrarily set |
| Return Back |
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection |
Overload 10%, automatic protection |
| Fixture |

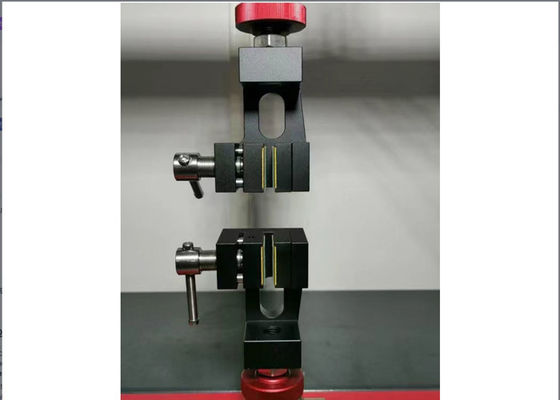

A set of tensile clamp |
| Machine size |
700*590*2000mm (L*W*H) |
| Motor |
Panasonic AC servo motor and drive |
| Power supply |
220V,50HZ or according to the requirement |
| Power |
1.5KW or 3KW (depending on different demand of force, using different motor) |
| Weight |
600 Kg |
|
Microcomputer Control Single-Armed Electronic Universal Testing Machine:
It automatically calculates stress, elongation rate (when equipped with an extensometer), tensile strength, and modulus of elasticity, while also compiling statistical results automatically. It can automatically record the maximum point, fracture point, values at designated points, and elongation rate.
Dynamic curves during the testing process are displayed in real time and data is processed via computer. Post-test, re-analysis and editing can be conducted by enlarging curves through the graphics processing module, with test reports available for printing. The product performance meets internationally advanced standards.
System configuration:
1 Machine main unit
1 1 AC servo motor, driver 1 set
1.2 Speed reduce system 1set
1. 3 Load cell 1pc
1. 4 Precision precision ball screw 2sets
1. 5 Control board 1set
2 Servo control system 1set
3 Gear system 1set
4 PC 1set
5 Inkjet color printer 1set
7 Tensile test accessories 1set
Compression accessorises 1 set
Bend accessorises 1 set
8 Extensometer 1 set
9 Software installation CD 1set
10 Technical documents 1set
including : Instruction Manual
Manual of the Software
Certificate
11 Tool kit 1 set
Support and Services:
Technical Support and Service for Electronic Universal Testing Machines
As the manufacturer of Electronic Universal Testing Machines, we are dedicated to providing professional technical support and services, with a commitment to delivering tailored, high-caliber solutions that align with our customers' operational needs.
Technical Assistance
Our technical team stands ready to address all technical inquiries and provide expert guidance on machine utilization. Leveraging their extensive experience, our specialists offer comprehensive support covering on-site installation, operational protocols, and fault diagnosis/resolution, ensuring seamless machine deployment and operation.
Repair Services
We provide specialized repair services for Electronic Universal Testing Machines. Our certified technicians are equipped to accurately diagnose and rectify equipment faults promptly. Additionally, we supply genuine replacement parts and components to ensure optimal performance post-repair, maintaining the machine’s original precision and reliability.
Preventative Maintenance
Our preventative maintenance services involve systematic inspections of the machine and its core components to verify operational integrity and overall condition. This proactive approach helps identify potential issues early, minimizing the risk of unexpected breakdowns and extending the equipment’s service life.
Training Programs
We offer customized training services tailored to the Electronic Universal Testing Machine. Our expert team delivers in-depth training on machine operation, maintenance protocols, and advanced 功能 utilization, empowering your staff to proficiently manage the equipment and maximize its performance.
Warranty Coverage
The Electronic Universal Testing Machine is backed by a comprehensive warranty. For any defects or malfunctions arising within the warranty period, we will provide repair or replacement services free of charge, ensuring customers receive reliable post-purchase support.
