Versatile and Accurate Hydrostatic Pressure Testing Machine for Various Applications
Product use:

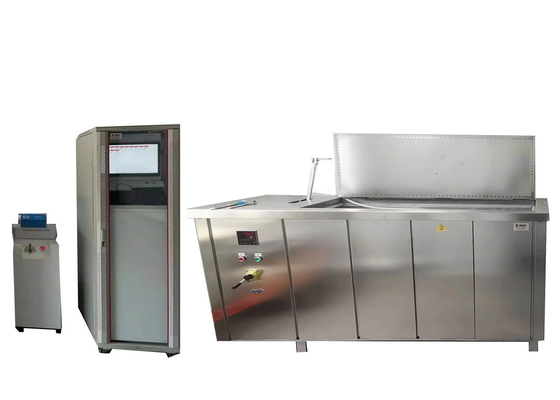

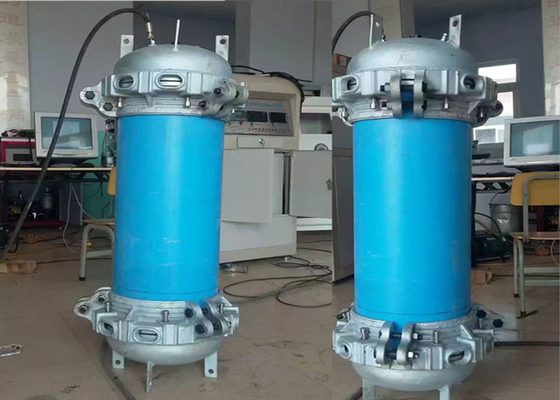

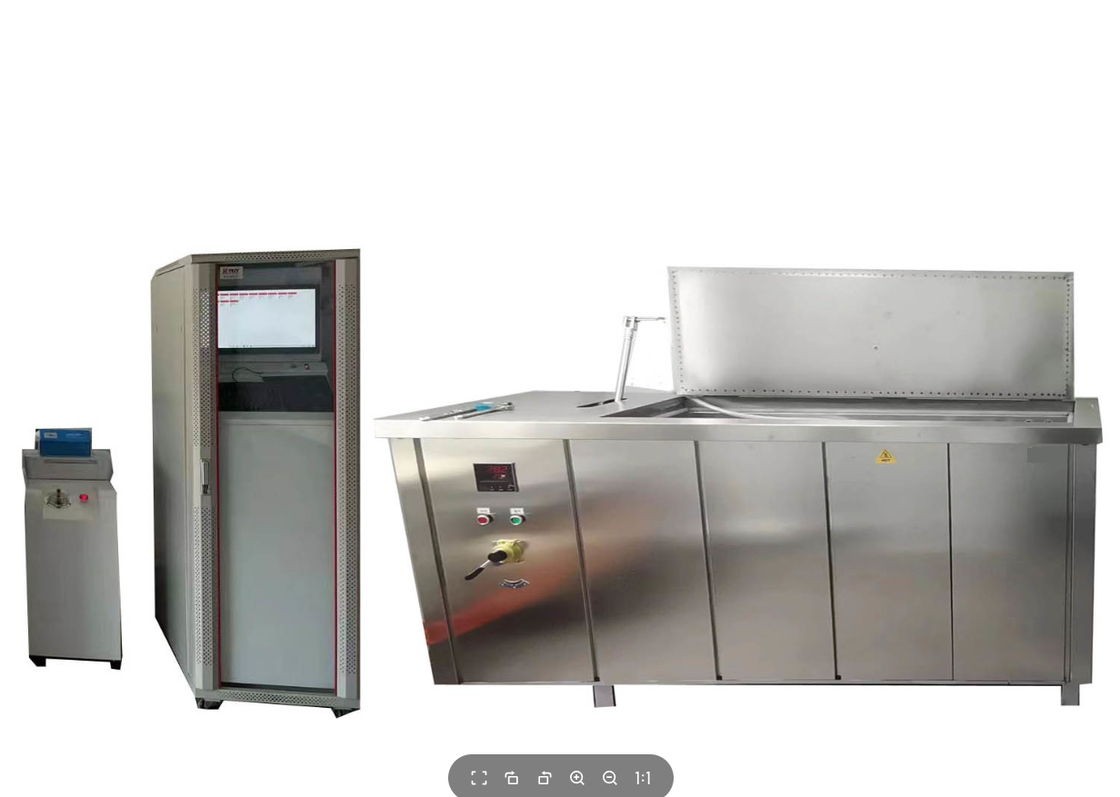

The Plastic Composite Pipe Hydrostatic & Pipe Bursting Tester is specifically designed for conducting hydrostatic tests and pipe bursting tests on a wide range of fluid-conveying plastic pipes, including PP-R, PP-B, PP-A, PPZ-X, PE, PVC, and plastic composite pipes.
Equipped with a PC-based control system, the tester supports unlimited long-duration testing and enables real-time storage of test process data. Its intuitive graphical interface is easy to learn and operate, while also accommodating extensive test-related information—facilitating seamless storage and output of test reports, as well as in-depth analysis of the test process.
Boasting a simplified structural design, high measurement precision, excellent operational stability, and user-friendly operation, this instrument serves as an ideal testing solution for advanced research institutes, universities, quality inspection authorities, and pipe manufacturers.
Features:
1.Each control parameter (including pressure, time, and accuracy) can be inputted or adjusted via either the upper computer (precision pressure micro-control unit) or the lower computer (PC).
2.The upper and lower computers can display the test time (maximum 9999 hours 59 minutes 59 seconds), pressure (with three decimal places), and eight test states (boost, pressure maintaining, pressure relief, operation, test end, leakage, burst, etc.) either simultaneously or independently. Meanwhile, audio-visual alarms are triggered in four specific states: overpressure, test end, leakage, and burst.
3.The system enables observation, analysis, query, storage, and printing of pressure-time test curves, as well as key test parameters including start time, set time, current time, effective time, invalid time, remaining time, overpressure time, and pressure maintaining time.
4.Each test channel is independently controlled with no mutual interference. Once one channel completes its test, the remaining channels continue their testing process. The machine will stop automatically only after all three groups of tests are fully completed.
Standards:
ISO 1167, ASTM D1598, ASTM D1599, ISO9080, CJ/T108 , ASTM F1335, etc.
Technical Parameters:
| Model |
XGY-10C, 16C, 20C |
| Diameter range |
Φ6-1200mm |
| Stations |
3, 4, 5, 6, 8, 10, 12, 15, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.2-10MPA, 0.32-16MPA, 0.4MPA-20MPA |
| Control accuracy |
±1% |
| Display resolution |
0.001MPa |
| Working range |
2%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.8KW |
| end caps models |
from Φ6 to 1200mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
10-95℃ |
| Dimensions (three stations) |
700×630×1730(mm)or others
|
Support and Services:
Technical Support and Service for Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)
We offer comprehensive technical support for Hydrostatic Pressure Testing Machines. Our team of seasoned technical support professionals is well-equipped to deliver the following services:
- On-site machine installation and commissioning: Ensures proper setup and calibration to achieve optimal operational readiness right from the start.
- Professional troubleshooting and targeted technical consultation: Provides efficient solutions for equipment malfunctions and in-depth guidance on operational best practices.
- Repair and preventive maintenance services: Covers both corrective repairs for faults and proactive maintenance to sustain long-term equipment stability, reduce downtime, and extend service life.
- Supply of genuine spare parts and consumables: Guarantees full compatibility with the machine, ensuring reliable performance post-replacement.
- Timely software updates and upgrades: Aligns the machine’s software with evolving industry testing standards and functional demands, enhancing its adaptability and test capability.
We are dedicated to delivering premium customer service and remain readily accessible to address any inquiries or concerns you may have regarding the equipment. Should you require assistance, please feel free to reach out to us at your convenience.
FAQ:
Q1: What is the brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A1: The official brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is JHH, and the product is produced in Beijing, China.
Q2: What is the primary purpose of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A2: The Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is primarily designed to evaluate the hydrostatic strength and bursting strength of plastic pipes, ensuring they meet predefined performance and safety criteria for practical application.
Q3: What types of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine is applicable for testing plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X, and other similar pipe types.
Q4: What is the measurement accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine features a measurement accuracy of within 0.1% of its full-scale reading, which guarantees the reliability and precision of test data.
Q5: What is the maximum pressure capacity of the Hydrostatic Pressure Testing Machine?
A5: The Hydrostatic Pressure Testing Machine boasts a maximum testable pressure of 10 MPa, which is equivalent to 100 bar (1450 psi).
