Electronic Universal Testing Machine for Tensile Peel Tear Heat Seal Adhesive Bend and Open Force Testing on Various Materials

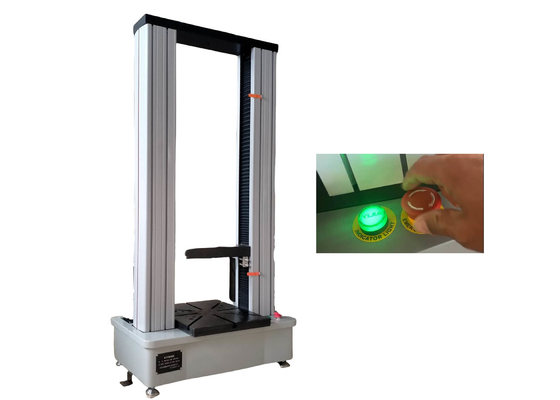

Large Image : Electronic Universal Testing Machine for Tensile Peel Tear Heat Seal Adhesive Bend and Open Force Testing on Various Materials

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	XWW-200KN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~20 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram,D/A,D/P
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Electronic Universal Testing Machine For Tensile Peel Tear Heat Seal Adhesive Bend And Open Force Testing On Various Materials	Place Of Origin:	Beijing, China
Capacity:	200KN	Precision Grade:	0.5 Or 1 Grade
Force-measuring Range:	0.4%~100%FS	Force-measuring Accuracy:	≤±0.5%
Text Space:	585mm	Compression Space:	695mm
Highlight:	electronic universal testing machine for tensile testing , universal testing machine for peel tear testing , electronic testing machine for heat seal adhesive

Electronic Universal Testing Machine for Tensile Peel Tear Heat Seal Adhesive Bend and Open Force Testing on Various Materials

Applications:

Testing Capabilities & Software Functionality

A. Tested Samples: Laminated materials, wood, leather, rubber & plastic, metal materials, etc.

B. Specialized Tests with Corresponding Grips: Supports tensile, peel, tear, heat seal, adhesive, bending, and opening force tests (each test is matched with dedicated grips for accuracy).

C. Deformation Under Defined Load: Conducts tests to measure the deformation of the tested sample when subjected to a preset defined load.

D. Load Under Defined Deformation: Performs tests to determine the load required to achieve a preset defined deformation of the tested sample.

The software is capable of generating Word/Excel format reports, which include key test results such as maximum force, elongation, tensile strength, peel strength, tear strength, compression strength, and more.

Meet Standards:

Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.

Technical parameter:

Model	XWW-200KN
Type	Door model with single test space
Max. Load	200KN
Accuracy Grade	0.5%
Force-measuring Range	0.4%~100%FS
Force-measuring Accuracy	≤±0.5%
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	1%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0..05~300mm/min
Displacement Speed Accuracy	≤ 0.5%
Test Width	520mm
Tensile Space	595mm
Compression Space	695mm
Electronic extensometer	50/10mm or 50/25
Clamps	Wedge Grip, wire rope winding clamp
PC System	Equiped with brand computer
Power Supply	AC220V
Size of the host	11008002700mm
Weight	1850kg

Introduction of the UTM software:

Supports tensile, compression, shear, bending, and other types of mechanical tests;
Enables open editing of tests, standards, and procedures, with support for importing and exporting testing data, standards, and procedural parameters;
Allows customization of test parameters to meet specific testing requirements;
Utilizes an open Excel-based format, supporting user-defined report templates for flexible result presentation;
Facilitates flexible querying and printing of test results, including batch printing of multiple samples and custom sorting of printed items;
Features hierarchical user management with role-based access control (administrator, tester) to regulate operational permissions for procedures;
The software offers robust functionality, encompassing test programs for tensile, compression, bending, shear, and peel tests on metallic, non-metallic, and various other materials;
Windows-based platform with an intuitive interface, ensuring simple operation and easy mastery;
Supports seamless language switching between Simplified Chinese, Traditional Chinese, and English.

Electronic Universal Testing Machine for Tensile Peel Tear Heat Seal Adhesive Bend and Open Force Testing on Various Materials 0

System configuration:

No.	Project Name		Manufacturers And Specifications	Qty
1	Main Engine		Beijing Jinshengxin	1 Set
2	Ball Screw Pair		Tianjin He Chun	2 Sets
3	Ac Servo System		Panasonic, Japan	1 Set
4	Load Sensor		American Celtron	1 Pcs
5	Software And The Closed-Loop Control System		Independent Research And Development	1 Set
6	Computer		Lenovo NoteBook	1 Set
7	Tools and Files		Operating Manual, Installation Manual	Each one

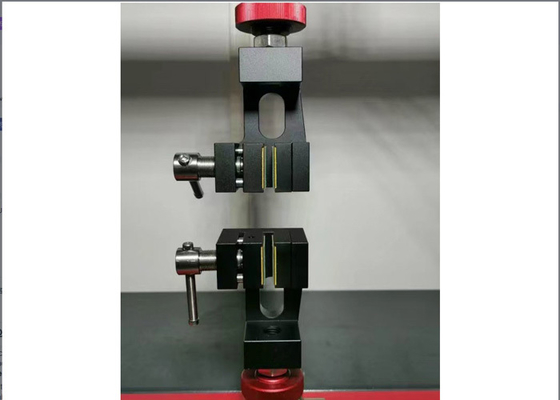

8	Attached	1.Wedge Stretch Fixtures	Flat Clamp Mouth: 0-9, 9-18(mm)	Each One Set
		1.Wedge Stretch Fixtures	Round Clamp Mouth:φ4-φ9, φ9-φ18(mm)	Each One Set
		2.Wire rope winding clamp	Disk Diameter: φ1-φ14mm	1set

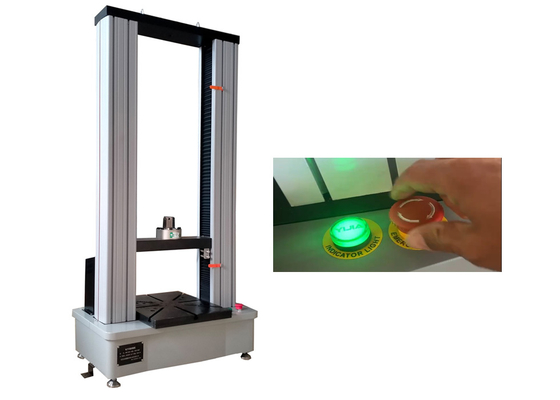

Electronic Universal Testing Machine for Tensile Peel Tear Heat Seal Adhesive Bend and Open Force Testing on Various Materials 1

Electronic Universal Testing Machine for Tensile Peel Tear Heat Seal Adhesive Bend and Open Force Testing on Various Materials 3

Electronic Universal Testing Machine for Tensile Peel Tear Heat Seal Adhesive Bend and Open Force Testing on Various Materials 6
