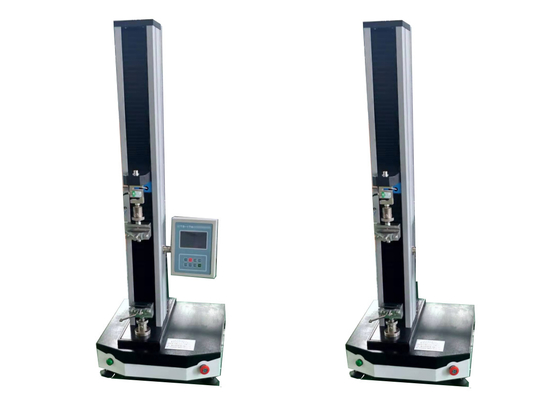

Microcomputer Control Single-Armed Electronic Universal Testing Machine with Tone Kg g Kn Lb mm cm inch Unit Switchover

Large Image : Microcomputer Control Single-Armed Electronic Universal Testing Machine with Tone Kg g Kn Lb mm cm inch Unit Switchover

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	XWW-

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard export wooden cases
Delivery Time:	10~20 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Product Name:	Microcomputer Control Single-Armed Electronic Universal Testing Machine With Tone Kg G Kn Lb Mm Cm Inch Unit Switchover	Capacity:	5,10,20,50,100,200KG
Alternative:	Tensile Testing Machine	Resolution:	1/300,000
Test Speed Range:	0.05~500 Mm/min	Motor:	Panasonic Servo Motor
Standard:	ISO 7500-1 ISO 572 ISO 5893 ASTM D638/695/790, Etc
Highlight:	electronic universal testing machine with microcomputer control , single-armed testing machine with unit switchover , electronic testing machine with tone kg g

Microcomputer Control Single-Armed Electronic Universal Testing Machine with Tone Kg g Kn Lb mm cm inch Unit Switchover

Product Specifications

Attribute	Value
Product Name	Microcomputer Control Single-Armed Electronic Universal Testing Machine with Tone Kg g Kn Lb mm cm inch Unit Switchover
Capacity	5,10,20,50,100,200KG
Alternative	Tensile testing machine
Resolution	1/300,000
Test speed range	0.05~500 mm/min
Motor	Panasonic Servo Motor
Standard	ISO 7500-1 ISO 572 ISO 5893 ASTM D638/695/790, etc

Product Description

Microcomputer Control Single-Armed Electronic Universal Testing Machine is primarily designed for testing metallic and non-metallic materials in terms of tension, compression, bending, shear, peel, tear, two-point extension, and other mechanical properties. It is applicable to materials such as rubber, plastic, wires and cables, optical fibers and cables, safety belts, leather belt composite materials, plastic profiles, waterproof membranes, steel, copper, profiles, spring steel, bearing steel, stainless steel (and other high-hardness steels), castings, plates, strips, and non-ferrous metal wires.

Technical Parameters

Model	XWW-100N/200N/500N/1000N/2000N
Type	Door model
Max. Load	100N/200N/500N/1000N/2000N
Unit Switchover	Tone,Kg,g,Kn,Lb; mm,cm,inch
Accuracy Grade	0.5%
Force-measuring Range	0.4%~100%FS
Force-measuring Accuracy	≤0.5%
Deformation-measuring Range	2%~100%FS
Deformation-measuring Accuracy	1%
Crossbeam Displacement Resolution	0.001mm
Crossbeam Speed Range	0.01~500mm/min
Displacement Speed Accuracy	≤ 0.5%
Tensile Space	700mm
Compression Space	900mm (or according to order)

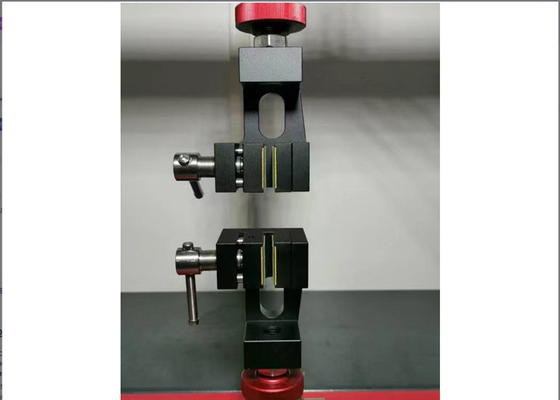

Clamps	Wedge Grip,Compressing Attachment,Bend accessorises
PC System	Equiped with brand computer
Power Supply	AC220V
Standards	ISO 7500-1 ISO 572 ISO 5893 ASTMD638695790
Weight	200KG

Software Features

Testing programs for tensile, compression, bending, shear, and peeling tests
Windows-based with user-friendly operation
Supports Simplified Chinese, Traditional Chinese, and English language switching
Allows creation of up to ten user accounts with password protection
Equipped with overload protection functionality
Enables seamless switching of force or displacement units
Displays multiple curve types including load-displacement, load-time, etc.
Force value dual-calibration system with automatic setting and zeroing
Compliant with multiple testing standards (ISO, JIS, ASTM, DIN, GB)
Facilitates comparison of test curves via overlay
Automatic calculation of parameters (maximum force, yield strength, etc.)

Frequently Asked Questions

Q1: What is an Electronic Universal Testing Machine?

A1: An Electronic Universal Testing Machine is a precision instrument designed to evaluate the mechanical properties of materials, including tensile strength, compression strength, modulus of elasticity, and elongation.

Q2: What materials can be tested with an Electronic Universal Testing Machine?

A2: An Electronic Universal Testing Machine is capable of testing a diverse range of materials, encompassing metals, plastics, elastomers, and composites.

Q3: How accurate are Electronic Universal Testing Machines?

A3: Electronic Universal Testing Machines boast high accuracy, with a measurement deviation of within ±0.5% relative to the actual value.

Q4: What types of tests can be performed with an Electronic Universal Testing Machine?

A4: An Electronic Universal Testing Machine supports a range of testing types, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.

Q5: What are the benefits of using an Electronic Universal Testing Machine?

A5: An Electronic Universal Testing Machine offers a cost-efficient and precise solution for evaluating the mechanical properties of materials. It also features user-friendliness and rapid result delivery.

Packaging and Shipping

For the Electronic Universal Testing Machine, packaging will be executed with utmost care and precision, utilizing bubble wrap, foam, and other specialized protective packaging materials to mitigate transit damage. Prior to loading onto a shipping truck, the machine will be securely fastened to a logistics skid to ensure stability during transportation.

The product will be shipped via a reliable, insured freight logistics carrier, safeguarding against potential risks throughout the delivery process.
