300KN Computer-Controlled Electronic Universal Testing Machine

Large Image : 300KN Computer-Controlled Electronic Universal Testing Machine

Product Details:

Place of Origin:	BEIJING, CHINA
Brand Name:	JINHAIHU
Certification:	ISO9001
Model Number:	XWW-

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Standard wooden box
Delivery Time:	7 -15 days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

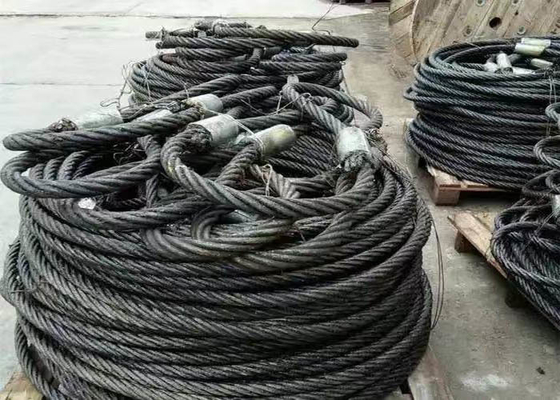

Product Name:	State-of-the-Art Electronic Universal Testing Machine For Comprehensive Material Analysis Applicable Steel Wire Rope	Max. Load:	300KN
Control System:	Computer Control	Accuracy:	±1%
Test Speed Range:	0.001-500mm/min	Tensile Space:	600mm
Test Width:	520mm	Data Output:	USB, RS232
Highlight:	300KN electronic testing machine , computer-controlled universal testing machine , high-capacity electronic testing equipment

300KN Electronic Universal Testing Machine with Computer Control

Product Specifications

Attribute	Value
Product name	State-of-the-Art Electronic Universal Testing Machine for Comprehensive Material Analysis Applicable Steel Wire Rope
Max. load	300KN
Control System	Computer Control
Accuracy	±1%
Test Speed Range	0.001-500mm/min
Tensile space	600mm
Test width	520mm
Data Output	USB, RS232

Product Overview

The Electronic Universal Testing Machine is engineered for conducting tensile and stretching tests with efficiency and precision. It features a test speed range of 0.001-500mm/min, a tensile space of 600mm, a stroke of 1000mm, and a power input of 220V/50Hz.

Key Features

Multiple test types: Tensile, Compression, Bending, Shear, Peel, Adhesion
High accuracy: ±0.5%
Data output interfaces: USB, RS232
Comprehensive safety protections: Overload, Over-travel, Over-voltage, Over-current
Computer-integrated data acquisition system

Technical Parameters

Parameter	Details
Power Supply	220V/50Hz
Test Width	520mm
Dimension	1000mm × 800mm × 2000mm
Test Force Range	3-300kN
Tensile Space	600mm
Test Types	Tensile, Compression, Bending, Shear, Peel, Adhesion
Stroke	1000mm
Test Software	Windows

Applications

This testing machine is ideal for laboratories, R&D departments, and quality assurance departments across industries. It can test various materials including metals, plastics, rubber, textiles, and more, measuring properties like tensile strength, compression capacity, ductility, and elasticity.

Support & Services

Initial product installation and commissioning
Operation guidance and training
Regular maintenance and calibration services
Troubleshooting and repair support
Software upgrades and updates

Packaging & Shipping

The machine is securely packed in cartons with protective foam cushioning. All components are thoroughly inspected before shipment, which is handled via reliable logistics carriers with tracking information provided.

Frequently Asked Questions

What is an Electronic Universal Testing Machine?

A laboratory-grade instrument designed to measure various mechanical properties of materials including tensile strength, compression strength, shear strength, and more.

What materials can be tested?

Plastics, rubber, metals, textiles, paper, and various other materials.

How does the machine work?

It uses a motor-driven system to secure and actuate test specimens, with mechanical responses measured and displayed in real time on a digital interface.

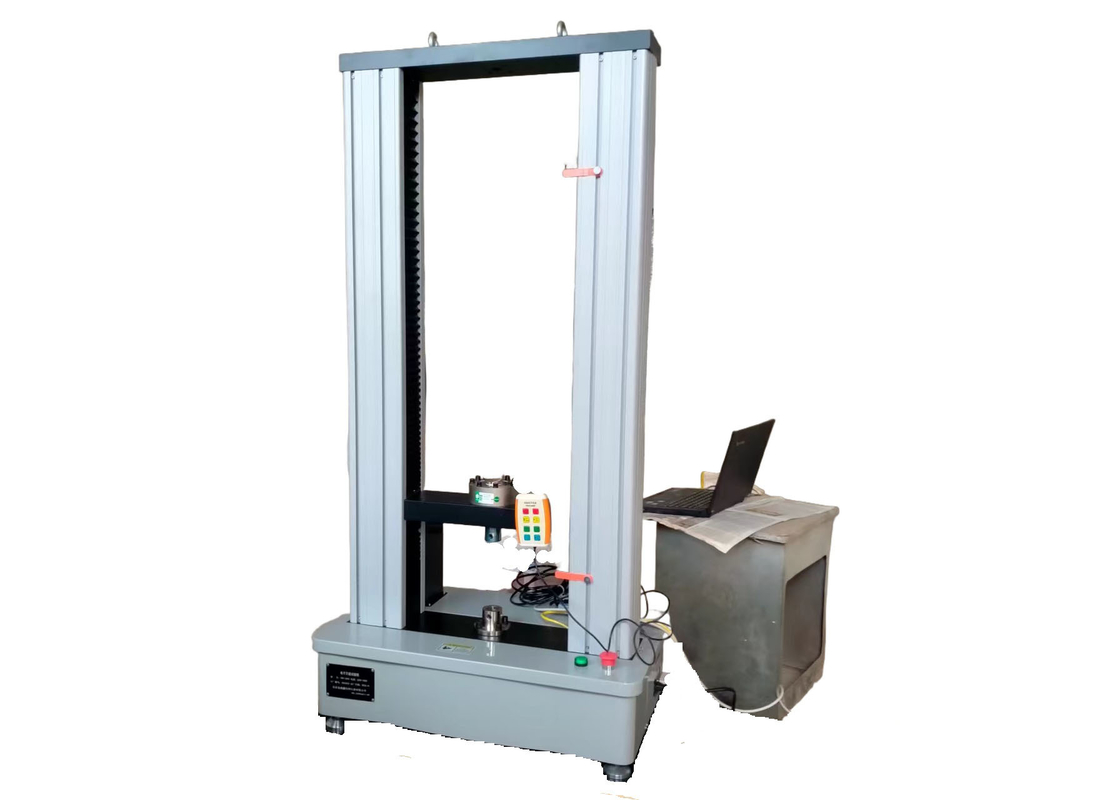

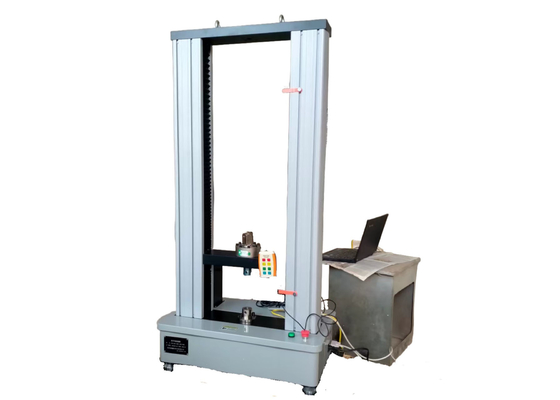

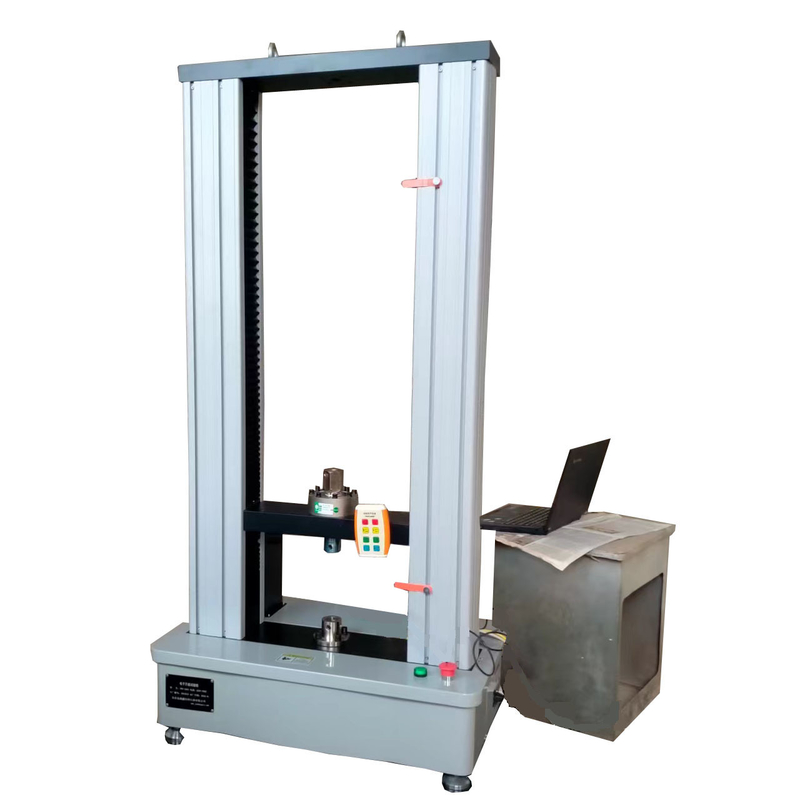

Product Images
