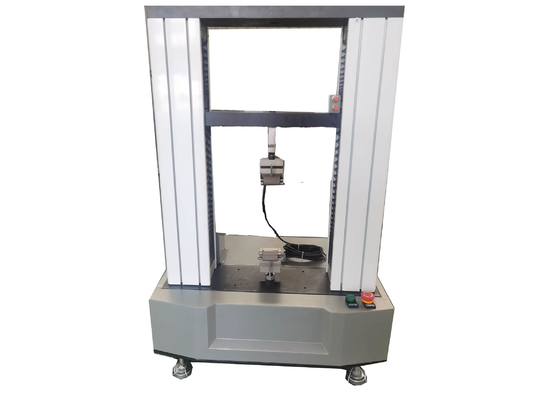

Electronic Universal Testing Machine with Video Extensometer for Material Testing and GB/T228.1-2021 Compliance
Product Description:
Computer controlled electronic high temperature tensile tester with video extensometer is primarily utilized for tensile, compressive, bending, and other tests on metal and non-metallic materials. It is applicable to fields such as iron and steel metallurgy, construction materials, aerospace, quality supervision, and teaching and research institutions.
Test data is processed in line with GB/T 228.1-2021. It supports testing the mechanical properties of materials in high-temperature environments as specified in GB/T228.2-2015 "High Temperature Tensile Test Method for Metal Materials", HB5195 "GB/T2039 Metal Tensile Creep and Persistent Test Method", and HB5150 "High Temperature Tensile Test Method for Metal High Temperature Tensile Test".
Performance parameters including RP, Rt, ReH, ReL, Rm, E, A, At, Agt, and Z can be measured.
Features:

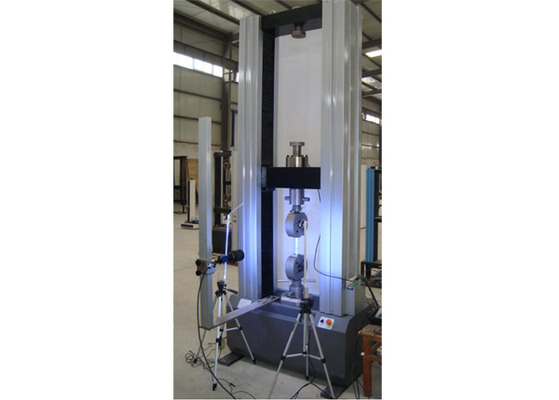

1.Video extensometers take the place of traditional contact extensometers.
The real-time strain sensor RTSS is a non-contact device, based on a single camera and real-time image processing system, ideal for measuring longitudinal and lateral strain between two labeled lines. Strain data is sent to the tensile tester via analog or digital signals for further processing or control.High temperature test electric furnace.
2.The high temperature furnace employs a three-stage temperature control structure and a 304 stainless steel cooling furnace shell, with an open structure. Its outer wall is made of high-quality stainless steel, and the inner part uses a high temperature resistant alumina material furnace pipe. The space between the furnace pipe and furnace wall is packed with insulation ceramic fiber cotton, offering excellent insulation. As a result, the furnace body has a low surface temperature.
3.The testing machine is equipped with digital zero adjustment and calibration functions for test force and deformation, which enhances the reliability of the machine.
Technical Parameters:
| Name |
Description |
| Max.force |
100KN |
| Power Supply |
220V/50Hz |
| Test Software |
Windows |
| Accuracy |
±0.5% |
| Temperature Range |
200-1100℃ |
| Tensile Strength |
600mm |
| Control System |
Computer Control |
| Data Acquisition |
Computer |
| Test Types |
Tensile, Compression, Bending, Shear, Peel, Adhesion, Etc. |
| Data Output |
USB, RS232 |
| Test Width |
600mm |
| Safety Protection |
Overload, Over-travel, Over-voltage, Over-current |
Customization:
Customized Electronic Universal Testing Machine Service
This customized service provides customers with the optimal Electronic Universal Testing Machine that meets their specific needs. The machine comes with a tensile space of 600mm, dimensions of 1000mm800mm2000mm, a stroke of 1000mm, and a test force range of 0.5-100kN. It also incorporates various safety protections such as overload, over-travel, over-voltage, and over-current protection.
The Electronic Universal Testing Machine is an excellent option for anyone seeking a reliable and efficient testing machine to measure tensile strength. With its enhanced safety protections and customizable features, customers can surely find the perfect machine for their needs.
Support and Services:
Technical Support and Service for Electronic Universal Testing Machine
We offer professional technical support and services for the Electronic Universal Testing Machine. As the product's manufacturer, we are dedicated to ensuring our customers receive top-notch service tailored to their needs.
Technical Assistance
We stand ready to address any technical questions and offer guidance on product usage. Our seasoned technical team can assist with installation, operation, and troubleshooting.
Repair Services
We provide repair services for the Electronic Universal Testing Machine. Our technicians are on hand to diagnose and fix any issues that may occur with the product. We can also supply parts and components to replace faulty parts.
Preventative Maintenance
We also provide preventative maintenance services. Our technicians can examine the machine and its components to ensure they operate properly and remain in good condition. This helps lower the chance of major issues arising later.
Training
We offer training services for the Electronic Universal Testing Machine. Our expert team can train your personnel on the product's operation and maintenance, enabling them to maximize its performance.
Warranty
We provide a warranty for the Electronic Universal Testing Machine. If any issues occur within the warranty period, we will repair or replace the product at no cost.
Packing and Shipping:
The Electronic Universal Testing Machine shall be packaged with meticulous attention to detail and precision, utilizing bubble wrap, foam, and other protective packaging materials. Prior to loading onto a transport vehicle for shipment, it will be securely affixed to a skid. The product will be transported via a reputable, insured freight carrier.
FAQ:
Q1: What is an Electronic Universal Testing Machine?
A1: An Electronic Universal Testing Machine is an instrument designed to measure the mechanical properties of materials, such as tensile strength, compression strength, modulus of elasticity, and elongation.
Q2: What materials can be tested with an Electronic Universal Testing Machine?
A2: An Electronic Universal Testing Machine is capable of testing a variety of materials, including metals, plastics, elastomers, and composites.
Q3: How accurate are Electronic Universal Testing Machines?
A3: Electronic Universal Testing Machines boast high accuracy, with measurements within ±0.5% of the actual value.
Q4: What types of tests can be performed with an Electronic Universal Testing Machine?
A4: An Electronic Universal Testing Machine is applicable for a variety of tests, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
