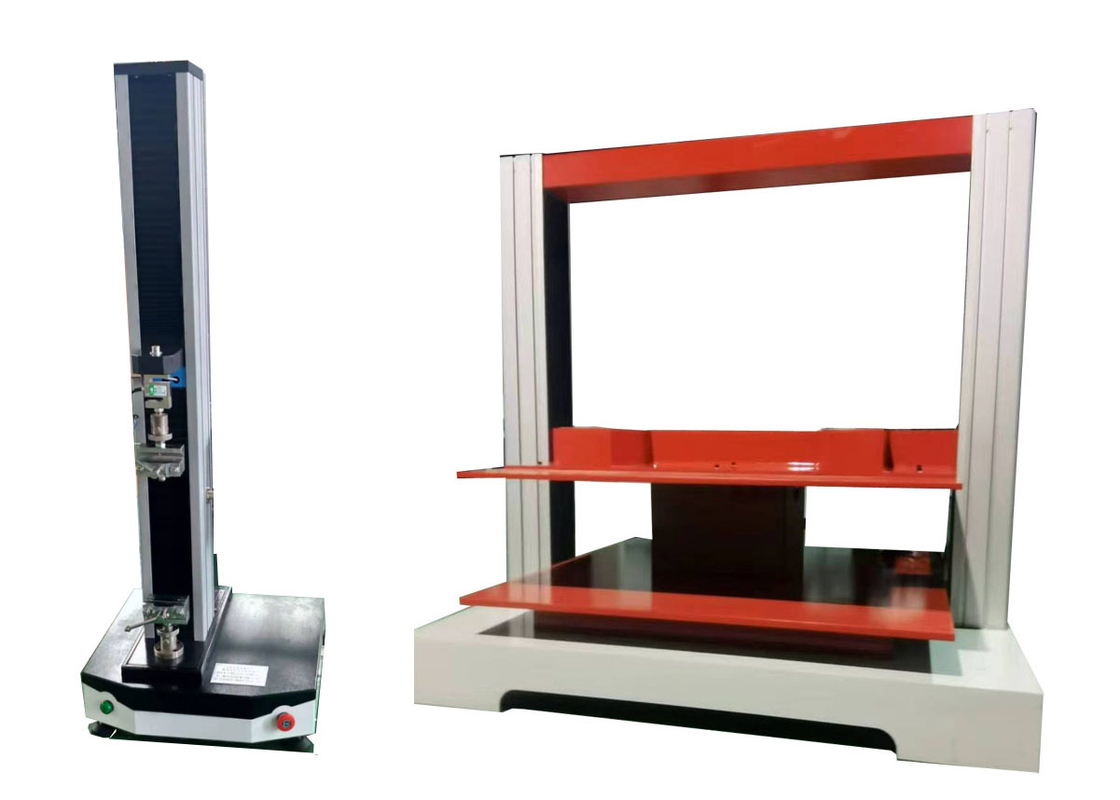

Versatile Electronic Universal Testing Machine for Tensile and Compression Testing
Applications:
Compressive test of empty carton:
Compressive test principle of empty carton:
Test samples are positioned between the two parallel plates of the testing machine, then pressure is applied uniformly. Load and plate displacement are recorded until the sample breaks, or the load or plate displacement reaches a preset value.
Empty carton compression test scope:
Cartons, cardboards, corrugated boxes, corrugated boards
Reference standards for empty carton compressive test:
GB/T 4857.4, GB/T 4857.16, ISO 2872, ASTM D642.
Product Description:
The Digital Universal Materials Testing Machine is also applicable to testing the mechanical properties of plastic film, composite film, flexible packaging material, adhesive tape, rubber, paper, and other products. It boasts a displacement resolution of 0.001mm and force-measuring accuracy of ≤±0.5%, ensuring highly accurate and reliable results.
Featuring advanced technology and a user-friendly interface, the Electronic Universal Testing Machine serves as an ideal option for quality control, research and development, and production testing. It is designed to cater to the needs of various industries including packaging, materials science, plastics, rubber, textiles, and paper.
The product incorporates advanced features such as a large LCD display facilitating easy viewing of test results, intuitive controls for simple operation, and a robust design for durability. It is easy to set up and demands minimal maintenance, thus serving as a cost-effective solution for testing and analyzing the mechanical properties of materials.
To sum up, the Electronic Universal Testing Machine stands as a highly advanced and precise product in the category of Electric Universal Strength Testing Apparatus. It is suitable for testing a wide range of materials and delivers high accuracy and reliability through its advanced technology and user-friendly interface. Perfect for quality control, research and development, and production testing across various industries, it proves to be an ideal investment for any business.
Technical Parameters:
| Model |
XWW-50KN |
| Type |
Double screw |
| Max. Load |
50KN |
| Resolution of Load |
1/300000 |
| Accuracy Grade |
0.5 grade |
| Force |
Force-measuring Range |
0.5%~100%FS |
| Force-measuring Accuracy |
≤±0.5% |
| Range of force control rate |
0.005--5%FS/S |
| Relative error of force control rate |
Within±1% of set value |
|
Metal extensometer
|
Measurement range |
0.2-100%FS |
| Range of deformation rate |
0.02~5%FS/S |
| Error of indication |
Within±0.5% |
| Resolution |
1/300000 |
| Large deformation |
. Measurement range
|
5mm-1000mm |
| Error of indication |
Within±0.5% |
| Resolution |
0.001mm |
| Crossbeam |
Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.001-500mm/min |
| Test width |
1200mm (or according needing) |
| Total Crossbeam Valid Travel |
1200mm |
| Clamps |
Compression plate |
| PC System |
Control force, displacement and deformation |
| Power Supply |
AC220V;400w |
| Standards |
GB/T1040/1041/9341/8804/9647/17200, GB/6491, GB/T4857.4, GB/T4857.16, ISO7500-1, ISO5893, ASTMD6386, ISO2872, ASTM D642, etc |
| Weight |
1190Kg |
Customization:
Customized Electronic Universal Testing Machine Service
This customized service provides customers with the optimal Electronic Universal Testing Machine tailored to their specific requirements. The machine comes with a tensile space of 600mm, dimensions of 1000mm800mm2000mm, a stroke of 1000mm, and a test force range of 3-300kN. It also incorporates various safety protections including overload, over-travel, over-voltage, and over-current protection.
The Electronic Universal Testing Machine is an excellent option for those seeking a reliable and efficient testing device to measure tensile strength. Boasting enhanced safety protections and customizable features, customers can surely find the ideal machine to suit their needs.
Support and Services:
Technical Support and Service for Electronic Universal Testing Machine
We offer professional technical support and services for the Electronic Universal Testing Machine. As the manufacturer, we are dedicated to ensuring our customers receive top-notch service tailored to their needs.
Technical Assistance
We are ready to address any technical inquiries and provide guidance on product usage. Our experienced technical team can assist with installation, operation, and troubleshooting.
Repair Services
We provide repair services for the Electronic Universal Testing Machine. Our technicians are available to identify and fix any problems that may occur with the product. We can also supply parts and components to replace faulty ones.
Preventative Maintenance
We also offer preventative maintenance services. Our technicians can examine the machine and its components to ensure proper functionality and good condition, helping reduce the chance of major issues in the future.
Training
We deliver training services for the Electronic Universal Testing Machine. Our expert team can train your personnel on operation and maintenance, enabling them to maximize the product’s performance.
Warranty
We provide a warranty for the Electronic Universal Testing Machine. If any issues arise within the warranty period, we will repair or replace the machine at no cost.
Performance feature:
This testing machine realizes closed-loop control of constant test force, stress rate, constant deformation, and strain rate. It is equipped with an intelligent setting system for the testing process control mode. Users can set the testing process and the control mode for each stage according to their own needs; the PC control system can automatically control the testing process in line with the mode set by the user.
This testing machine can perform all tests in accordance with the requirements of GB/T228—2021 "Metal Materials Tensile Test at Room Temperature" and GB/T7314-2005 "Metal Materials Compression Test at Room Temperature", and can also meet the requirements of GB, ISO, ASTM, DIN, etc. The processing results and test curves can be printed or handled in the form of ASCII files on disks and networks, facilitating the subsequent processing of test results.
FAQ:
Q1: What is an Electronic Universal Testing Machine?
A1: An Electronic Universal Testing Machine is an instrument used to measure the mechanical properties of materials, including tensile strength, compression strength, modulus of elasticity, and elongation.
Q2: What materials can be tested with an Electronic Universal Testing Machine?
A2: An Electronic Universal Testing Machine is capable of testing various materials, including metals, plastics, elastomers, and composites.
Q3: How accurate are Electronic Universal Testing Machines?
A3: Electronic Universal Testing Machines are highly precise, with measurements within ±0.5% of the actual value.
Q4: What types of tests can be performed with an Electronic Universal Testing Machine?
A4: An Electronic Universal Testing Machine can perform various tests, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
Q5: What are the benefits of using an Electronic Universal Testing Machine?
A5: An Electronic Universal Testing Machine offers a cost-effective and accurate method for measuring the mechanical properties of materials. It is also user-friendly and can deliver quick results.
