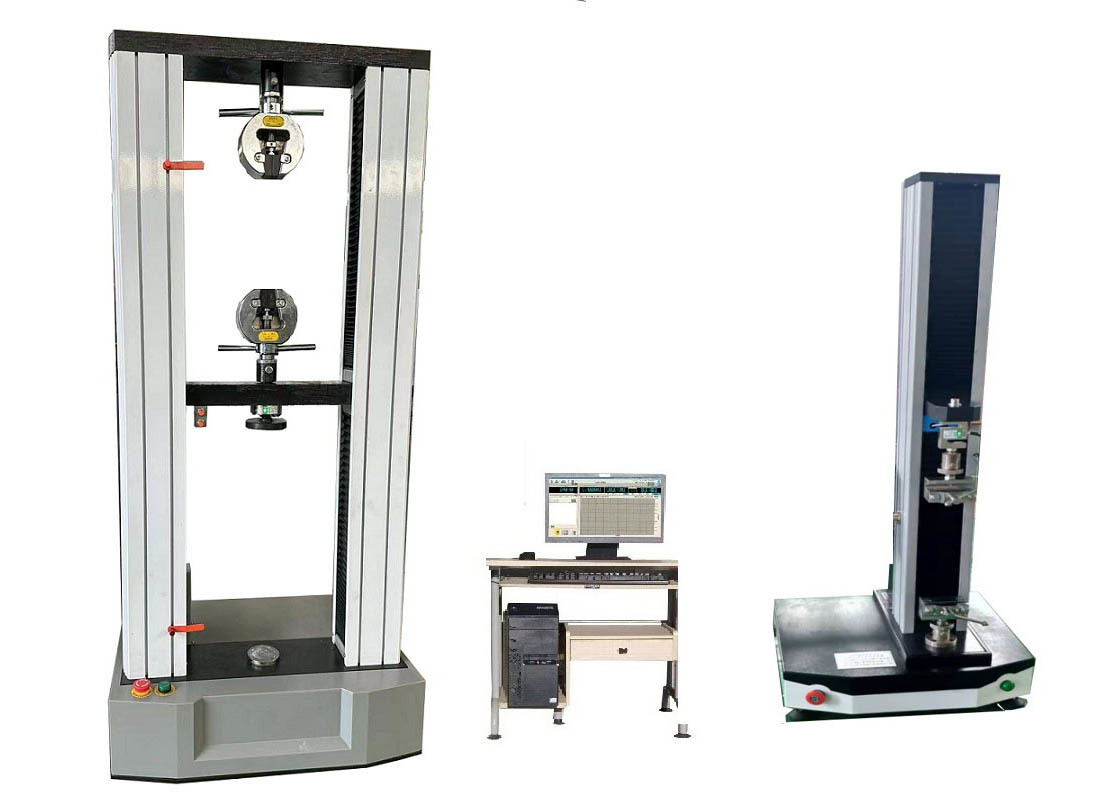

Accurate and Versatile Electronic Universal Testing Machine for Various Material Testing Needs
Product Description:
The Electronic Universal Testing Machine is a reliable, efficient laboratory testing device designed with a force measurement range of 0.4%~100%FS, delivering highly accurate measurements of the test specimen's stress state. The product complies with multiple standards including GB/T 9647, GB/T 18042, GB/T 5352, ISO 9969, and others, making it a reliable and efficient testing equipment.
The Electronic Universal Testing Machine is designed to measure force in multiple units such as kgf, gf, Lbf, mN, N, KN, and Ton. This feature makes it easier for laboratories to test various materials like metals, plastics, and composites.
The tensile testing machine is ideal for testing materials subjected to tension. It is designed to measure the stress and strain properties of materials under tensile loads. The Electronic Universal Testing Machine can also be used for compression testing, making it a versatile laboratory testing equipment. The compression testing function is used to measure the compressive properties of materials under a compressive force.
The Electronic Universal Testing Machine is an electrically powered universal stress testing system that is easy to operate. It comes with user-friendly software enabling operators to perform tests easily. The software is designed to provide accurate measurements and calculations of test results, making it easy for users to interpret the test data.
Applications:
The JINHAIHU XWW- Electronic Universal Testing Machine is a high-quality digital testing device that can measure the tensile and compression strength of various materials. It is widely applied in industries such as machinery, metallurgy, and construction for quality control and research. Certified by ISO9001 and manufactured in Beijing, China, this product serves as a reliable and accurate testing tool for any business.
The Electronic Universal Tension and Compression Machine is suitable for a broad range of applications and scenarios. It can test the mechanical properties of materials like metals, plastics, rubber, and textiles. This machine is particularly valuable for quality control during production and research and development. With a force-measuring accuracy of ≤±0.5% and a displacement resolution of 0.001mm, it ensures accurate and reliable results every time.
The Digital Universal Materials Testing Machine can test and analyze the compression, bending, and other mechanical properties of containers including corrugated cardboard boxes, honeycomb panels, flexible packaging bags, plastic barrels (for edible oil, mineral water), paper barrels, paper cans, IBC barrels, and hollow containers. This makes it a perfect option for businesses in packaging and shipping.
Performance feature:
The testing machine has the function of reproducing the data curves throughout the entire testing process. The reproduction of the curves enables users to handle the test data independently in a fully human-machine dialogue manner. For example, any one of the values of test force, deformation, stress, or strain can be input at any point, and the results of the other items can be obtained.
The testing machine also has the functions of digital zero adjustment and calibration for test force and deformation, which improves the reliability of the machine.
Technical Parameters:
| Model |
XWW-10KN |
| Type |
Double screw |
| Max. Load |
10KN |
| Resolution of Load |
1/300000 |
| Accuracy Grade |
0.5 grade |
| Force |
Force-measuring Range |
0.5%~100%FS |
| Force-measuring Accuracy |
≤±0.5% |
| Range of force control rate |
0.005--5%FS/S |
| Relative error of force control rate |
Within±1% of set value |
|
Metal extensometer
|
Measurement range |
0.2-100%FS |
| Range of deformation rate |
0.02~5%FS/S |
| Error of indication |
Within±0.5% |
| Resolution |
1/300000 |
| Large deformation |
. Measurement range
|
5mm-1000mm |
| Error of indication |
Within±0.5% |
| Resolution |
0.001mm |
| Crossbeam |
Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.001-500mm/min |
| Test width |
380mm (or according needing) |
| Total Crossbeam Valid Travel |
800mm |
| Clamps |
Wedge Grip(or according to your needs) |
| PC System |
Control force, displacement and deformation |
| Power Supply |
AC220V;400w |
| Standards |
GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790 |
| Weight |
290Kg |
| Packing size |
700mm*420mm*2000mm |
Customization:
Customized Electronic Universal Testing Machine Service
This customized service provides customers with the optimal Electronic Universal Testing Machine tailored to their specific needs. The machine comes with a tensile space of 600mm, dimensions of 1000mm800mm2000mm, a stroke of 1000mm, and a test force range of 3-300kN. It is also equipped with various safety protection functions, including overload, over-travel, over-voltage, and over-current protection.
The Electronic Universal Testing Machine is an excellent choice for those seeking a reliable and efficient testing device to measure tensile strength. With its enhanced safety protections and customizable features, customers can surely find the ideal machine to meet their needs.
Support and Services:
Technical Support and Service for Electronic Universal Testing Machine
We offer professional technical support and service for the Electronic Universal Testing Machine. As the manufacturer, we are dedicated to ensuring our customers receive the best service tailored to their needs.
Technical Assistance
We are ready to address any technical questions and offer guidance on product usage. Our experienced technical team can assist with installation, operation, and troubleshooting.
Repair Services
We provide repair services for the Electronic Universal Testing Machine. Our technicians are available to identify and fix any issues that may occur with the product. We can also supply parts and components to replace defective ones.
Preventative Maintenance
We also offer preventative maintenance services. Our technicians can examine the machine and its components to ensure proper functionality and good condition, helping reduce the chance of major issues in the future.
Training
We deliver training services for the Electronic Universal Testing Machine. Our expert team can train your personnel on operation and maintenance, enabling them to maximize the product’s potential.
Warranty
We provide a warranty for the Electronic Universal Testing Machine. If any issues arise within the warranty period, we will repair or replace the machine at no cost.
Packing and Shipping:
The Electronic Universal Testing Machine will be packed with great care and precision using bubble wrap, foam, and other protective packaging materials. It will be firmly secured to a skid before being loaded onto a truck for shipping. The product will be shipped through a reliable, insured freight carrier.
FAQ:
Q1: What is an Electronic Universal Testing Machine?
A1: An Electronic Universal Testing Machine is an instrument designed to measure the mechanical properties of materials, such as tensile strength, compression strength, modulus of elasticity, and elongation.
Q2: What materials can be tested with an Electronic Universal Testing Machine?
A2: An Electronic Universal Testing Machine is capable of testing a range of materials, including metals, plastics, elastomers, and composites.
Q3: How accurate are Electronic Universal Testing Machines?
A3: Electronic Universal Testing Machines boast high accuracy, with measurements within ±0.5% of the actual value.
Q4: What types of tests can be performed with an Electronic Universal Testing Machine?
A4: An Electronic Universal Testing Machine supports various tests, such as tensile testing, compression testing, flexure testing, shear testing, and tear testing.
Q5: What are the benefits of using an Electronic Universal Testing Machine?
A5: An Electronic Universal Testing Machine offers a cost-effective and accurate method for measuring the mechanical properties of materials. It is also user-friendly and can deliver rapid results.
