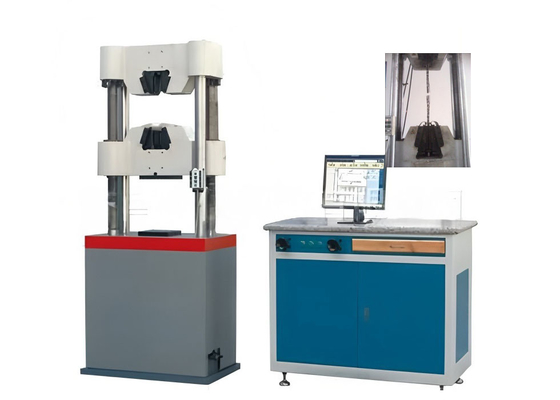

Computerized electrohydraulic servo hydraulic testing machine for steel and concrete with high precision
Product introduction:
This machine is primarily used for testing the mechanical properties of prestressed steel strands and can also be applied to testing the mechanical properties of steel bars. Special jaws for steel strands can guarantee the fracture position of the specimen, thus measuring the true effective value of the steel strand. For rebar and other materials, the test operation and data processing comply with the requirements of GB/T 5224-2014 Steel Strand for Prestressed Concrete and ISO 6934-4. Testing can also be conducted in accordance with standards such as GB, ASTM, DIN, ISO, JIS, and BS.
Price advantage:
We strengthen our independent R&D efforts, establish a processing center, and independently manufacture core components. This allows us to cut down on link costs while maintaining consistent quality. Our high-quality products can save you far more than those low-priced but poor-quality alternatives. Lowering the machine's failure rate reduces customers' maintenance costs and also enhances machine efficiency. Such a combination of competitive pricing and high quality delivers real benefits to customers.
Frequently Asked Questions:
Q1. Are your company a trading one or a factory?
A: Factory-trade integration. We have 18 years of focus on the test instruments field and 14 years of export experience.
Q2. How to choose the most suitable products?
A: Our professional team will offer the best suggestions as long as you inform us of the type of test you need to conduct and the required specifications.
Q3. What's the delivery term?
A: Most of the time, we have stock in the factory. If there is no stock, the delivery time is normally 15-20 working days after receiving the deposit.
If you are in urgent need, we can consider making special arrangements for you.
Q4. Do you accept customization service?
A: Yes, of course. We can not only provide standard machines but also customized ones according to your requests.
Feel free to tell us your requirements, and we will try our best to meet them.
Q5. Can we visit your factory before ordering?
A: Yes, we warmly welcome and sincerely invite you or your team to visit our factory. We will help arrange hotels and pick you up from the airport.
Q6. How about your warranty?
A: Generally, our warranty period is one year. Within the warranty period, we can provide technical support and replace spare parts. If necessary, our engineers may visit your location for better service.
Q7. How about the packaging for the machine? Is it safely protected during transportation?
A: Our machines are packed in standard export wooden boxes, so they won't be damaged. We have delivered many testing machines abroad by sea or air without any damage.
Equipment expansion:
The design of the testing machine also takes into account the expansion of other fixtures to enable more possible tests. For instance: with bolt fixtures, it can be used for bolt stretching and load holding; with bending fixtures, it can perform bending tests on round rods or plates; equipped with shear clamps, it can conduct shear strength tests on round rods; in the compression space, flexure, shear, and splitting tests can be carried out, and an elastic modulus meter can be added for testing concrete and cement samples. Additionally, with fixtures for steel balls, anchor chains, fasteners, etc., it can complete tests on these products.
Software System:
The test software runs on the Windows operating system and comes with programmable features. It allows any combination of various test modes, such as constant rate test force control, constant rate displacement control, test force holding, and displacement holding. This can meet the requirements of different test methods to the fullest and achieve functions like data display, curve plotting, data processing, storage, and printing as needed for the test. A control signal is sent from the computer to the servo valve to regulate its opening and direction, thereby controlling the flow into the cylinder and realizing constant speed test force and constant speed displacement control. It has complete file operation functions, enabling test reports, test parameters, and system parameters to be stored in file format. The system has different management levels, and system parameters are accessible to expert users, ensuring the system is flexible and reliable to use.
Standards:
ISO 6892, ISO 6934 BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
Preparations before installation:
The testing machine should be installed in a clean, dry, vibration-free room with a room temperature ranging from 10℃ to 35℃. Sufficient space (≥0.7m) should be left around the testing machine for testing and maintenance purposes.
The main body of the testing machine should be installed on a concrete foundation. The size of the foundation should be determined based on the shape and the foundation drawing, and space should be reserved for the installation of anchor bolts and other electrical wiring conduits, etc. The upper plane of the foundation should be leveled using a frame-type level. A dedicated oil source does not need to be installed on the foundation but requires the four corners to be level to avoid vibration and noise.
Main technical parameters:
| Model |
WAW-600G |
| Structure |
4 columns and 2 screws |
|
Control way
|
loading process manual control,computer automatic data dealing |
| Max.load (kN) |
600kN |
| Load accuracy |
≤±0.5% |
| Load range |
2%-100%FS |
| Isokinetic stress control range |
2-60 (N/mm2•S-1) |
| Stress rate error |
≤±0.5% |
| Load resolution |
1/600000 |
| Deformation Measurement Range |
2%～100%FS |
| Deformation accuracy |
≤±0.5% |
| Displacement resolution (mm) |
0.01 |
| Displacement error |
≤±0.5% |
| Max.piston stroke(mm) |
250 |
| Max piston moving speed |
0.5-100 mm/min Manual adjustment |
| Crosshead lifting speed |
300mm/min |
| Max. tension test space |
700mm (can customize) |
| Max.Compression Test Space |
600mm (can customize) |
| Clamping method |
Hydraulic clamp |
| Round specimen clamping range (mm) |
φ13-φ40 mm(13-26,26-40) |
| Flat specimen clamping range (mm) |
0-15,15-30 mm |
| Flat specimen clamping width(mm) |
80 |
| Compression plate size (mm) |
200*200 |
| Bending roller distance(mm) |
450 |
| Width of bending rollers (mm) |
120 |
| Power supply |
3-phase,AC380V, 50Hz(can be customized) |
| Weight and size |
2100KG,960mm*750*2270mm |
Packing and Shipping:
