Precise analysis of mechanical properties with servo hydraulic testing machine for steel strands in engineering
Test Objectives

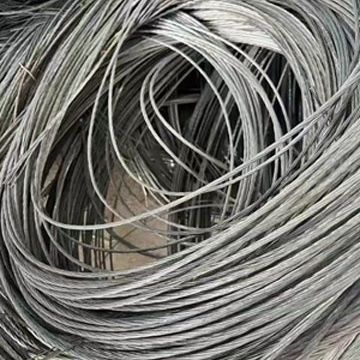

Via tensile testing, the mechanical property indices of steel strands are accurately derived, including tensile strength (ultimate strength under peak load), yield strength (stress corresponding to 0.2% plastic deformation), and elongation at break (deformation capacity of the gauge length after fracture).
These quantitative data form the basis for analyzing the material's mechanical behavior.
Test results are compared with design codes or relevant industry standards to evaluate whether the steel strands meet safety and reliability criteria for practical applications in bridges, building structures, prestressed engineering, etc. This process ensures the stability of engineering structures.
Working conditions
Ambient temperature should range from 10℃ to 35℃, with hourly temperature fluctuations not exceeding 2℃.
Relative humidity must not exceed 80%.
Power supply voltage variation should not exceed 10% of the rated voltage, with a frequency of 50Hz.
There should be no significant electromagnetic interference, shocks, vibrations, or corrosive media in the surrounding area.
A minimum of 0.7 meters of space must be maintained around the testing machine, and the working environment should be clean and dust-free.
The levelness of the mainframe tabletop and frame shall not exceed 2.5‰.
Test Standards
GB/T 5224-2014, GB/T 228.1-2021, ASTM A416/A416M-21, ISO 6934-1
Price advantage
We enhance in-house R&D efforts and have established a processing center to independently manufacture core components, enabling us to cut intermediate costs while maintaining consistent quality. Our high-quality products deliver far more savings than cheaper, low-quality alternatives. By reducing machine failure rates, we lower customers’ maintenance costs and boost operational efficiency—this combination of competitive pricing and superior quality brings real, tangible benefits to our clients.
Service advantages
Our comprehensive service range reflects professionalism through customer satisfaction. Pre-sales, we offer thorough consulting services, tailored to different industries to meet customers’ specific needs. Post-sales, we provide door-to-door installation and training as required. During use, if any issues arise, you can promptly reach our technical engineers via email, remote video, phone, or other means. Machine parts are free of charge during the warranty period, and we offer lifetime maintenance for the machines
.

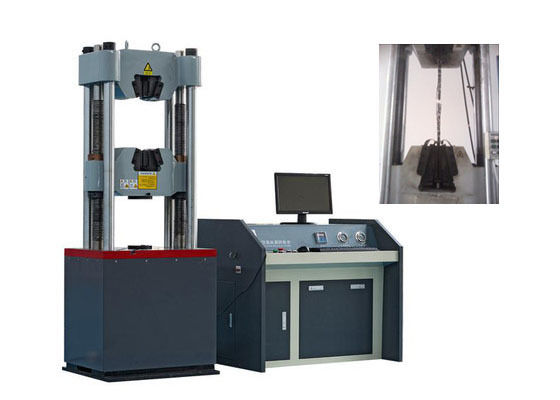

Main technical parameters:
| Model |
WAW-1000G |
| Structure |
4 columns and 2 screws |
|
Control way
|
loading process manual control,computer automatic data dealing |
| Max.load (kN) |
1000kN |
| Load accuracy |
≤±0.5% |
| Load range |
2%-100%FS |
| Isokinetic stress control range |
2-60 (N/mm2•S-1) |
| Stress rate error |
≤±0.5% |
| Load resolution |
1/600000 |
| Deformation Measurement Range |
2%～100%FS |
| Deformation accuracy |
≤±0.5% |
| Displacement resolution (mm) |
0.01 |
| Displacement error |
≤±0.5% |
| Max.piston stroke(mm) |
250 |
| Max piston moving speed |
0.5-100 mm/min Manual adjustment |
| Crosshead lifting speed |
300mm/min |
| Max. tension test space |
760mm (can customize) |
| Max.Compression Test Space |
660mm (can customize) |
| Clamping method |
Hydraulic clamp |
| Round specimen clamping range (mm) |
φ13-φ60 mm(13-26,26-40,40-60) |
| Flat specimen clamping range (mm) |
0-15,15-30 mm |
| Flat specimen clamping width(mm) |
80 |
| Compression plate size (mm) |
200*200 |
| Bending roller distance(mm) |
450 |
| Width of bending rollers (mm) |
120 |
| Power supply |
3-phase,AC380V, 50Hz(can be customized) |
| Weight and size |
3200KG,1060mm*850*2370mm |
Frequently Asked Questions:
Q1. Are your company a trading one or a factory?
A: We are a factory-trade integrated enterprise, with 18 years of focus on the testing instruments field and 14 years of export experience.
Q2. How to choose the most suitable products?
A: Our professional team will offer the best recommendations once you tell us the type of test you need and the required specifications.
Q3. What's the delivery term?
A: Most of the time, we have stock in our factory. If out of stock, the delivery time is normally 15-20 working days after receiving the deposit. For urgent needs, we can arrange special processing for you.
Q4. Do you accept customization service?
A: Yes, of course. We provide not only standard machines but also customized ones according to your requirements. Feel free to share your needs—we’ll try our best to meet them.
Q5. Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you or your team to visit our factory. We’ll help arrange hotels and pick you up from the airport.
Q6. How about your warranty?
A: Generally, our warranty period is one year. Within this period, we offer technical support and replacement parts. If necessary, our engineers may visit your site for better service.
Q7. How about the packing for the machine? Is it safely protected during transportation?
A: Our machines are packed in standard export wooden boxes, ensuring they won’t be damaged. We’ve delivered many testing machines abroad by sea or air without any damage.
