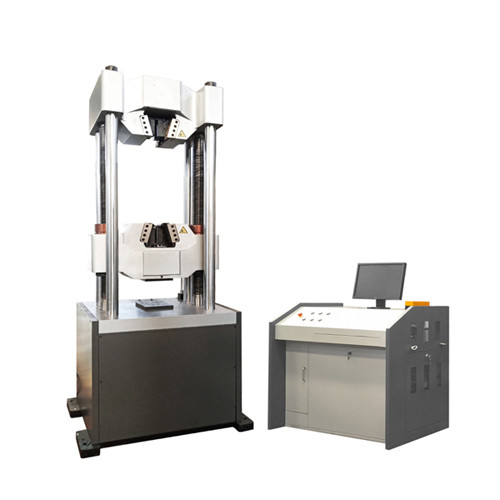

ISO 6934-1 Hydraulic Universal Testing Machine for Steel Strand Tensile Test
I. Test Objectives
Determination of Mechanical Properties:
Through the tensile test, accurately obtain the mechanical property parameters of steel strands, including tensile strength (ultimate strength under maximum load), yield strength (stress at 0.2% plastic deformation), and elongation after fracture (extension capacity of the gauge section after fracture), providing quantitative data for material mechanical property analysis.
Verification of Engineering Applicability:
Compare the test results with design specifications or relevant standards to determine whether the steel strands meet the safety and reliability requirements for practical application scenarios such as bridges, building structures, and prestressed engineering, ensuring the stability of engineering structures.
2. Test Standards
GB/T 5224-2014 Steel Strands for Prestressed Concrete
Scope of Application:
Specifically for steel strands used in prestressed concrete, it specifies the specific methods, performance indicators, and acceptance rules for tensile tests, serving as the core standard for the production and inspection of prestressed steel strands.
GB/T 228.1-2021 Metallic Materials—Tensile Testing—Part 1: Method of Test at Room Temperature
General Basic Standard: Applicable to tensile tests of various metallic materials at room temperature, specifying general methods for test equipment, sample preparation, test procedures, and data processing, providing basic operation specifications for steel strand tensile tests.
ASTM A416/A416M-21 Standard Specification for Steel Strands for Prestressed Concrete
American Standard: Mainly used to standardize the technical requirements for steel strands in prestressed concrete, including tensile performance indicators, test methods, and acceptance criteria, widely applied in international engineering fields (especially in North America).
ISO 6934-1:Steel for the Reinforcement of Concrete—Part 1: Strands
ISO Standard: Specifies the mechanical properties, test methods, etc., of steel strands for concrete structures, providing a unified reference for the production and inspection of steel strands worldwide.
3.Main technical parameters:
| Model |
WAW-1000G |
| Structure |
4 columns and 2 screws |
|
Control way
|
loading process manual control,computer automatic data dealing |
| Max.load (kN) |
1000kN |
| Load accuracy |
≤±0.5% |
| Load range |
2%-100%FS |
| Isokinetic stress control range |
2-60 (N/mm2•S-1) |
| Stress rate error |
≤±0.5% |
| Load resolution |
1/600000 |
| Deformation Measurement Range |
2%～100%FS |
| Deformation accuracy |
≤±0.5% |
| Displacement resolution (mm) |
0.01 |
| Displacement error |
≤±0.5% |
| Max.piston stroke(mm) |
250 |
| Max piston moving speed |
0.5-100 mm/min Manual adjustment |
| Crosshead lifting speed |
300mm/min |
| Max. tension test space |
700mm (can customize) |
| Max.Compression Test Space |
600mm (can customize) |
| Clamping method |
Hydraulic clamp |
| Round specimen clamping range (mm) |
φ13-φ60 mm(13-26,26-40,40-60) |
| Flat specimen clamping range (mm) |
0-15,15-30 mm |
| Flat specimen clamping width(mm) |
80 |
| Compression plate size (mm) |
200*200 |
| Bending roller distance(mm) |
450 |
| Width of bending rollers (mm) |
120 |
| Power supply |
3-phase,AC380V, 50Hz(can be customized) |
| Weight and size |
3200KG,1060mm*850*2370mm |
Packing and Shipping:
Frequently Asked Questions:
Q1. Are your company a trading one or a factory?
A: Factory + trade (ntegration), 18 years focusing on test instnments feld, 14 years export experl ence.
Q2. How to choose the most suitable products?
A: Our professional leam will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification
Q3.what's the dellvery term?
A: At most of time, we have stock in the factory. If there is no stock, normaly, the delivery time is 15-20 working days after deposit receipt
If you are in urgent need, we can consider making special arrangement for you.
Q4.Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request.
Don't hesitate to tell us your requirement we will try our best to meet your needs.
Q5. Can we visit your factory betore order?
A: Yes, we warmly welcome and sincerely invite you or your team to vist our factory, we will help to arrange hotel and pick up you from airpor.
Q6. How about your warranty?
A: Generaly, our waranty is one year witrin the warranty period. we can offer technlque support and part parts change. Necessarily, our engineers may go to your place for better service.
Q7. How about the packing for machine, Is it safely protected during transportation?
A: Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by ar without damage.
