Electro-hydraulic Servo Universal Testing Machine for Prestressed Steel(Microcomputer Controlled)
Working principle:
The host adopts six-column frame structure with four columns and two screws, with the upper beam and lower beam forming the stretching space, and the lower beam and workbench forming the compression space. Composed of an electrical controller, servo valve, load sensor, displacement sensor, extensometer, and computer, it forms a closed-loop servo control system that can automatically and precisely control the testing process and automatically measure test parameters such as test force, displacement, deformation, etc.
Price advantage:
We increase our own research and development efforts, built processing center, produce the core parts independently, so we could reduce link costs with the same quality. Our good quality products could save you much more than some other low price but bad quality products. Reducing the failure rate of the machine to reduce the customer's maintenance costs, but also improve the efficiency of the machine, this price with high quality could give customers real benefits.
Features:
High-precision measurement:
Equipped with high-precision load sensors, displacement sensors, and extensometers, etc., it can accurately measure parameters such as force, displacement, and deformation during the testing process. The force value accuracy is typically around ±0.5%.
Multiple control modes:
It offers various control modes including force control, deformation control, and displacement control. During the test, it can smoothly switch between different control modes according to the set program.
Wide speed range:
It can achieve stepless speed regulation from very low to relatively high speeds, meeting the loading rate requirements of different materials and tests. The speed range is generally 0.05 - 200mm/min.
Automatic control and data processing:
The test process is automatically controlled through computer software, which can automatically collect, record, and process test data. It can automatically calculate test results such as specified non-proportional elongation strength, tensile strength, elastic modulus, and elongation, and can display the test curve in real time and print the test report.
Multi-functional testing:

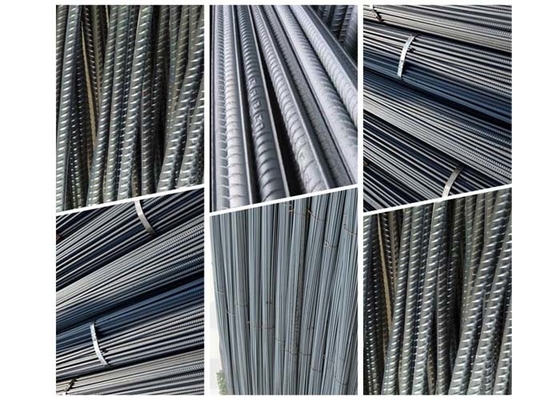

It can not only be used for tensile tests of prestressed concrete steel, but also complete various mechanical property tests such as compression, bending, and shearing of other metals, non-metals, and components by replacing fixtures and other auxiliary tools.
Software System:
The testing software operates on a Windows-based platform, featuring a programmable modular architecture that supports seamless integration of diverse control modes. These include:
Constant-Rate Force Control (CRFC)
Constant-Rate Displacement Control (CRDC)
Force Holding Mode (FH)
Displacement Holding Mode (DH)
This flexibility allows users to configure custom test sequences that adhere to international standards (ISO, ASTM, GB/T) while accommodating non-standard methodologies. The software employs a closed-loop servo control system where the computer sends proportional signals to the servo valve, modulating flow rate and direction to achieve precise hydraulic actuation. Key capabilities include:
Real-time data visualization with multi-curve overlay
Automated parameter calculation (yield strength, modulus, elongation)
Comprehensive data management via encrypted file storage
Dynamic report generation with customizable templates
System security is enforced through role-based access control (RBAC), distinguishing between operators (basic functions), technicians (parameter adjustments), and experts (system configuration). This hierarchical structure ensures both operational flexibility and data integrity.
Standards:
ISO 6892, ISO 6934 BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
Main technical parameters:
| Model |
WAW-600G |
| Structure |
4 columns and 2 screws |
|
Control way
|
loading process manual control,computer automatic data dealing |
| Max.load (kN) |
600kN |
| Load accuracy |
≤±0.5% |
| Load range |
2%-100%FS |
| Isokinetic stress control range |
2-60 (N/mm2•S-1) |
| Stress rate error |
≤±0.5% |
| Load resolution |
1/600000 |
| Deformation Measurement Range |
2%～100%FS |
| Deformation accuracy |
≤±0.5% |
| Displacement resolution (mm) |
0.01 |
| Displacement error |
≤±0.5% |
| Max.piston stroke(mm) |
250 |
| Max piston moving speed |
0.5-100 mm/min Manual adjustment |
| Crosshead lifting speed |
300mm/min |
| Max. tension test space |
700mm (can customize) |
| Max.Compression Test Space |
600mm (can customize) |
| Clamping method |
Hydraulic clamp |
| Round specimen clamping range (mm) |
φ13-φ40 mm(13-26,26-40) |
| Flat specimen clamping range (mm) |
0-15,15-30 mm |
| Flat specimen clamping width(mm) |
80 |
| Compression plate size (mm) |
200*200 |
| Bending roller distance(mm) |
450 |
| Width of bending rollers (mm) |
120 |
| Power supply |
3-phase,AC380V, 50Hz(can be customized) |
| Weight and size |
2100KG,960mm*750*2270mm |
Packing and Shipping:
Frequently Asked Questions:
Q1. Are your company a trading one or a factory?
A: Factory + trade (ntegration), 18 years focusing on test instnments feld, 14 years export experl ence.
Q2. How to choose the most suitable products?
A: Our professional leam will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification
Q3.what's the dellvery term?
A: At most of time, we have stock in the factory. If there is no stock, normaly, the delivery time is 15-20 working days after deposit receipt
If you are in urgent need, we can consider making special arrangement for you.
Q4.Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request.
Don't hesitate to tell us your requirement we will try our best to meet your needs.
Q5. Can we visit your factory betore order?
A: Yes, we warmly welcome and sincerely invite you or your team to vist our factory, we will help to arrange hotel and pick up you from airpor.
Q6. How about your warranty?
A: Generaly, our waranty is one year witrin the warranty period. we can offer technlque support and part parts change. Necessarily, our engineers may go to your place for better service.
Q7. How about the packing for machine, Is it safely protected during transportation?
A: Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by ar without damage.
