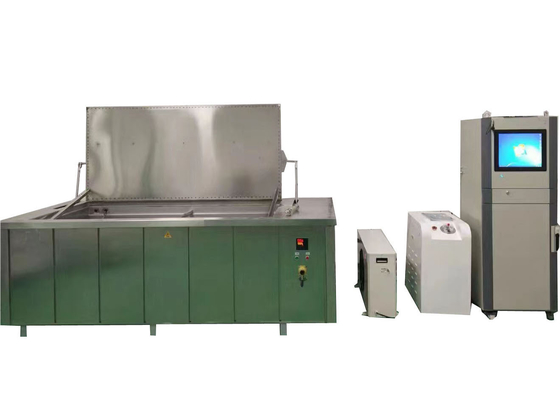

ISO 1167 Hydrostatic Pressure & Bursting Testing Machine and Pressure Test End Cap for Plastic Pipe
Purpose and Usage:
The pipe hydrostatic pressure testing machine serves as a specialized apparatus for assessing the endurance and safety of thermoplastic and composite pipes under prolonged internal pressure and stable temperature conditions. Its core functions involve determining two key parameters:
Time to Failure: The length of time a pipe can withstand continuous pressure before succumbing to damage.
Peak Instantaneous Burst Pressure: The highest pressure value at which a pipe experiences sudden rupt.
Applicable Pipe Categories:
The machine is capable of testing a wide range of pipe materials, including:
Thermoplastic Pipes:
Polypropylene variants (PP-R, PP-B, PPA).
Polyethylene types (PE, PE-X).
Polyvinyl chloride derivatives (PVC, UPVC, PVC-C).
Composite Pipes: Such as aluminum-plastic composite pipes, which integrate plastic and metal layers to enhance structural strength.
Product Characteristics:
1. User-Friendly Control
Has a touchscreen or PC interface to set test parameters (pressure, temperature, time) easily.
2. Compact Multi-Pressure Design
Fits in <1 m² space and offers up to 50 different pressure levels (including water supply).
3. Smart Specimen Recognition
Detects pipe size and material (e.g., PP-R, PE) automatically and adjusts tests for accuracy.
4. Optimized Pressure Control
Uses smart algorithms to create ideal pressure profiles (e.g., gradual increases) for realistic testing.
5. Precise Pressure Adjustment
Allows independent pressure settings for each test channel (e.g., 0.1–200 bar) with high accuracy (±0.5%).
6. Long-Lasting Components
Reduces wear on solenoid valves for minimal maintenance and 24/7 operation.
7. Corrosion-Resistant Build
All parts touching water are made of high-quality stainless steel for durability.
8. Multilingual Display
Supports multiple languages (English, Chinese, etc.) for easy use worldwide.
9. On-The-Go Calibration
Lets you calibrate pressure during tests without stopping, keeping data reliable.
10. Safety First
Has electrical, mechanical, and software safeguards (e.g., emergency stops, leak detection).
11. Easy Data Sharing
Uses TCP/IP protocol to send data to computers or clouds in real time for reporting.
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
The free length of the specimens:
| Specimen Type |
Free Length Requirements |
| Extruded Pipe Specimens |
dn<315mm: ≥ 3dn and ≥ 250mm; dn>315mm: ≥ 2dn |
| Injection-molded Pipe Specimens |
dn<50mm: 3dn; 50mm ≤ dn ≤ 110mm: ≥ 140mm |
| Assembled Specimens with Hydrostatic Thrust (Two Pipe Sections) |
≥ 3dn and ≥ 250mm (dn>315mm: ≥ 2dn if min. length not met) |
| Assembled Specimens with Hydrostatic Thrust (with Fittings) |
≥ 2dn and ≥ 150mm; dn>250mm: ≥ 1.5dn |
| Assembled Specimens with Hydrostatic Thrust (Saddle Branch) |
≥ 100mm |
| Assembled Specimens without Hydrostatic Thrust |
= dn and ≥ 150mm |
Technical Parameters:
| Model |
XGY-10C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-10MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |

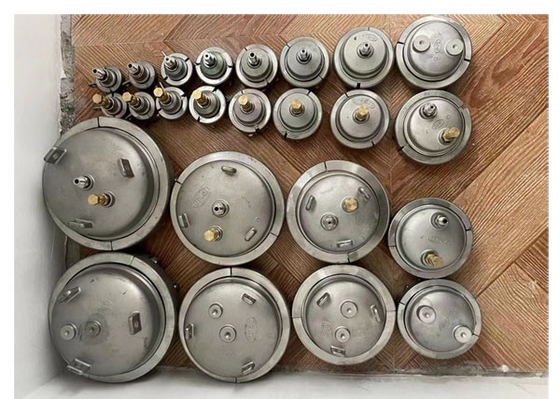

| end caps models |
from Φ8 to 1800mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service
We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:
- Machine installation and setup
- Troubleshooting and technical advice
- Repair and maintenance services
- Spare parts and consumables
- Software updates and upgrades
We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.
FAQ:
Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
