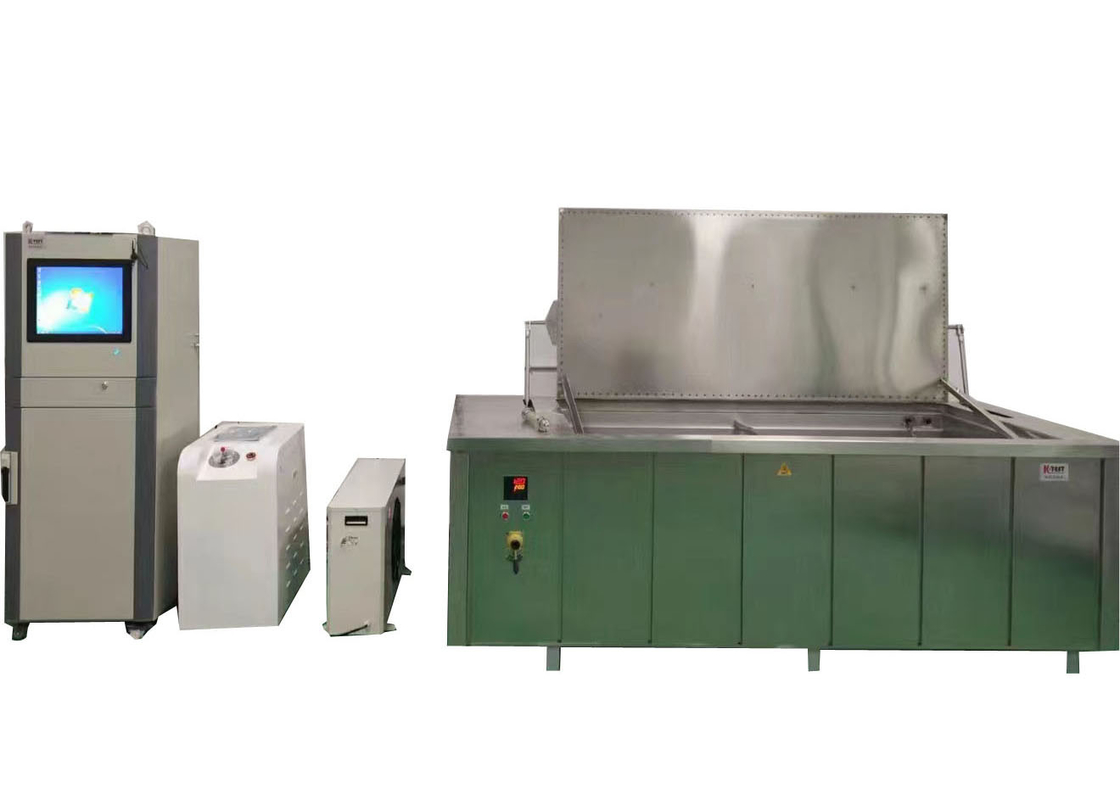

ISO 1167 Hydrostatic Pressure Testing Machine with PVC hydrostatic Presuure Clamp
Scope of applications:
The pipe water pressure testing machine is used to measure the failure time or the maximum instantaneous burst pressure value of thermoplastic pipes and composite pipes (such as pp-rpp-b, PPA, pe, PE-X, PVCPVC-upvc-c and aluminum-plastic composite pipes, etc.) under the pressure of constant internal pressure and constant temperature for a long time. It is a commonly used testing device by plastic pipe manufacturers and testing institutions..
Purposes:
Hydrostatic pressure testing machines are mainly used to determine the internal pressure resistance of plastic pipes, fittings, and assemblies. Under controlled conditions, products made of materials such as PP, PE, PVC, PVC-C, and ABS are subjected to a specific internal pressure for a certain period of time. This is used to evaluate their pressure-bearing capacity and determine whether failures such as leakage, bursting, or excessive deformation will occur. This test is of great significance for ensuring the quality, safety, and reliability of plastic pipes and related components in fluid transportation systems. These systems are widely used in fields such as water treatment, sewage treatment, gas transmission, and industrial fluid transportation.
Product Characteristics:
1. An operation terminal with a touch screen or PC for setting test parameters.
2. In an area of less than 1 square meter, up to 50 different pressures are available, including pressure water supply.
3. It can distinguish the size and material of specimens very well.
4. Then provide the optimized pressure rise solution and algorithm.
5. High-precision pressure control. Selective adjustable input pressure in each individual module
6. It reduces the wear of the solenoid valve and has a long service life.
7. All metal parts in contact with the medium are composed of
8. High-quality stainless steel.
9. The operator-friendly display interface offers multiple languages.
10. It is convenient to calibrate the pressure during the test, which means the system can continue to operate
During calibration.
11. Multi-level protection comes from the electrical part, mechanical part and software.
12. Reliable data exchange is carried out via the TCP/IP protocol.
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
The free length of the specimens:
| Specimen Type |
Free Length Requirements |
| Extruded Pipe Specimens |
dn<315mm: ≥ 3dn and ≥ 250mm; dn>315mm: ≥ 2dn |
| Injection-molded Pipe Specimens |
dn<50mm: 3dn; 50mm ≤ dn ≤ 110mm: ≥ 140mm |
| Assembled Specimens with Hydrostatic Thrust (Two Pipe Sections) |
≥ 3dn and ≥ 250mm (dn>315mm: ≥ 2dn if min. length not met) |
| Assembled Specimens with Hydrostatic Thrust (with Fittings) |
≥ 2dn and ≥ 150mm; dn>250mm: ≥ 1.5dn |
| Assembled Specimens with Hydrostatic Thrust (Saddle Branch) |
≥ 100mm |
| Assembled Specimens without Hydrostatic Thrust |
= dn and ≥ 150mm |
Technical Parameters:
| Model |
XGY-10C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-10MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |

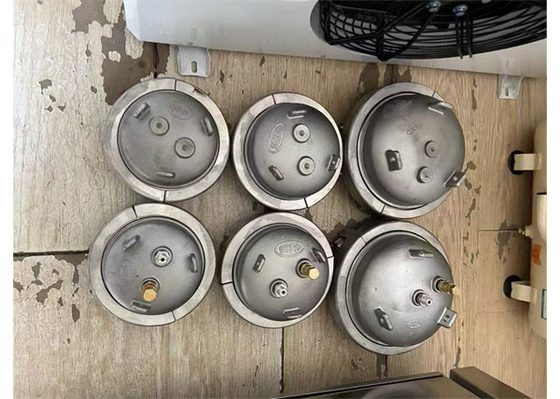

| end caps models |
from Φ8 to 1800mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service
We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:
- Machine installation and setup
- Troubleshooting and technical advice
- Repair and maintenance services
- Spare parts and consumables
- Software updates and upgrades
We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.
