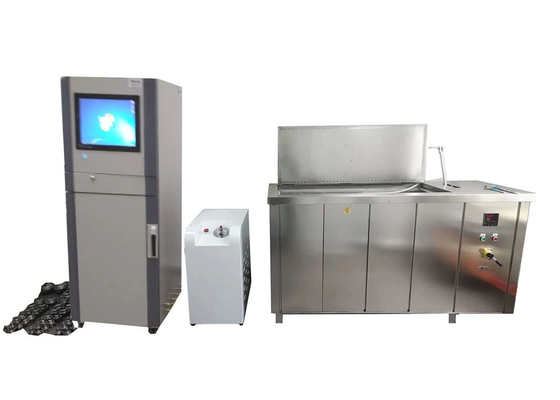

The Hydrostatic Pressure Testing Machine serves the purpose of measuring the internal pressure tolerance of thermoplastic pipes, fittings, and assemblies utilized for fluid conveyance
Applications:
The hydrostatic testing machine can be used for various thermoplastic pipes, fittings, and components used for fluid transportation. Materials such as polypropylene (PP), polyethylene (PE), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (PVC-C), and acrylonitrile butadiene styrene copolymer (ABS) are just a part of it. This category covers a variety of products, such as extruded pipes, injection molded pipes, and assembled specimens, whether or not they involve hydrostatic thrust. Examples of suitable specimens include hot-melt butt welded pipe sections, samples with one or more fittings, and saddle shaped branch specimens. The nominal outer diameter (dn) of test pipes varies greatly, ranging from 25 millimeters to 1600 millimeters depending on the specific requirements of different specimen types.
Purposes:
Hydrostatic pressure testing machines are mainly used to determine the internal pressure resistance of plastic pipes, fittings, and assemblies. Under controlled conditions, products made of materials such as PP, PE, PVC, PVC-C, and ABS are subjected to a specific internal pressure for a certain period of time. This is used to evaluate their pressure-bearing capacity and determine whether failures such as leakage, bursting, or excessive deformation will occur. This test is of great significance for ensuring the quality, safety, and reliability of plastic pipes and related components in fluid transportation systems. These systems are widely used in fields such as water treatment, sewage treatment, gas transmission, and industrial fluid transportation.
Product Characteristics:
1. Users can effortlessly set test parameters using an operating terminal that combines a touchscreen or a PC.
2. Occupying an area of less than one square meter, it can produce as many as 50 different pressures, including the water supply pressure.
3. Its intelligent recognition capacity allows it to identify the size and material of the sample and then formulate an optimized pressure - boosting plan along with an algorithm.
4. This device stands out for its precise pressure control. The option to adjust the input pressure of each individual module separately helps to decrease the wear of solenoid valves and guarantees a long - lasting operation.
5. Every metal part that comes into contact with the medium is made of high - quality stainless steel.
6. The display interface, designed with user convenience in mind, offers various language options, fully meeting the diverse requirements of customers.
7. Conducting pressure calibration during the testing is simple, and the system has the option to continue running while calibration is in progress.
8. It provides protection at multiple levels, covering electrical, mechanical, and software aspects.
9. It enables smooth and dependable data communication through the TCP/IP protocol.
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
The free length of the specimens:
| Specimen Type |
Free Length Requirements |
| Extruded Pipe Specimens |
dn<315mm: ≥ 3dn and ≥ 250mm; dn>315mm: ≥ 2dn |
| Injection-molded Pipe Specimens |
dn<50mm: 3dn; 50mm ≤ dn ≤ 110mm: ≥ 140mm |
| Assembled Specimens with Hydrostatic Thrust (Two Pipe Sections) |
≥ 3dn and ≥ 250mm (dn>315mm: ≥ 2dn if min. length not met) |
| Assembled Specimens with Hydrostatic Thrust (with Fittings) |
≥ 2dn and ≥ 150mm; dn>250mm: ≥ 1.5dn |
| Assembled Specimens with Hydrostatic Thrust (Saddle Branch) |
≥ 100mm |
| Assembled Specimens without Hydrostatic Thrust |
= dn and ≥ 150mm |
Technical Parameters:
| Model |
XGY-16C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| end caps models |

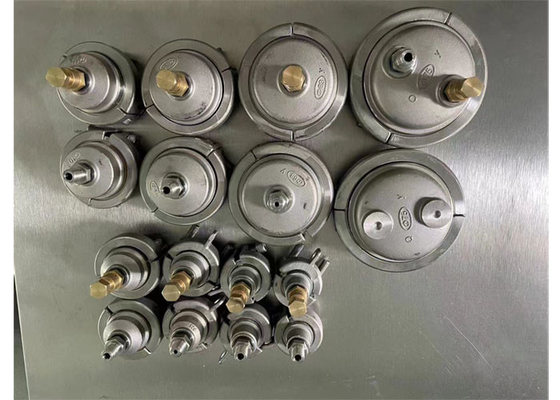

from Φ8 to 1800mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service
We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:
- Machine installation and setup
- Troubleshooting and technical advice
- Repair and maintenance services
- Spare parts and consumables
- Software updates and upgrades
We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.
FAQ:
Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
