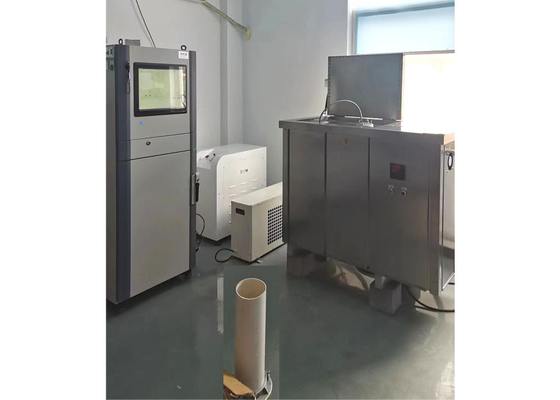

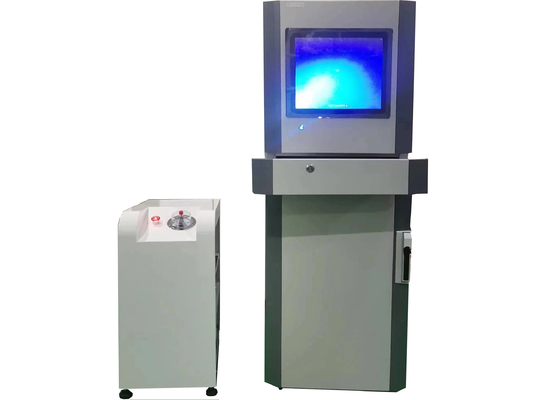

Equipment for Testing the Hydrostatic Pressure Resistance and Burst Strength of Steel-Reinforced Polyethylene Pipes Used in Water Supply
Applications:
The Hydrostatic Pressure Testing Machine is equipped with advanced technology that allows for pressure-time and pressure-temperature test curves. This feature ensures that the test results are accurate and reliable, providing accurate data for analysis and decision-making. The machine is designed to meet international standards such as ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, and ISO13479.
Product Description:
1. High-Pressure & High-Temperature Resistance: Its durable construction allows testing components used in applications where sustained pressure and elevated temperatures are essential, ensuring reliability in harsh environments.
2. User-Friendly Operation: Features include intuitive controls for easy setup/operation, minimal maintenance needs to maximize uptime, and safety safeguards like automatic pressure cutoff and emergency stops to protect operators.
3. Advanced Data Acquisition: Utilizes precision technology to generate detailed pressure-time and pressure-temperature curves, ensuring accurate, repeatable results.
Product Characteristics:
1. There is an operating terminal equipped with a touch screen or a PC, which can be used for setting test parameters.
2. Within an area of less than 1 square meter, it can achieve up to 50 different pressures, including the pressure of the water supply.
3. It has the intelligence to identify the size and material of the specimen, and then provides an optimized pressure increasing solution and algorithm.
4. It features high-precision pressure control. The selectively adjustable input pressure in each individual module can reduce the abrasion of solenoid valves and ensure a long service life.
5. All the metal components that come into contact with the medium are fabricated from high-quality stainless steel.
6. The operator-friendly display interface offers multiple languages to meet the most diverse requirements of customers.
7. It is convenient to calibrate the pressure during the testing process, which means that the system can keep running during the calibration (optional).
8. There are multistage protections from the electrical part, the mechanical part and the software.
9. It enables reliable data exchange through the TCP/IP protocol.
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters:
| Model |
XGY-10C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-10MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| end caps models |
from Φ16 to 630mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service
We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:
- Machine installation and setup
- Troubleshooting and technical advice
- Repair and maintenance services
- Spare parts and consumables
- Software updates and upgrades
We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.
FAQ:
Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
