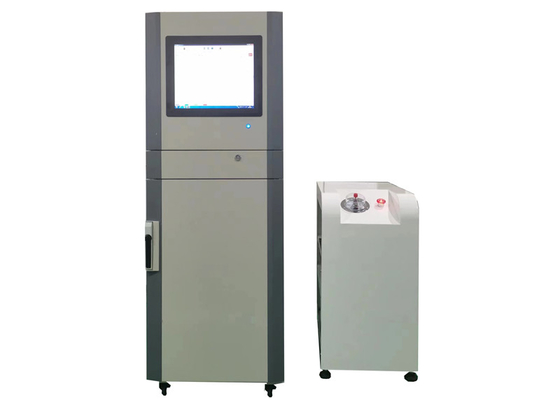

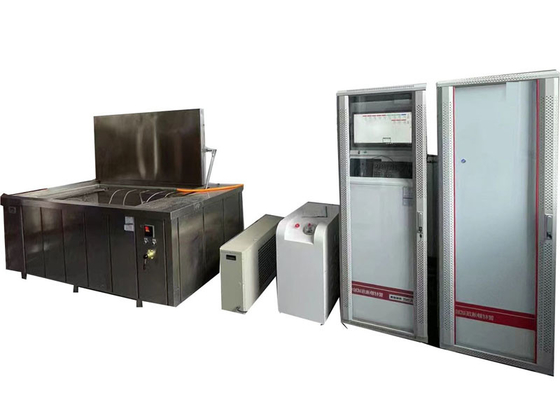

Hydrostatic Pressure Testing & Bursting Machine for Steel Reinforced Polyethylene plastic pipe for water supply
Applications:
The pipe hydrostatic testing machine is utilized to assess the pressure failure time of thermoplastic and composite pipes—such as PP-R, PP-B, PPA, PE, PE-X, PVC (UPVC, CPVC), steel-reinforced polyethylene pipes, and aluminum-plastic composite pipes—when subjected to prolonged constant internal pressure and temperature. It also measures the peak instantaneous burst pressure during sudden pipe rupture. Widely adopted by plastic pipe manufacturers and testing laboratories, this equipment serves as a key tool for evaluating the pressure resistance performance of various pipelines.
Product Description:
This hydrostatic and burst testing machine is engineered to evaluate a wide range of pipes and fittings—including PP, PE, PVC, PPR, PB, and PERT—under high-pressure and high-temperature conditions. Built to endure extreme operational parameters, it is ideally suited for testing components used in demanding applications where sustained pressure and elevated temperatures are critical factors.
Designed with user-centric functionality, the machine offers intuitive operation and minimal maintenance requirements. Its operator-friendly controls simplify setup and testing, while safety features such as automatic pressure shutdown and emergency stop mechanisms prioritize personnel protection during use.
Incorporating advanced measurement technology, the system generates precise pressure-time and pressure-temperature test curves, ensuring reliable data for performance analysis. It complies with international standards including ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, and ISO13479, making it a trusted solution for regulatory compliance and quality assurance.
Product Characteristics:
1.Operating terminal with touch screen or PC for test parameter settings.
2.On less than 1m2 area, up to 50 different pressures including the pressure water supply.
3.It is intelligent to distinguish the size and material of specimen, then provide optimized pressure rising solution and algorithm.
4.High accuracy pressure control. Selectively adjustable input pressure in each individual module reduces the wearing of solenoid valves, endures a long service life.
5.All metal components that come into contact with the medium are made of high-quality stainless steel.
6.Operator-friendly display interface provides multi languages to suit the most varied customer requirements.
7.It is convenient to calibrate pressure during testing, meaning that the system may continue running during calibration(optional).
8.Multistage protections are from electric partt, mechanical part as well as software.
9.Reliable data exchange via TCP/IP protocol.
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters:
| Model |
XGY-10C |
| Diameter range |
Φ8-1800mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-10MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| end caps models |
from Φ16 to 630mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine Technical Support and Service
We provide technical support for Hydrostatic Pressure Testing Machines. Our experienced technical support team can provide:
- Machine installation and setup
- Troubleshooting and technical advice
- Repair and maintenance services
- Spare parts and consumables
- Software updates and upgrades
We are committed to providing excellent customer service and are available to answer any questions you may have. If you have any queries, please don't hesitate to contact us.
FAQ:
Q1: What is the brand name of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine ?
A1: The brand name for the Hydrostatic Pressure Testing Machine is JHH, which is manufactured in Beijing, China.
Q2: What is the purpose of the Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine?
A2: The Hydrostatic testing machine Plastic Pipe Hydrostatic Pressure Testing Machine is used to test the hydrostatic and bursting strength of plastic pipe.
Q3: What type of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine can be used to test plastic pipe, composite pipe (like PP-R, PP-B, PP-A, PVC, PE, PE-X etc.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine is accurate to within 0.1% of the full-scale reading.
