ASTM D5289 Computer Control Rubber Vulcanization Measuring Instrument Vulcanization Using Rotorless Curemeters

Large Image : ASTM D5289 Computer Control Rubber Vulcanization Measuring Instrument Vulcanization Using Rotorless Curemeters

Product Details:

Place of Origin:	China
Brand Name:	JINHAIHU
Certification:	ISO 9001
Model Number:	JSX-2000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Export packing
Delivery Time:	5~10 work days
Payment Terms:	T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability:	30 set one month

Contact Now

Detailed Product Description

Product Name:	ASTM D5289 Computer Control Rubber Vulcanization Measuring Instrument Vulcanization Using Rotorless Curemeters	Range Of Temperature:	Room Temperature - 200 ℃
Temperature Measuring Accuracy:	100-200 ℃, ±0.01 ℃	Torque Range:	(0-5N. M, 0-10N. M, 0-20N. M) Automatic
Torque Display Accuracy:	0.001N.M	Die Cavity Frequency:	1.7Hz
Set The Smallest Unit:	0.1 ℃
Highlight:	Computer control Rubber Vulcanization Measuring Instrument , Rotorless Curemeters Rubber Vulcanization Measuring Instrument , ASTM D5289 Rubber Vulcanization Measuring Instrument

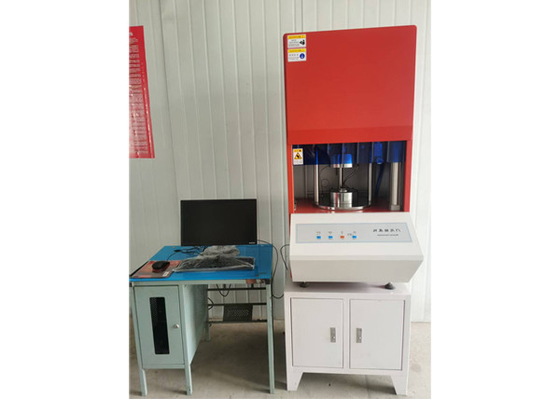

ASTM D5289 Computer control rubber vulcanization measuring instrument Vulcanization using rotorless curemeters

Features and uses:

This machine meets the data of T10, T30, T50, T60 and T90 of GB / T16584 rotor-less vulcanization instrument for rubber ——, ISO6502 requirement and Italian standard. The machine is used to determine the characteristics of unvulcanized rubber and find out the most suitable vulcanization time of rubber. The machine adopts imported intelligent digital temperature control meter, simple adjustment and setting, wide temperature control range, high control accuracy, its stability, reproducibility and accuracy are better than the general rotor vulcanization meter. Computer control and interface board for data acquisition, save, processing and print test results to make the function more powerful. Fully shows its highly automated characteristics. Also has the curve comparison, amplification and other functions. The application of WINDOWS series operating system platform, the use of graphical image software operation interface, so that the digital processing is more accurate, so that the user test operation is simple, fast, flexible, convenient maintenance.

Technical requirements for data processing:

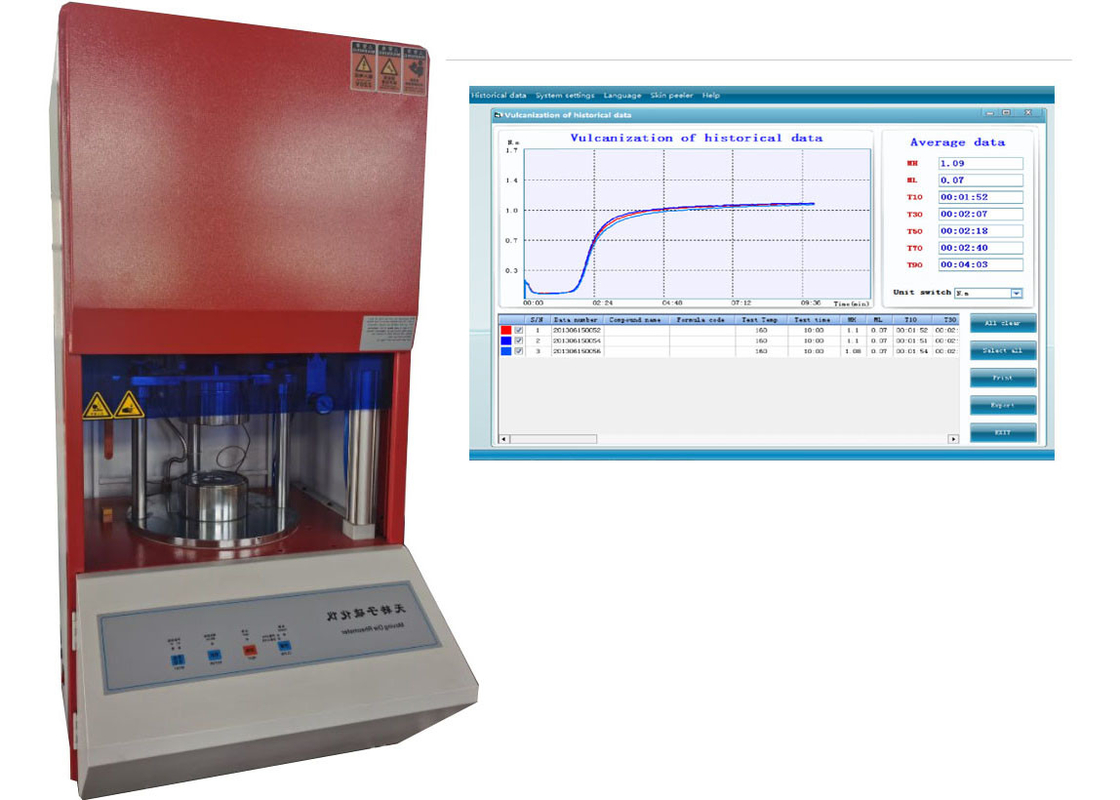

The drawing format, curve and parameters are shown in figure 1 below:

ASTM D5289 Computer Control Rubber Vulcanization Measuring Instrument Vulcanization Using Rotorless Curemeters 0

figure 1

ASTM D5289 Computer Control Rubber Vulcanization Measuring Instrument Vulcanization Using Rotorless Curemeters 1

Technical specifications and specifications:

Execution standards	GB/T16584, ISO-6502, ASTM D5289
Mold cavity structure	Fully enclosed type
Temperature control range	Room temperature -200 ℃
Temperature fluctuation	≤ ±0.2℃
Temperature display resolution	0.01 ℃
Torque range	0-20N.M
Torque display accuracy	0.001 N.M
Power supply	50Hz,~ 220V±10％
Compressed air	≥ 0.40Mpa
Swing frequency	100cpm (1.7HZ)
Swing angle	± 0.5. ± 1
Torque range	(0-5N. m, 0-10N. m, 0-20N. m) Automatic
Environmental temperature	0-35 ℃, relative humidity<80%
Sulfurization time setting range	2-300min, t90 is within the range of 10 seconds to 5 hours.
Print content	Date, time, temperature, vulcanization curve, temperature curve ML,MH,ts1,ts2,t10,t90,Vc1 Vc2
Dimensions	600 * 700 * 1250mm

ASTM D5289 Computer Control Rubber Vulcanization Measuring Instrument Vulcanization Using Rotorless Curemeters 2

ASTM D5289 Computer Control Rubber Vulcanization Measuring Instrument Vulcanization Using Rotorless Curemeters 4
