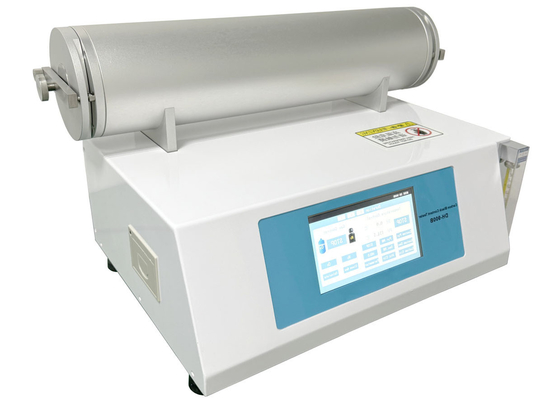

ISO 6964 Polyolefin pipes and fittings -Determination of carbon black content by calcination and pyrolysis
Summary:
Application:
The ISO 6964 Polyolefin pipes and fittings -Determination of carbon black content by calcination and pyrolysis suitable for the determination of carbon black in polyethylene, polypropylene and polybutene plastics.
Technical features:
1. 4 digit digital tube display, display the current temperature, set the temperature, can set 30 temperature program segment.
2. Heating furnace body and control system integration design, convenient for user's instrument management.
3. Temperature program section manual input, automatic storage, save successfully, user operation only need a key button to start.
4. Nitrogen and oxygen gas instrument automatic switching, equipped with high-precision floating ball gas flowmeter.
5. Rapid cooling device is selected to realize rapid cooling of temperature and improve the utilization efficiency of the machine.
6. Double door knob furnace door design, convenient for users to take and charge the material.
7. Nano blanket new insulation material, achieve excellent thermal insulation effect, high uniformity of furnace temperature.
Meet standards:
Conform but not limited to the following criteria: GB/T 2951.8, GB/T 13021, JTG E50 T1165, IEC 60811-4-1, ISO 6964.
Technical parameters:
| Temperature |
room temperature to 999.9 ℃ |
| Furnace tube size |
Ф 30 mm * 500 mm |
| Length of heating zone |
370mm |
| Heating element |
resistance wire |
| Flow meter range |
3L/h (scale 0.1L/h) |
| Gas flowmeter |
rotameter |

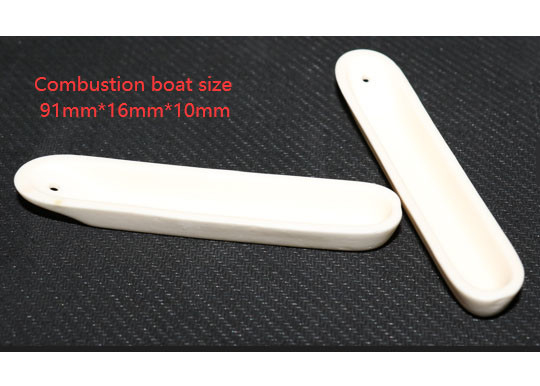

| Combustion boat size |
91mm*16mm*10mm |
| Display mode |
7 inches wide touch screen |
| Emperature control |
PID programmable control, automatic memory temperature setting section |
| Calculation method |
After entering the weighing value, the carbon black content, ash content and filler content are automatically calculated |
| Data output mode |
built-in micro thermal printer, can print carbon black content value |
| Power supply |
AC220V 50HZ or 110V 60HZ |
| Rated power |
1KW |
Configuration list:
1. Main engine of carbon black content measuring instrument one set
2. Burning boat tray one
3. 1 power cord
4. Burning boats 10pcs
5. CD (operations video) one
6. Oxygen airway, nitrogen airway and exhaust airway, each 5m
7. Operation manual one
8. Spoons and medicine tweezers each one
9. Custom pressure reducing valve joint and quick joint 2 pairs of
10. Fused glass fuses 5pcs
Optional accessories:
Rapid cooling device
