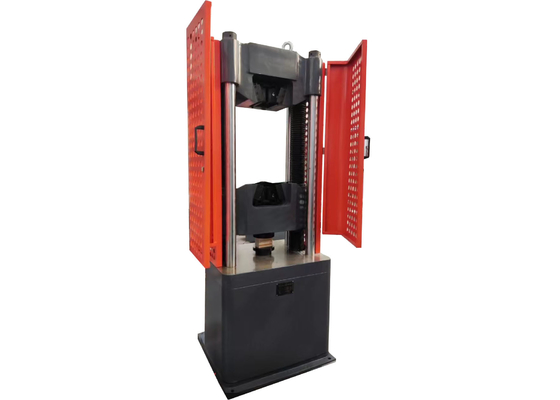

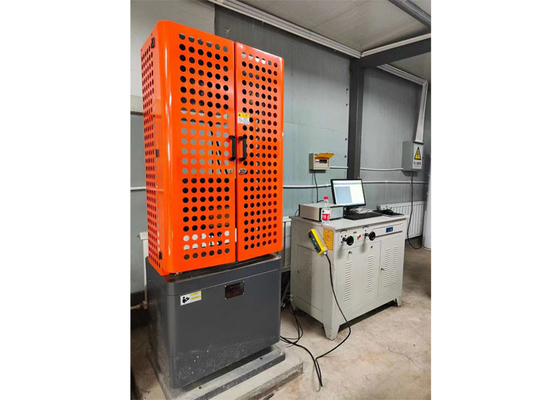

Hydraulic Universal Testing Machine Traction for the Reinforcing Bars and Compression for the Cubic Concrete Specimens
Product introduction:
Hydraulic Universal Testing Machine Traction for the Reinforcing Bars and Compression for the Cubic Concrete Specimens can conduct mechanical property test and analysis of various metal, non-metallic and composite materials.
Widely used in aerospace, petrochemical industry, machinery manufacturing, vehicle manufacturing, wire and cable, textile fiber, plastic and rubber, ceramic building materials, food, pharmaceutical packaging, metal materials, construction engineering and other industries.
As well as higher learning universities, research institutes, technical supervision, quality inspection stations and other departments;
According to GB, ISO, ASTM, JIS, bending, bending, DIN standards, shear, tear, puncture, breaking and various high and low temperature test, The yield strength, tensile strength (pressure, bending) strength, elongation rate, constant extension strength, non-proportional strength, elastic modulus and other parameters of the material can be detected.
Price advantage:
We increase our own research and development efforts, built processing center, produce the core parts independently, so we could reduce link costs with the same quality. Our good quality products could save you much more than some other low price but bad quality products. Reducing the failure rate of the machine to reduce the customer's maintenance costs, but also improve the efficiency of the machine, this price with high quality could give customers real benefits.
Meet Standards:
ISO 6892, ISO 6934 BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
Main technical parameters:
| Model |
WAW-600G |
| Structure |
4 columns and 2 screws |
|
Control way
|
loading process manual control,computer automatic data dealing |
| Max.load (kN) |
600kN |
| Load accuracy |
≤±0.5% |
| Load range |
2%-100%FS |
| Isokinetic stress control range |
2-60 (N/mm2•S-1) |
| Stress rate error |
≤±0.5% |
| Load resolution |
1/600000 |
| Deformation Measurement Range |
2%～100%FS |
| Deformation accuracy |
≤±0.5% |
| Displacement resolution (mm) |
0.01 |
| Displacement error |
≤±0.5% |
| Max.piston stroke(mm) |
250 |
| Max piston moving speed |
0.5-100 mm/min Manual adjustment |
| Crosshead lifting speed |
300mm/min |
| Max. tension test space |
700mm (can customize) |
| Max.Compression Test Space |
600mm (can customize) |
| Clamping method |
Hydraulic clamp |
| Round specimen clamping range (mm) |
φ13-φ40 mm(13-26,26-40) |
| Flat specimen clamping range (mm) |
0-15,15-30 mm |
| Flat specimen clamping width(mm) |
80 |
| Compression plate size (mm) |
200*200 |
| Bending roller distance(mm) |
450 |
| Width of bending rollers (mm) |
120 |
| Power supply |
3-phase,AC380V, 50Hz(can be customized) |
| Weight and size |
2100KG,960mm*750*2270mm |
Packing and Shipping:
Frequently Asked Questions:
Q1. Are your company a trading one or a factory?
A: Factory + trade (ntegration), 18 years focusing on test instnments feld, 14 years export experl ence.
Q2. How to choose the most suitable products?
A: Our professional leam will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification
Q3.what's the dellvery term?
A: At most of time, we have stock in the factory. If there is no stock, normaly, the delivery time is 15-20 working days after deposit receipt
If you are in urgent need, we can consider making special arrangement for you.
Q4.Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request.
Don't hesitate to tell us your requirement we will try our best to meet your needs.
Q5. Can we visit your factory betore order?
A: Yes, we warmly welcome and sincerely invite you or your team to vist our factory, we will help to arrange hotel and pick up you from airpor.
Q6. How about your warranty?
A: Generaly, our waranty is one year witrin the warranty period. we can offer technlque support and part parts change. Necessarily, our engineers may go to your place for better service.
Q7. How about the packing for machine, Is it safely protected during transportation?
A: Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by ar without damage.
