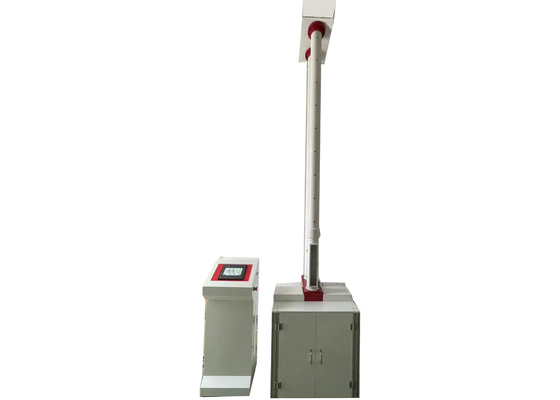

Falling Weight Test Equipment for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings
Application:
Falling Weight Test Equipment for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings adopted PLC control system. Operator can preset the impact height. It also can prevent the secondary impact and lift the hammer to the target height automatically. The height of the hammer is displayed all the time. XJL Drop Hammer Impact Testing Machine is of high reliability and precision. It meets with the technical requirements on ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.
Test Procedure:

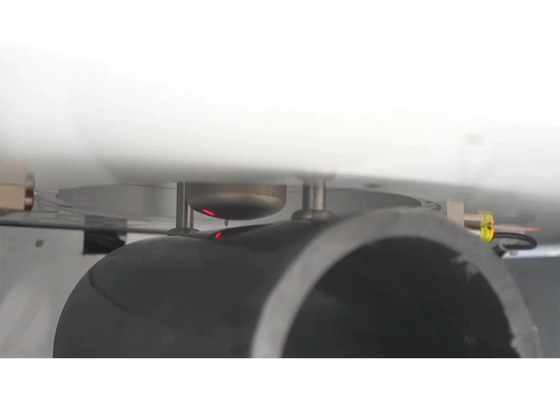

1. Adjust the height of the V-shaped specimen holder by controlling the lifting bar on the side of the foundation, and then put the specimen (pipe) on the holder.
2. Adjusting the height of the specimen (pipe) manually.
3. Adjusting the zero setting automatically.
4. Setting the height of the impact hammer, and lift the hammer to its default height.
5. Drop the hammer.
Conform with standards:
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.
Technical parameter:
| |
XJL-630M |
| Ambient temperature |
10℃-35℃ |
| Hammer(a total of 12 sets) |
Hammerhead A |
2.75kg, 5.4kg, 9.1kg, 13.6kg |
| Hammerhead B |
2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Hammerhead C |
2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Height of the fall |
0mm-3000mm,error≤±2mm |
| Diameter of the sample |
Φ630mm |
| Deviation of impact center from fixture center |
≤2mm |
| Holder |
The flat-plate holder or 120° V-type
|
| source |
220VAC±10% |
| Outline dimension |
730㎜×610㎜× 4850㎜ |
| Net weight |
560kg |
Support and Services:
We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.
We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.
For more information, please contact us at your convenience.
Packing and Shipping:
The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.
The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.
FAQ:
- Q: What is Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
- Q: What is the purpose of Drop Hammer Test Equipment?
- A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
- Q: What products can Drop Hammer Test Equipment be used for?
- A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
- Q: What is the accuracy of Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
- Q: What is the maximum testing force of Drop Hammer Test Equipment?
- A: The maximum testing energy of Drop Hammer Test Equipment is 300J.
