ASTM D2444 Falling Weight Impact Resistance of Thermoplastic Pipe and Fittings
Application:
ASTM D2444 Falling Weight Impact Resistance of Thermoplastic Pipe and Fittings has a V-type supporting of 120° or iron plate support, providing stable and accurate testing conditions. The power supply is AC220V/50Hz, ensuring safe and efficient operation. It comes with three types of hammer diameter, TUP A, TUP B, and TUP C, providing a wide range of impact energies for different testing requirements.

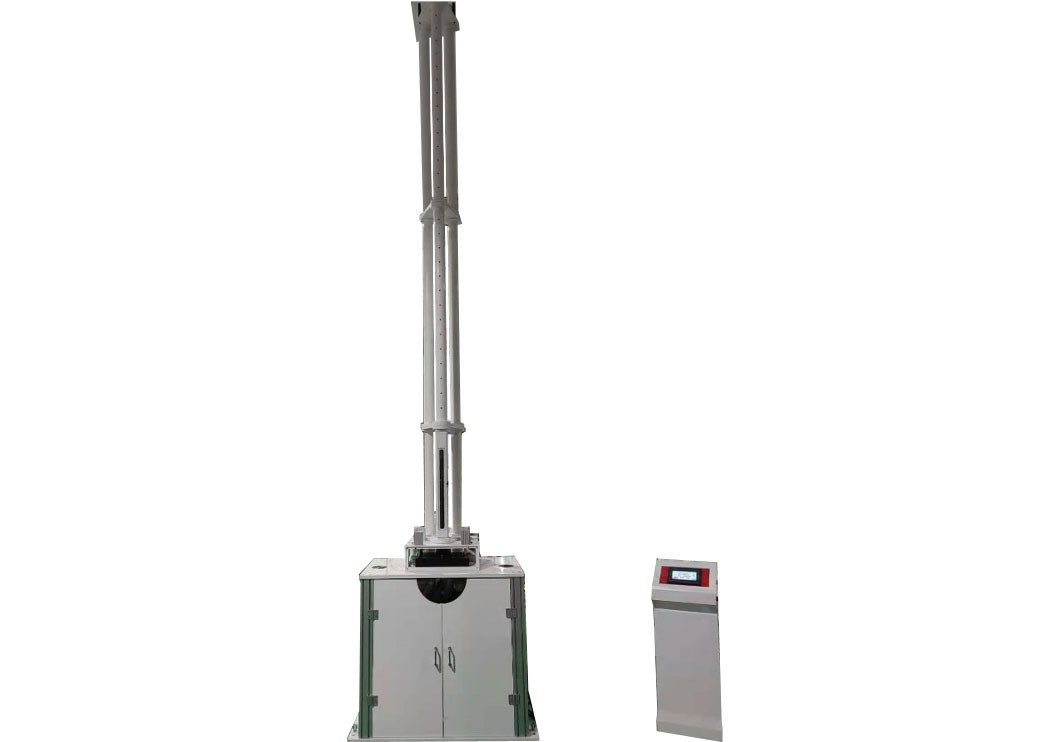

The control part of the JINHAIHU XJL-630 Drop Hammer Test Equipment is controlled by PLC, touch screen operation display, and high degree of automation. The digital preset and display impact height, rising hammer, and drop hammer provide precise and reliable testing results. This Drop Impact Performance Evaluation Tool is ideal for testing materials, components, and products subjected to impact loads, such as automotive parts, electronic components, and aerospace structures.
Conform with standards:
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.
Technical parameter:
| |
XJL-630M |
| Ambient temperature |
10℃-35℃ |
| Hammer(a total of 12 sets) |
Hammerhead A |
2.75kg, 5.4kg, 9.1kg, 13.6kg |
| Hammerhead B |
2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Hammerhead C |
2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Height of the fall |
0mm-3000mm,error≤±2mm |
| Diameter of the sample |
Φ630mm |
| Deviation of impact center from fixture center |
≤2mm |
| Supporting |
120° V-type or Iron plate |
| source |
220VAC±10% |
| Outline dimension |
720㎜×600㎜× 4750㎜ |
| Net weight |
550kg |
Support and Services:
We offer comprehensive technical support and service for our Drop Hammer Test Equipment. Our team of engineers and technicians can provide expert assistance with installation, maintenance, troubleshooting, calibration, and more. We can also provide custom solutions to meet your specific needs.
We are committed to providing the highest level of customer service and support. Our team is available 24/7 for any questions or concerns.
For more information, please contact us at your convenience.
Packing and Shipping:
The Drop Hammer Test Equipment will be securely packaged in a wooden crate for shipping. The box will contain the equipment, instructions, and any additional parts or accessories. Additionally, the box will be labeled with the equipment name, model, and serial number.
The shipping process will include all necessary paperwork such as an invoice, packing list, and any other documents required for international shipping. The shipping cost will be determined based on the destination and type of shipment.
FAQ:
- Q: What is Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment is a testing equipment manufactured by JHH in Beijing, China, which is used to measure the impact resistance of objects.
- Q: What is the purpose of Drop Hammer Test Equipment?
- A: The purpose of the Drop Hammer Test Equipment is to measure the impact resistance of objects in order to ensure product quality.
- Q: What products can Drop Hammer Test Equipment be used for?

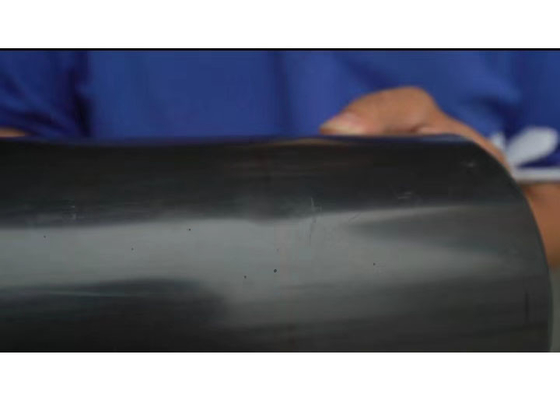

- A: Drop Hammer Test Equipment can be used for all kinds of pipe (PVC-U water supply pipe, sewage pipe, sewage pipe, low pressure water supply pipe, low pressure transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe), and also suitable for hard plastic plate.
- Q: What is the accuracy of Drop Hammer Test Equipment?
- A: Drop Hammer Test Equipment has an accuracy of up to 0.5%.
- Q: What is the maximum testing force of Drop Hammer Test Equipment?
- A: The maximum testing energy of Drop Hammer Test Equipment is 300J.
